Description

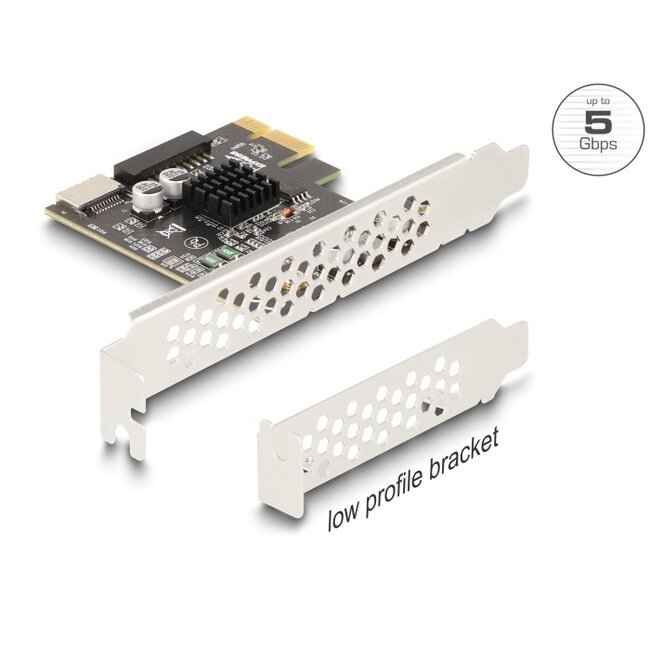

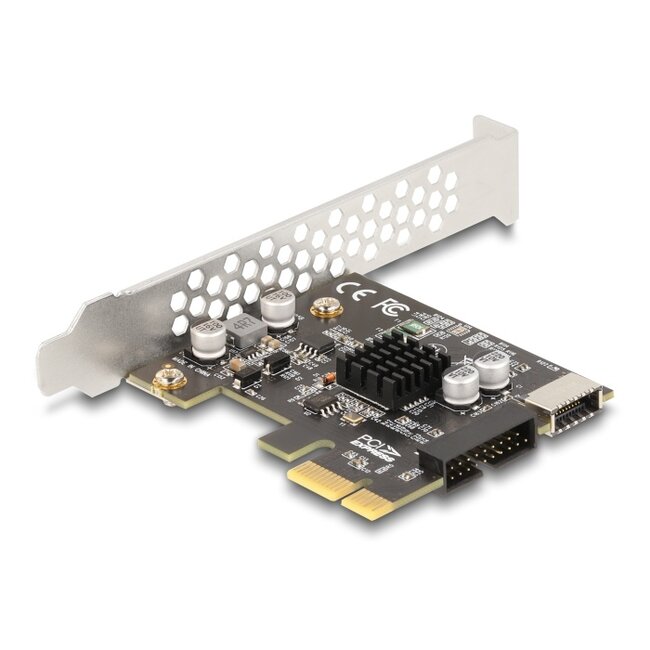

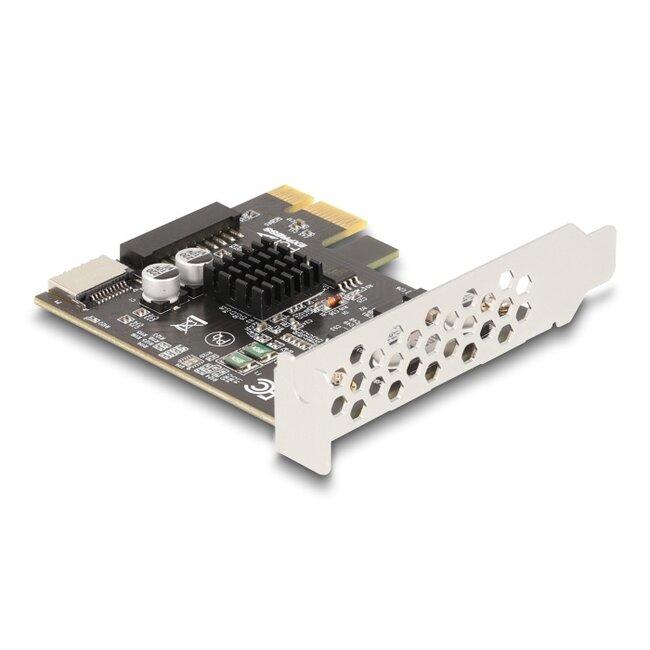

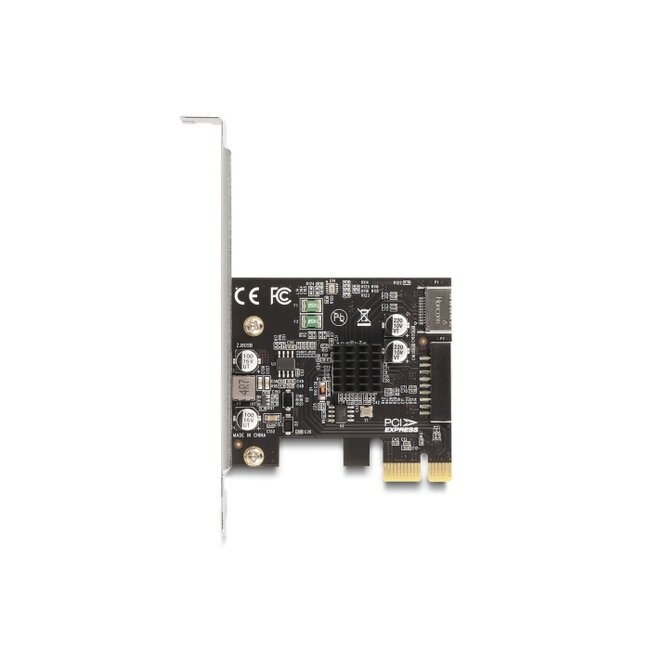

This PCI Express card by Delock expands the PC by one internal USB 5 Gbps Type-E key A female port and one 19 pin USB pin header male. Various cables can be connected to the card, to provide either one USB Type-C™ or one USB Type-A interface.
Power supply via PCI Express interface
The card does not need an additional power supply. The power is supplied exclusively via the PCI Express interface.
Specification
• Connectors:
internal:
1 x USB 5 Gbps type-E Key A female
1 x 19 pin USB 5 Gbps pin header male
1 x PCI Express x1, V3.0
• Chipset: VIA VL805
• Data transfer rate up to 5 Gbps
• Power supply via PCI Express interface
• Supports eXtensible Host Controller Interface (xHCI) specification 1.1
• Compliant with USB Attached SCSI Protocol (UASP) Rev. 1.0
• Bootable
System requirements
• Linux Kernel 6.2 or above
• Windows 10/10-64/11
• PC with one free PCI Express slot
Package content
• PCI Express card
• Low profile bracket
• User manual
