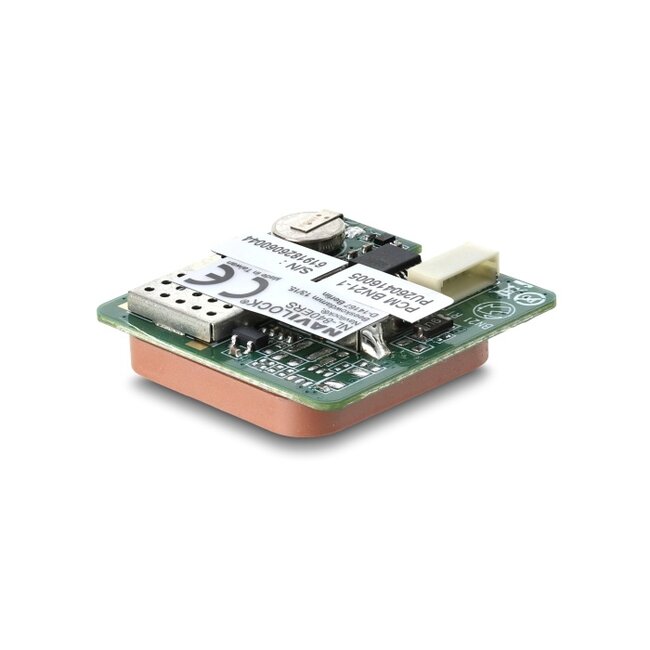

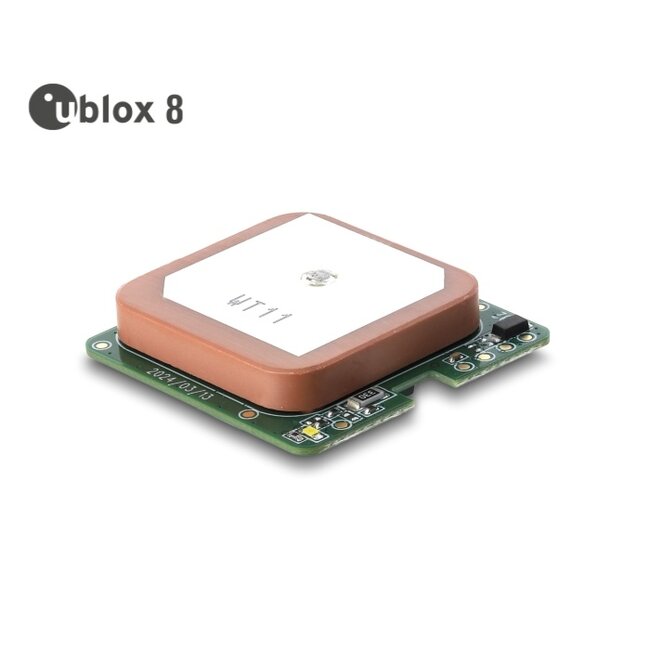

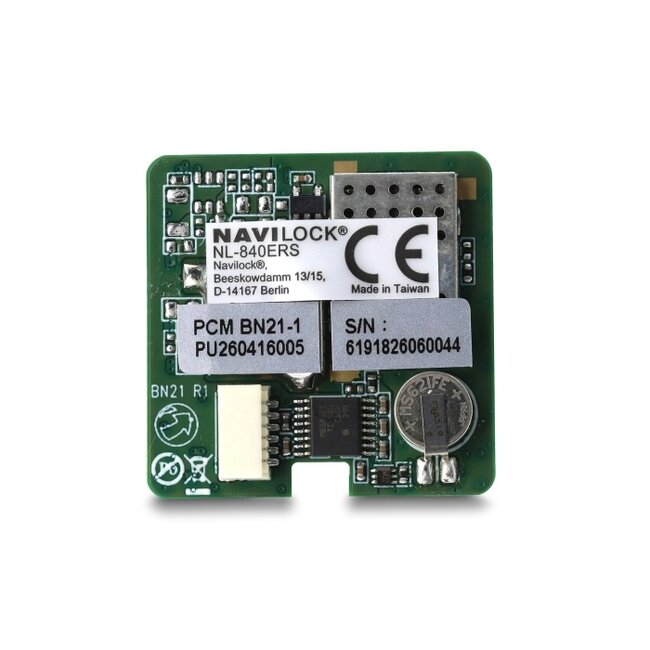

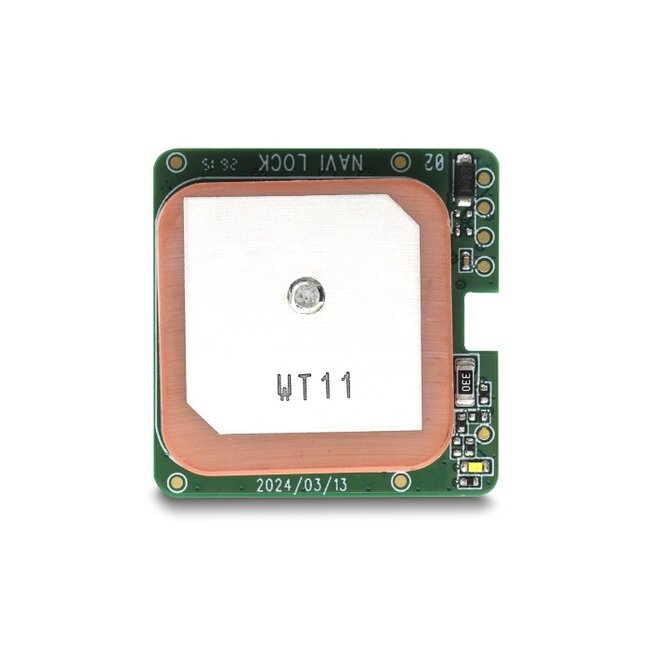

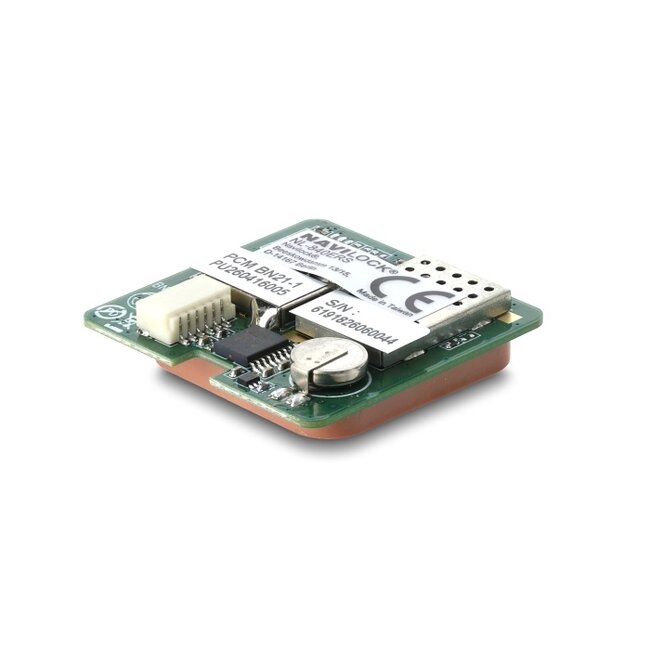

GNSS modules are fully assembled receiver with patch antenna, backup battery etc. This version uses RS-232.
Specification• Connector: WTB serial RS-232, 6 pin, pitch 1.0 mm
• Chipset: u-blox 8 EVA-M8Q
• Frequency:
GPS: L1, 1575.4200 MHz
GLONASS: L1, 1602 (k x 0.5625) MHz
BEIDOU COMPASS: B1, 1561.0980 MHz
GALILEO: E1, 1575.4200 MHz
QZSS: L1, 1575.4200 MHz
• Accepts the signals of up to 72 satellites at the same time
• Supports AssistNow online / offline, SBAS (WAAS, EGNOS, QZSS and MSAS)
• Supports NMEA 0183 protocols: GGA, GSA, GSV, RMC, VTG
• Baud Rate: 9600 - 115200 bps (9600 bps default)
• Update rate:
single GNSS: 18 Hz (e.g. GPS solo)
multi GNSS: 10 Hz (e.g. GPS+GLONASS)
• Sensibility: max. -164 dBm
• LED-indicator for GPS status
• Operating temperature: -10 °C ~ 50 °C
• Power supply: 5 V DC
• Current consumption: max. 45 mA
• Cold start in ca. 26 seconds
• Hot start in ca. 1 second
• Positioning accuracy: 2.5 m CEP (Circular Error Probable) and 2 m CEP with SBAS
• Dimensions (LxWxH): ca. 30.0 x 30.0 x 7.9 mm
• Device with one free RS-232 port
Package content
• GNSS engine module
