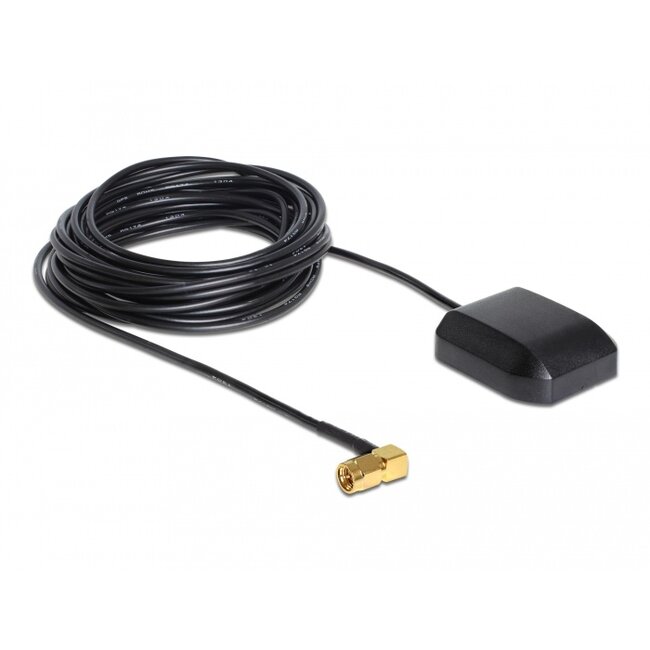

Use this antenna to your GNSS equipment to receive GPS and GLONASS signals simultaneously.
Specification• External active additional antenna for GPS/GLOANSS receiver
• Connector: SMA plug 90°
• Frequency range:
GPS: 1575.42 MHz +/- 3.00 MHz
GLONASS: 1602 MHz +/- 8 MHz
• Bandwidth:
GPS > 8 MHz
Glonass > 16MHz
• internal patchantenna: 25 x 25 x 4 mm
• VSWR: 1.5
• Gain: 5 dBic (7 cm x 7 cm ground plane)
• Polarisation: RHCP
LNA
• Gain: 30 dB
• Voltage: 2.8 ~ 5.0 V
• VSWR: 1.5 typ.
• Noise figure: 1.5 @ 25°C +/- 10 °C
• SMA plug: brass gold plated
• SMA contact: gold plated
• Cable type: RG-174
• Impedance: 50 Ohm,
• Cable length: 5 m
• Cable attenuation: 5.70 dB
• Current: typ. 13.50 mA @ 3.0 V
• Protection class: IP66
• Weight: 0.150 kg
• GNSS antenna
