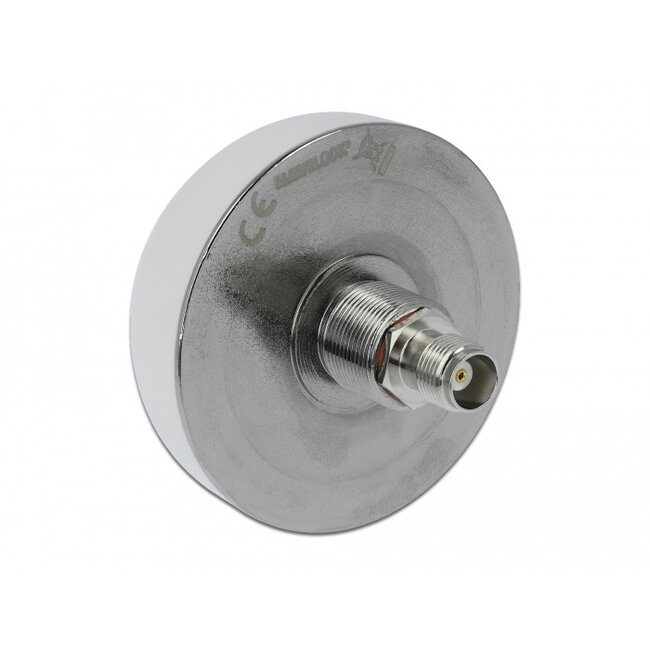

Navilock NL-250GG Multi GNSS GALILEO GLONASS GPS antenna TNC active outdoor
€84,99 Incl. btw
Toevoegen aan winkelwagen
Navilock NL-250GG Multi GNSS GALILEO GLONASS GPS antenna TNC active outdoor

Navilock NL-250GG Multi GNSS GALILEO GLONASS GPS antenna TNC active outdoor

€84,99 Incl. btw
3-5 werkdagen

Productomschrijving

Description

This antenna by Navilock can be used on GNSS devices to receive GPS, GLONASS and GALILEO satellite signals at the same time.

Specification

• Connector:
1 x TNC jack
• GNSS:
Frequency range:
Galileo: L1 1,5754200 GHz
GPS: L1, 1.5754200 GHz
GLONASS: L1, 1.6025625 - 1.6155000 GHz
Antenna Gain: 4 dBic
VSWR: 1.5
Impedance: 50 Ohm
Polarisation: RHCP
• LNA:
Frequency range:
Galileo: L1, 1,5754200 GHz
GPS: L1, 1.5754200 GHz
GLONASS: L1, 1.6025625 - 1.6155000 GHz

Operating voltage: 2.7 V - 10.0 V
Gain: 40 dB
Impedance: 50 Ohm
Current consumption: 25 mA
VSWR: 2.0
• Mounting type: screw mounting
• Housing colour: white
• Housing material: ABS
• Protection class: IP67
• Suitable for outdoor: yes
• Operating temperature: -40 °C ~ 85 °C
• Diameter: 66.5 mm
• Height: 46 mm
• Thread type: M18
• Surge protection: 15 kV

Package content

• GNSS antenna
• 1 x rubber seal
• 1 x Washer
• 2 x Nuts
