Description The Keystone system knows no limits when it comes to installation. Take advantage of the modular connection system for standardised connectors and rectangular module receptacles (ports) in 14.9 × 17.0 mm pitch. The Snap-in system enables a wide variety of connection techniques, e.g. with coaxial sockets for IEC or F connectors, RJ45 jack sockets (CAT 5, CAT 6, CAT 6A), loudspeaker connectors (RCA sockets, screw and clamp connectors) as well as USB, fibre-optic and HDMI™ jack sockets. The Keystone modules can be universally applied and interchanged.

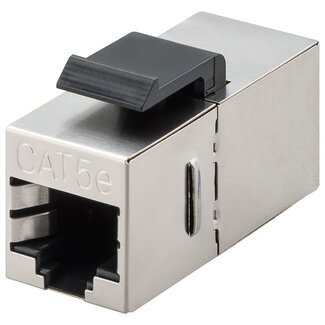

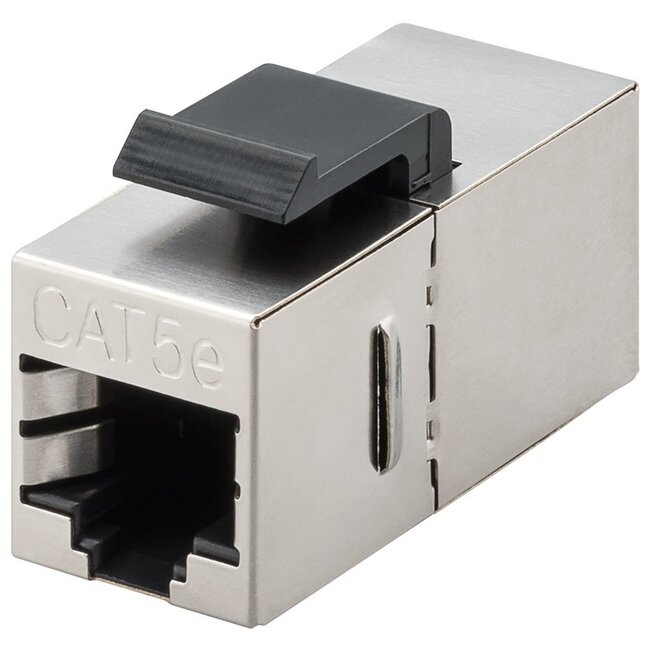

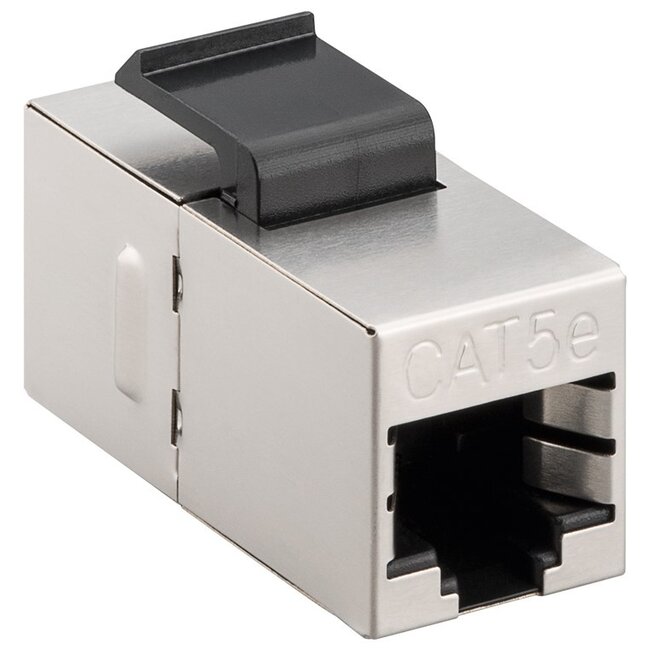

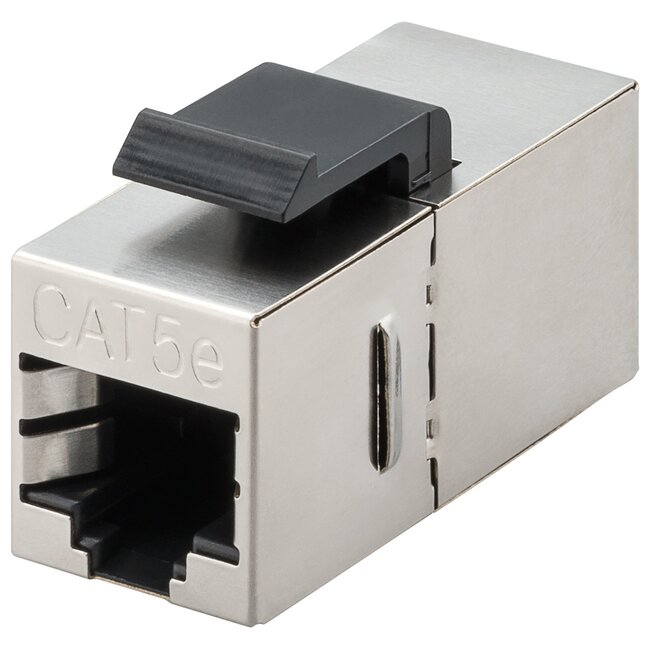

Features - RJ45 coupling for extending and connecting 2x network cables with RJ45 plugs
- For easy snap-in mounting in Keystone patch panels with up to 24 ports, Ethernet wall sockets and surface-mount boxes. Suitable for 19.2 x 14.9 mm Keystone ports.
- Ethernet coupler with a robust metal housing and STP shield for a perfect transmission of electrical signals
- Commonly used in network installations and for the assembly of permanently installed network cables
- RJ45 jack sockets are suitable for PoE+ according to IEEE 802.3at
- Commonly used in network installations and for the assembly of permanently installed network cables
- RJ45 connections with 1:1 pin assignment
