Description One system, all connectors: With the modular Keystone connection system, you can quickly and flexibly install any connector in empty housings, network sockets or patch panels. Whether RJ45, HDMI, USB or satellite antenna – there is always the right Keystone connector for the standardised module ports (14.9 x 17.0 mm). Choose the tool-free and easy snap-in installation system. You'll always be one ‘click’ ahead of the cable clutter.

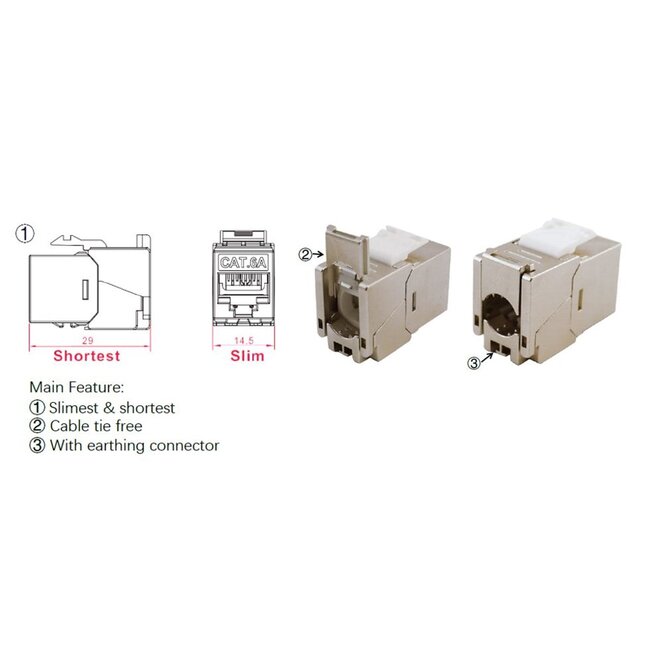

Features - CAT 6A Keystone module in a slim design and 14.5 mm wide for space-saving installation in patch panels – no longer lack of space when inserting several modules next to each other
- With a length of only 29 mm, the module reduces the depth required on the back of the panel – handy in network cabinets and environments where cables must not protrude excessively

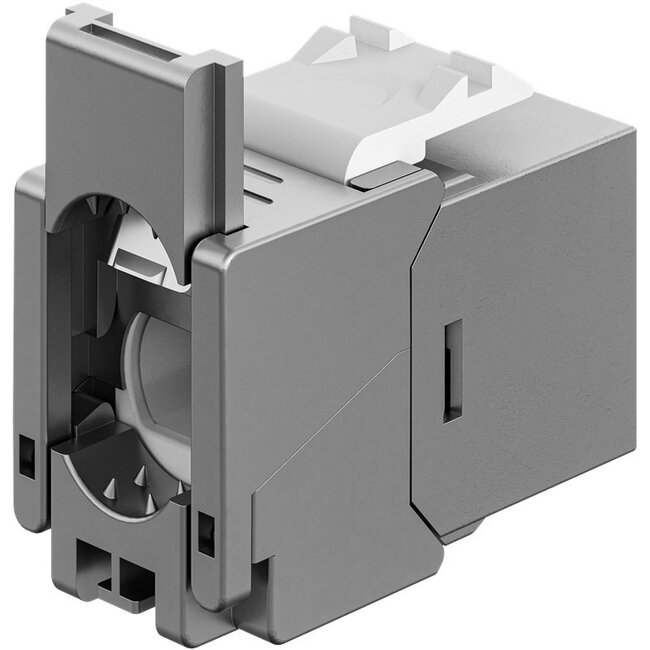

- Quick and easy installation without cable ties: After closing the module, simply and effortlessly press the rear cover down (TIA 568A/B colour-coded insulation displacement connector)
- The module is suitable for Power over Ethernet (PoE+) in accordance with IEEE 802.3at and supports 10 Gigabit Ethernet applications at 500 MHz

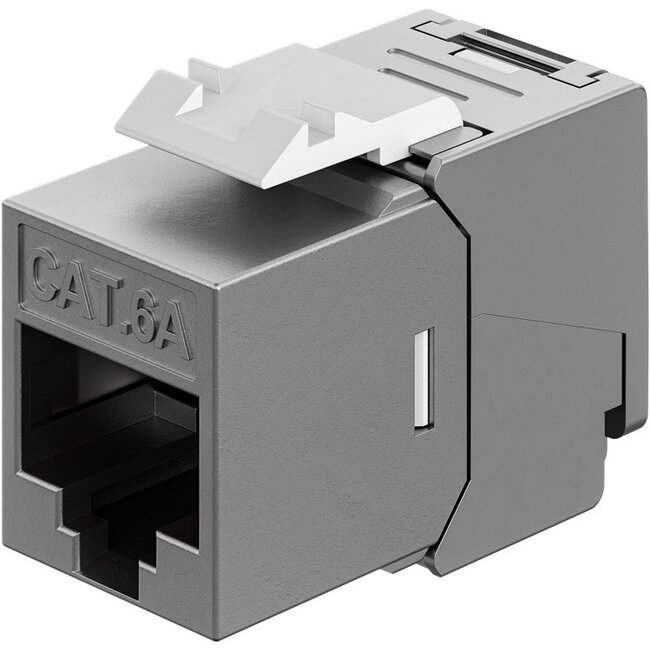

- STP-shielded RJ45 coupling with robust die-cast zinc housing for the flawless transmission of network signals
- The module is suitable for Power over Ethernet (PoE+) in accordance with IEEE 802.3at and supports 10 Gigabit Ethernet applications at 500 MHz
- The RJ45 socket for field assembly is suitable for solid and stranded wire
