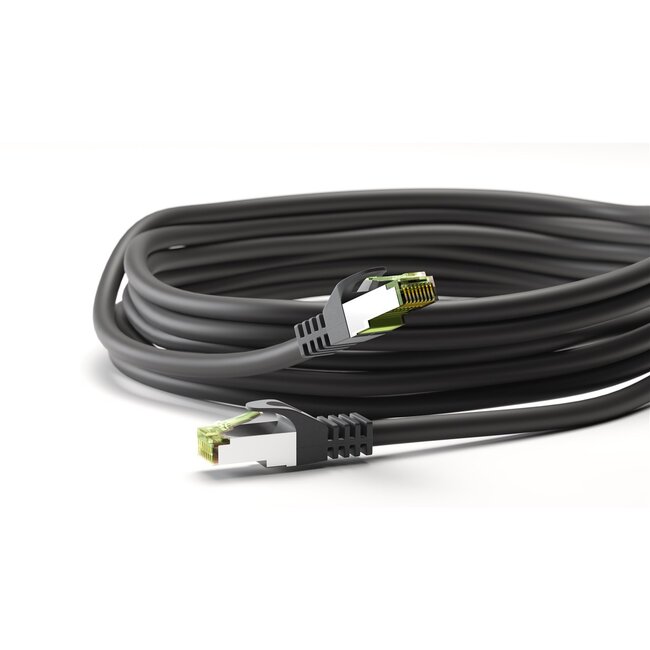

Description Reliable performance of the patch cable in CAT 8.1 channels is best ensured when combined with the GHMT-certified components listed below.Cable transmission characteristics were tested in a 2-connector channel over a transmission distance of 24 m for compliance with the specifications for Class I up to 2 GHz according to ANSI/TIA-568.2-D (2018-09): 2 Connector Channel Copper, Class I up to 2 GHzGHMT Type Approval Balanced cord: Wentronic GmbH CAT 8 patch cordPart no.: CAT 8.1 - 0.25 m S/FTP PiMF blackCertified patch cables: 61091, 61092, 61093, 61094, 61095, 61102, 61103, 61104, 61105, 61106, 61113, 61114, 61115, 61116, 61117Certified installation cables: 61126, 61127, 61128Certified Keystone coupler: 61129

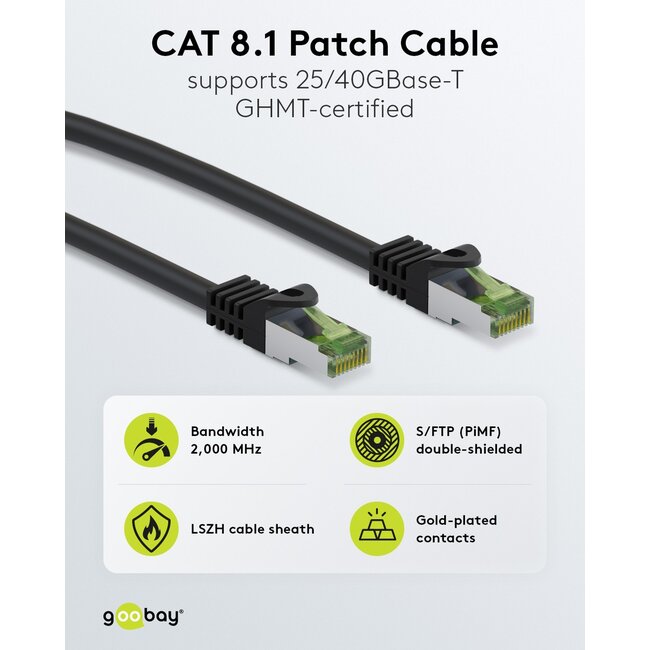

Features - The 0.25 m LAN cable supports 25GBase-T and 40GBase-T Ethernet networks (40-gigabit capable) and is backwards compatible with 10BASE-T, 100BASE-TX and 1000BASE-T.
- With a transmission bandwidth of up to 2,000 MHz, the Ethernet cable has 4 times the bandwidth of a CAT 6A cable.

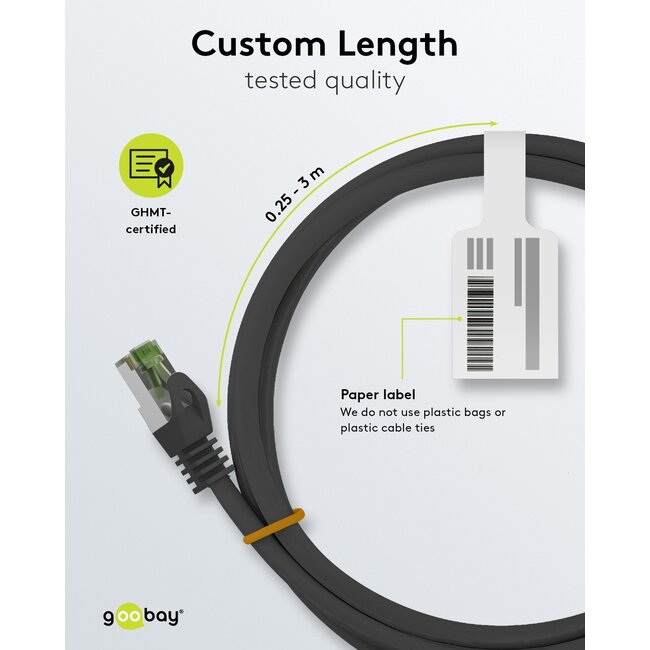

- GHMT-certified for a transmission distance of 1x 24 m installation cable plus 2x 3 m patch cord in a 2-connector channel (8.1 Standard Class I with an operating frequency of up to 2 GHz)

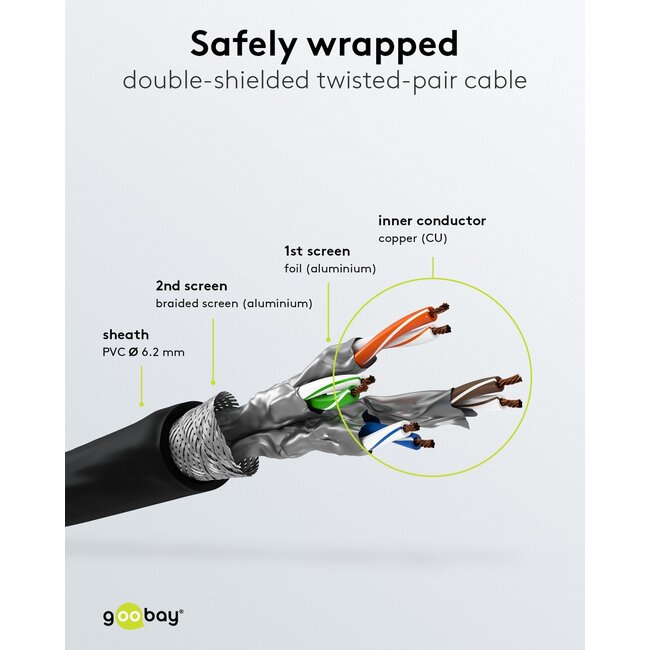

- S/FTP overall shield: aluminium foil shield for individual wire pairs (PiMF) and aluminium braid shield for the cable sheath

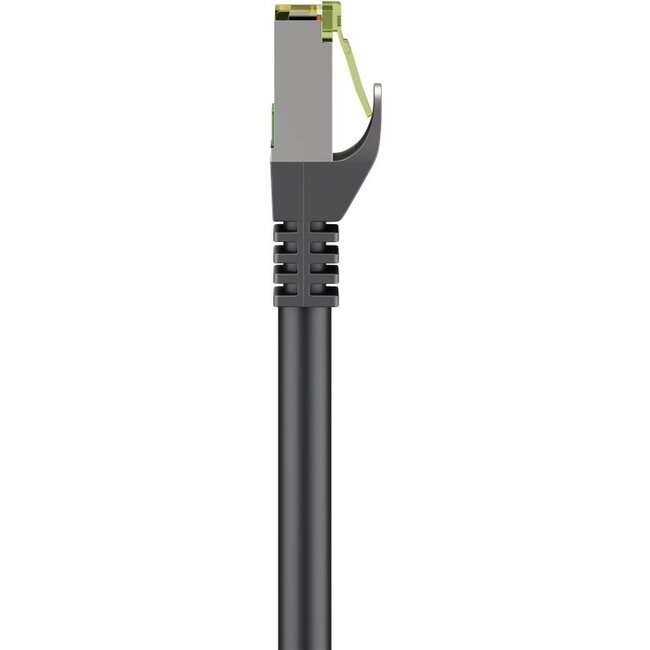

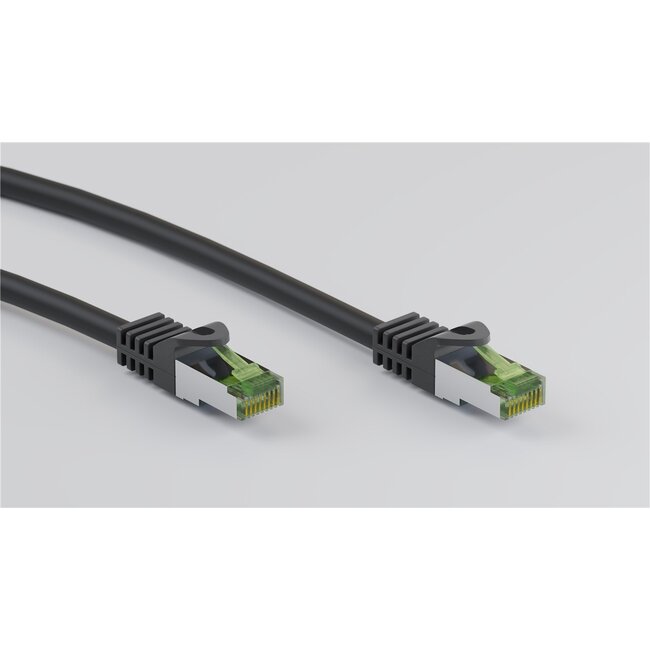

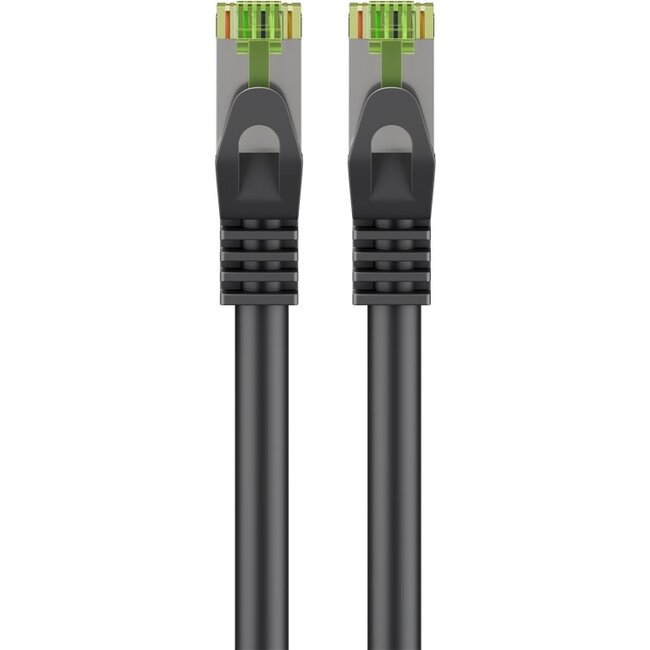

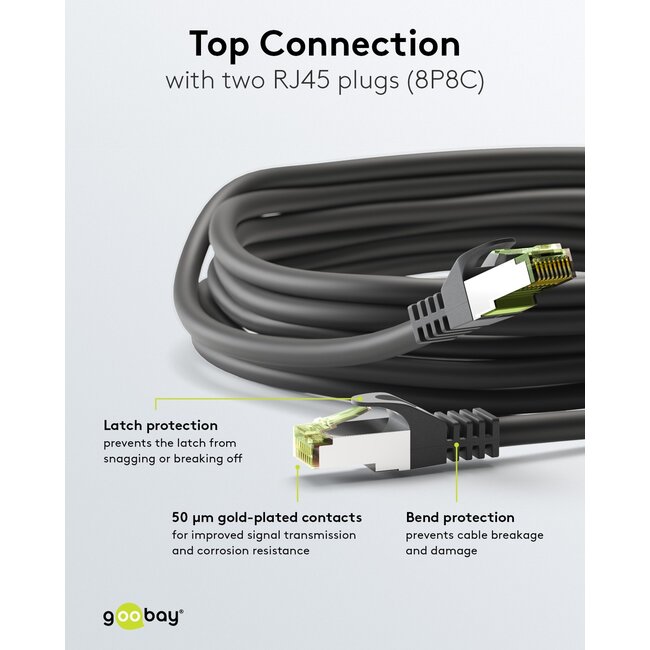

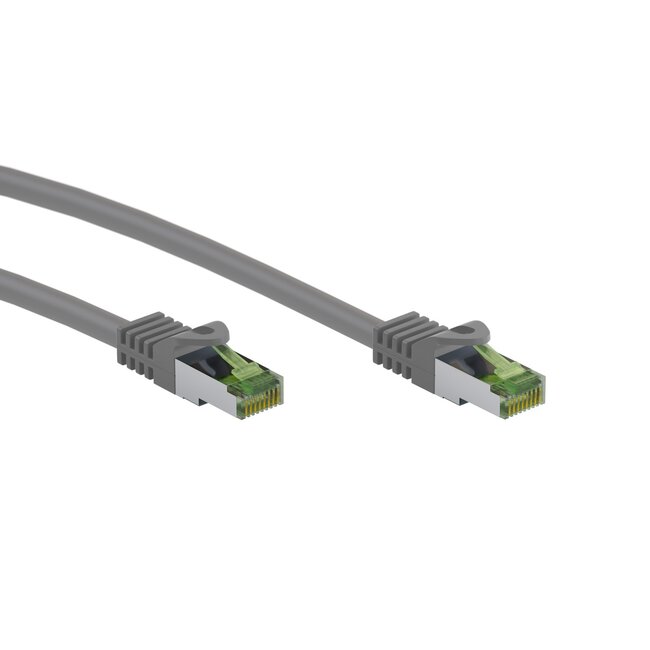

- Assembled on both ends with RJ45 connectors (8P8C) with 50 μm gold-plated contact surfaces and latch protection.
- S/FTP overall shield: aluminium foil shield for individual wire pairs (PiMF) and aluminium braid shield for the cable sheath
- Low-smoke and halogen-free LSZH cable sheath
