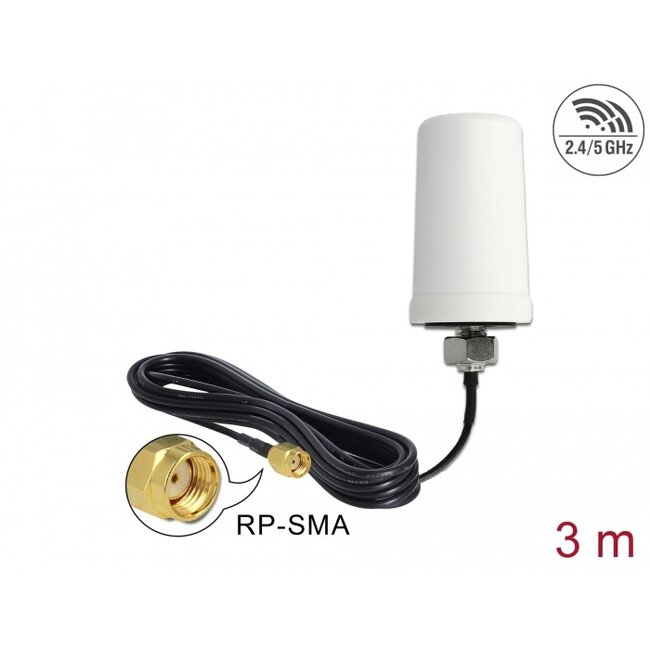

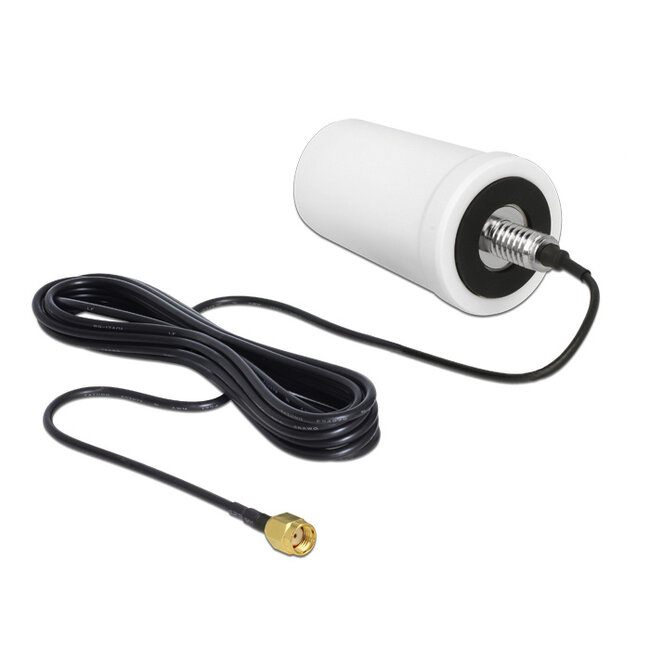

This Delock WLAN antenna can be installed outdoors or indoors and take advantage of all two bands for WLAN.
Specification• Connector: RP-SMA plug
• Frequency range:
2400 - 2500 MHz
5150 - 5875 MHz
• Antenna gain: 0 dBi
• Impedance: 50 Ohm
• Polarisation: linear vertical
• VSWR: 2.0 - 2.5
• Operating temperature: -10 °C ~ 50 °C
• Protection class: IP67
• Screw mounting 13 mm central hole
• Colour: white
• Dimension: (L x W x H): ca. 77 x 45 x 45 mm
• Cable category: coaxial
• Cable type: ULA100
• Cable attenuation:
1.40 dB @ 2500 MHz per meter
2.30 dB @ 5875 MHz per meter
• Cable diameter: 2,79 mm
• Cable length incl. connector: ca. 3 m
• Device with RP-SMA jack
Package content
• WLAN antenna

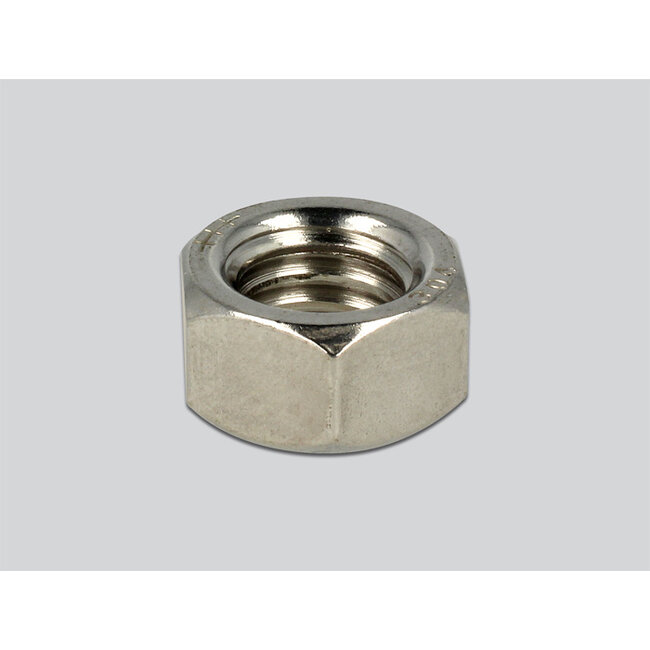

• Screw nut
