This antenna by Delock allows the usage of the 2.4 GHz band indoors and outdoors. It is completely compatible to Bluetooth, WLAN 2.4 GHz, ZigBee 2.4 GHz and ISM 2.4 GHz.
Specification• Connector: 1 x SMB plug
• Bluetooth, WLAN 2.4 GHz, ZigBee 2.4 GHz, ISM 2.4 GHz
• Frequency range: 2.4 - 2.5 GHz
• Antenna gain: 2 dBi
• Impedance: 50 Ohm
• VSWR: 2.0
• Polarisation: linear
• Operating temperature: -40 °C ~ 85 °C
• Colour: black
• Cable: coaxial
• Cable type: RG-174
• Cable colour: black
• Cable diameter: ca. 2.7 mm
• Cable attenuation: 1.5 dB @ 1.5 GHz per meter
• Smallest bending radius: 10.5 mm
• Cable length incl. connectors: ca. 1.5 m

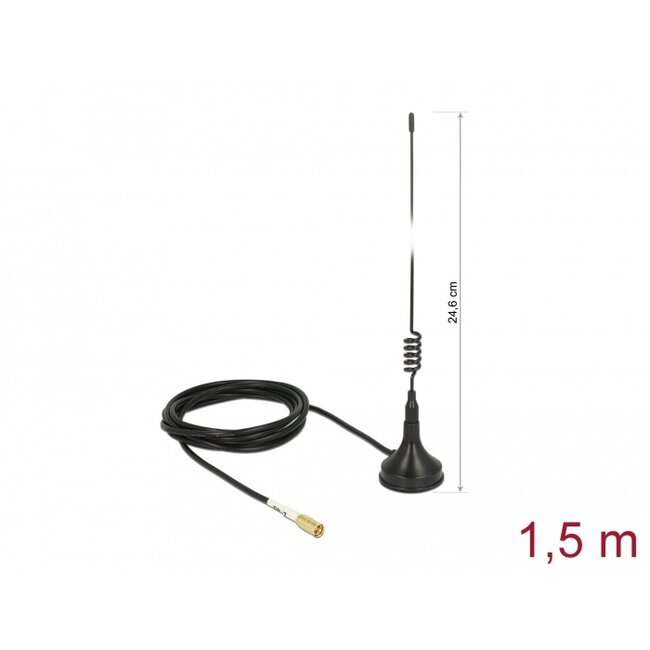

• Antenna length including magnetic base: ca. 24.6 cm
• Diameter magnetic base: ca. 29.5 mm
• Device with a free SMB jack
Package content
• Antenna
