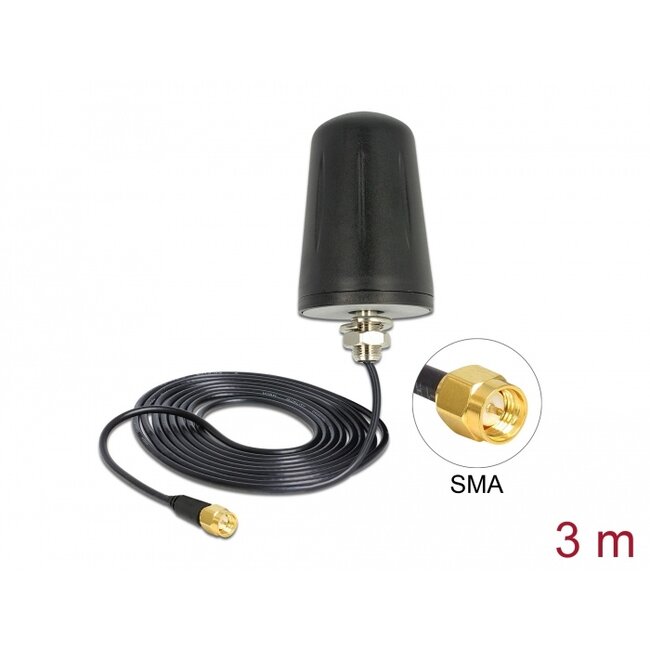

This antenna by Delock allows the usage of the 2.4 GHz frequency range indoors and outdoors. It is completely compatible to Bluetooth and ZigBee 2.4 GHz.
Specification• Connector: 1 x SMA plug
• Frequency range: 2.4 GHz - 2.5 GHz
• ZigBee 2.4 GHz, Bluetooth
• Antenna gain: 3 dBi
• Impedance: 50 Ohm
• Polarisation: linear, vertical
• VSWR: 2.0
• Transmission power: 10 W
• Operating temperature: -30 °C ~ 70 °C
• Colour: black
• Housing: ABS UV resistant
• Screw mounting with 13.5 mm hole diameter
• Thread length: ca. 18 mm
• Protection class: IP67
• Cable: coaxial
• Cable type: RG-174
• Cable color: black
• Cable loss: ca. 1.5 dB @ 1.5 GHz per meter
• Cable diameter: ca. 2.7 mm
• Cable length incl. connector: ca. 3 m
• Dimensions (LxD): ca. 75.0 x 53.5 mm
• Device with a free SMA jack
Package content
• Antenna
