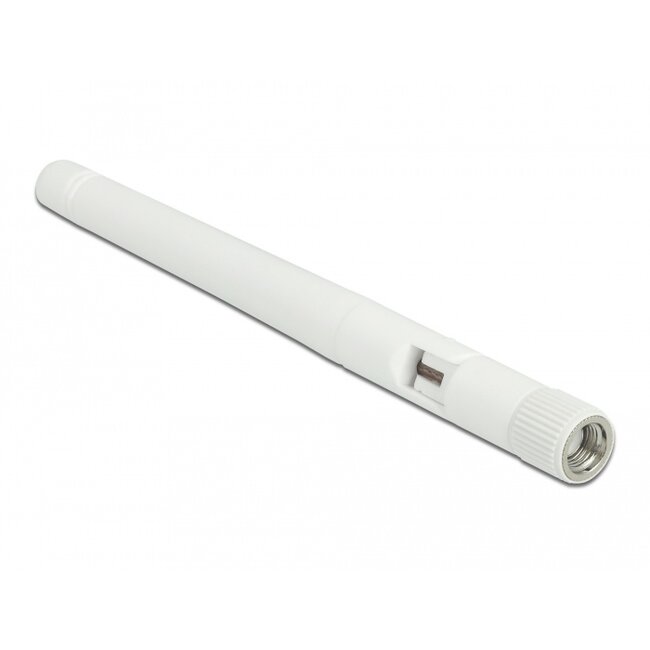

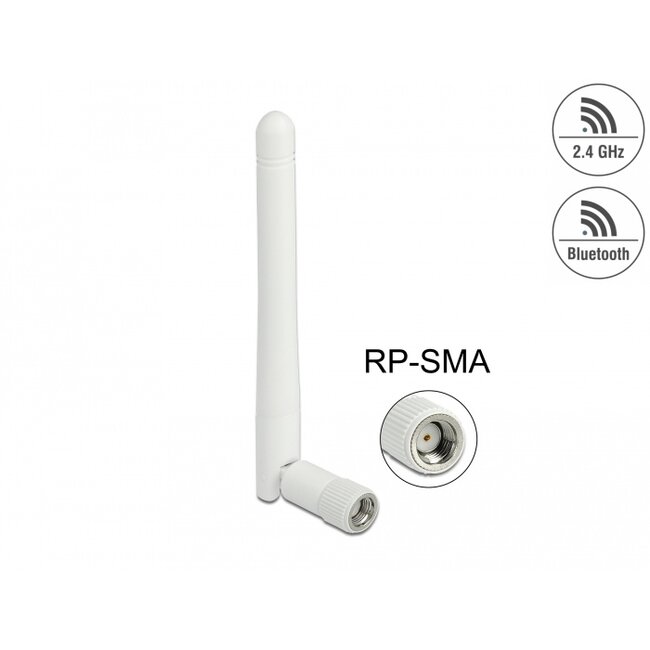

This Wireless LAN antenna can be connected to a WLAN device with RP-SMA interface, in order to send and receive signals.
Specification• Connectors: 1 x RP-SMA plug
• Frequency range: 2.400 - 2.500 GHz
• Antenna gain: 2 dBi
• Impedance: 50 Ohm
• VSWR: 2.0
• Polarisation: linear, vertical
• Operating temperature: -45 °C ~ 85 °C
• Colour: white
• Length:
ca. 108.00 mm (with tilt joint)
ca. 82.50 mm (without tilt joint)
• Diameter:
ca. 7.80 mm (top)
ca. 10.00 mm (RP-SMA)
• Device with a free RP-SMA jack
Package content
• WLAN antenna
