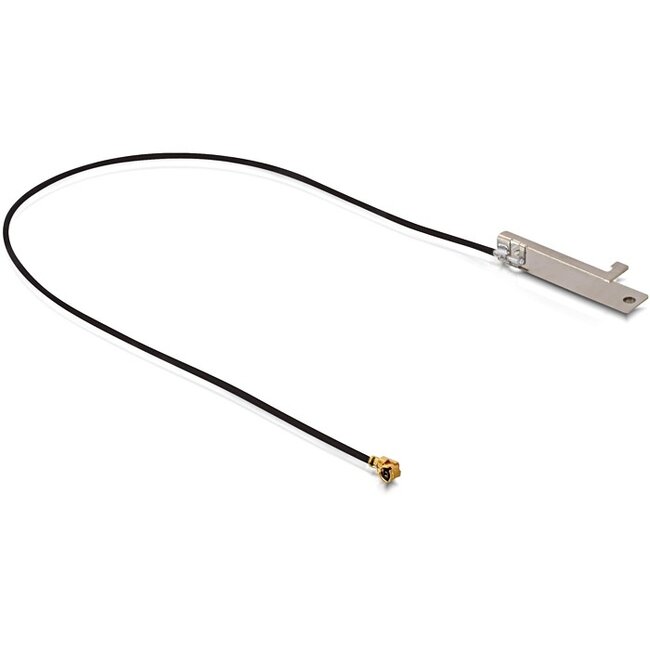

This antenna by Delock allows the usage of the 2.4 GHz WLAN bands indoors.
Specification• Connector: 1 x I-PEX Inc., MHF® I plug
• Frequency: 2400 MHz - 2500 MHz
• WLAN 2.4 GHz, Bluetooth, ISM, ZigBee
• Antenna gain: 3 dBi
• Impedance: 50 Ohm
• VSWR: 2.0
• Operating temperature: -10 °C ~ 55 °C
• Cable type: coaxial
• Cable type: 1.13
• Cable colour: grey
• Cable diameter: ca. 1.13 mm
• Cable attenuation: 3.2 dB @ 2400 MHz per meter
• Smallest bending radius: 4.5 mm
• Dimensions (LxWxH): ca. 23.0 x 6.0 x 5.0 mm
• Length incl. connectors (L): ca. 20 cm
• Device with one free I-PEX Inc., MHF® I port
Package content
• Antenna
