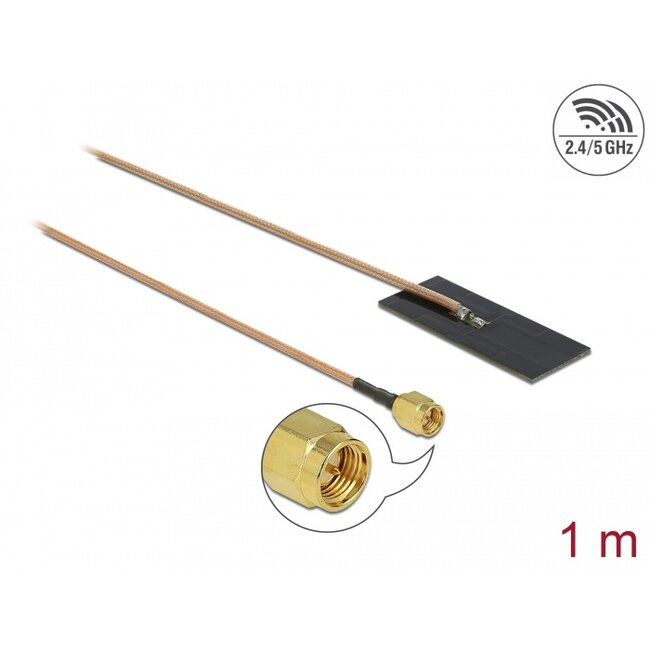

This antenna by Delock allows the usage of the 2.4 GHz + 5 GHz WLAN bands indoors.
Specification• Connector: 1 x SMA plug
• Frequency range:
2400 MHz - 2500 MHz
5150 MHz - 5875 MHz
• Bluetooth, WLAN 2.4 / 5.0 GHz, ZigBee 2.4 GHz, ISM
• Antenna gain: 0.5 - 1.2 dBi
• VSWR: 2.5
• Impedance: 50 Ohm
• Mounting type: self adhesive
• Operating temperature: -10 °C ~ 55 °C
• Housing material: FR4
• Colour: black
• Cable type: coaxial
• Cable type: RG-178
• Cable colour: black
• Cable diameter: ca. 1.8 mm
• Cable attenuation: 2.9 dB @ 2.4 GHz per meter
• Smallest bending radius: 7.5 mm
• Dimensions (LxW): ca. 40.00 x 14.65 mm
• Cable length incl. connector: ca. 1 m
• Device with one free SMA port
Package content
• Antenna
