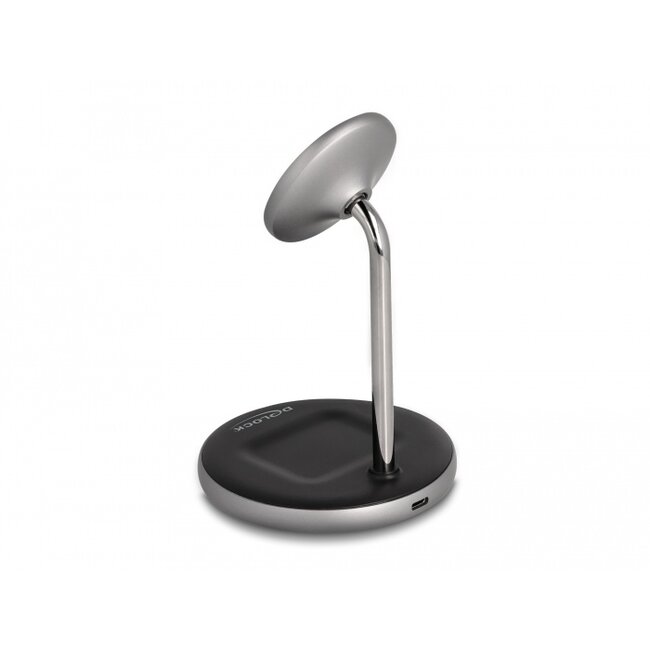

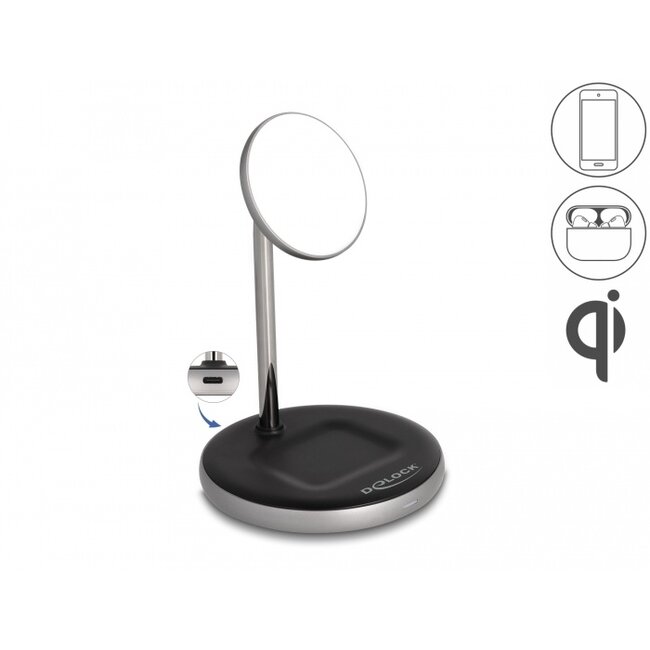

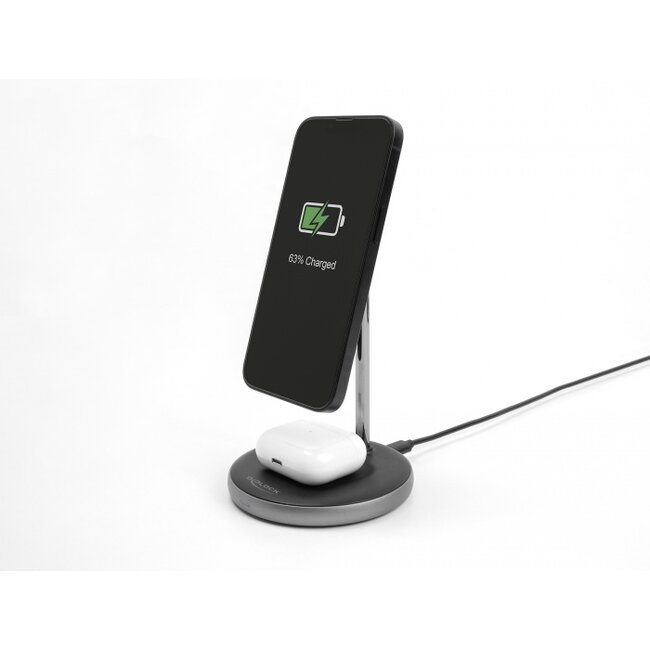

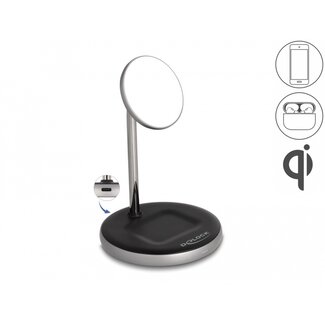

With this Qi certified charging station by Delock a smartphone and another device can be charged wirelessly at the same time. With the energy transfer by induction, charging cables are no longer needed and the connectors are protected. The charger supports fast charging up to 15 watt for suitably equipped smartphones.
Charging surface for headphones
The charging pad in the base of the station provides power up to 5 W and is suitable for devices that support lower reading inductive charging. For example, wireless headphone cases.
Note
The smartphone need to support magnetic holding on the charging station.
• Connector: 1 x USB Type-C™ female
• Input voltage: 12 V
• Output current: up to 1.66 A
• Charging power magnetic smartphone holder: 5.0 V / 1.0 A (5.0 W), 7.5 V / 1.0 A (7.5 W), 9.0 V / 1.12 A (10.0 W), 9.0 V / 1.66 A (15.0 W)
• Charging power stand loading part: 5.0 V / 1.0 A (5.0 W)
• Frequency range: 110 - 148 kHz
• Transmission power: max. 15 W
• 1 x LED for power
• Anti-Slip base
• Operating temperature: 0 °C ~ 25 °C
• Storage temperature: -20 °C ~ 70 °C
• Relative humidity: 5 - 95 % (non condensing)
• Transmission distance: 4 mm with protection case, 6 mm without
• FOD (Foreign Object Detection): yes
• Colour: black / grey / white
• Weight: ca. 278 g
• Dimensions:
stand: diameter ca. 97 mm, height ca. 11 mm
magnetic charging pad: diameter ca. 59 mm, height ca. 19 mm
total height: ca. 153 mm
• Power supply with USB Type-C™ female and
5 V / 2 A (for 5 W charging) or
9 V / 1.66 A (for 7.5 / 10 / 15 W fast charging)
Package content
• Charging cradle

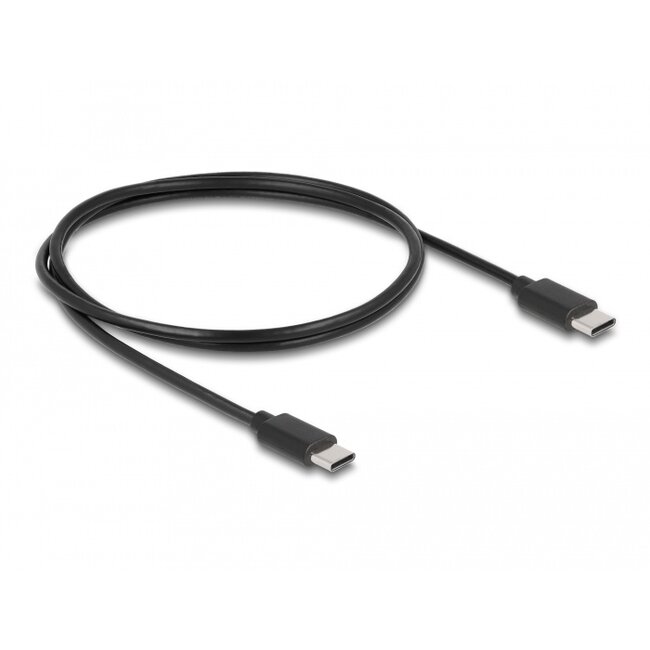

• USB Type-C™ to USB Type-C™ cable, length ca. 1 m
• User manual
