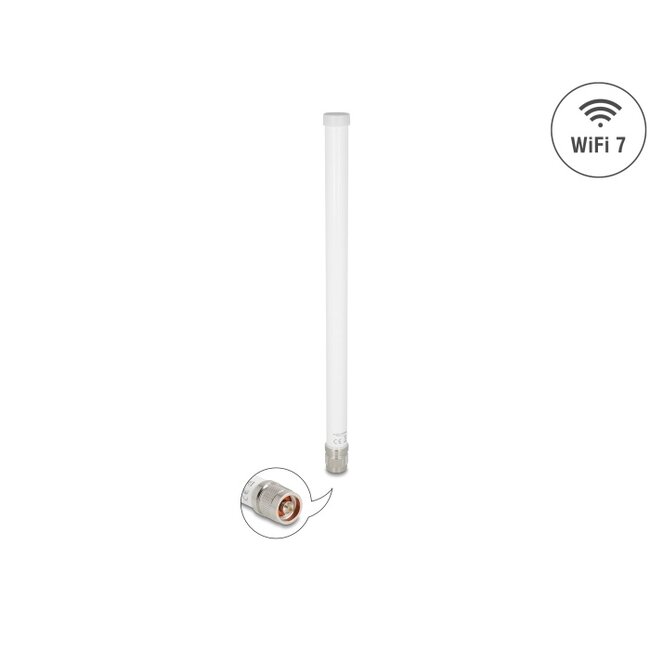

This WLAN antenna by Delock allows the usage of different WLAN bands inside.
WiFi 7
WiFi 7, IEEE 802.11be, is the latest wireless standard and offers significant improvements over previous generations. It is characterised by higher speeds, lower latency and improved stability, especially in environments with many connected devices. WiFi 7 utilises the 6 GHz band for more capacity and introduces new technologies such as Multi-Link Operation (MLO) and 4K QAM. It is backwards compatible and also supports the 2.4 GHz and 5 GHz bands.
• Connector: 1 x N plug
• Frequency range:
2400 - 2500 MHz
5150 - 7125 MHz
• Antenna gain: 4.5 - 6.6 dBi
• Impedance: 50 Ohm
• VSWR: 2.0
• Polarisation: vertical
• Operating temperature: -40 °C ~ 85 °C
• Housing material: GFRP
• Colour: white
• Weight: ca. 150 g
• Dimensions (LxD): ca. 323.5 x 21.0 mm
• Device with a free N port
Package content
• Antenna
