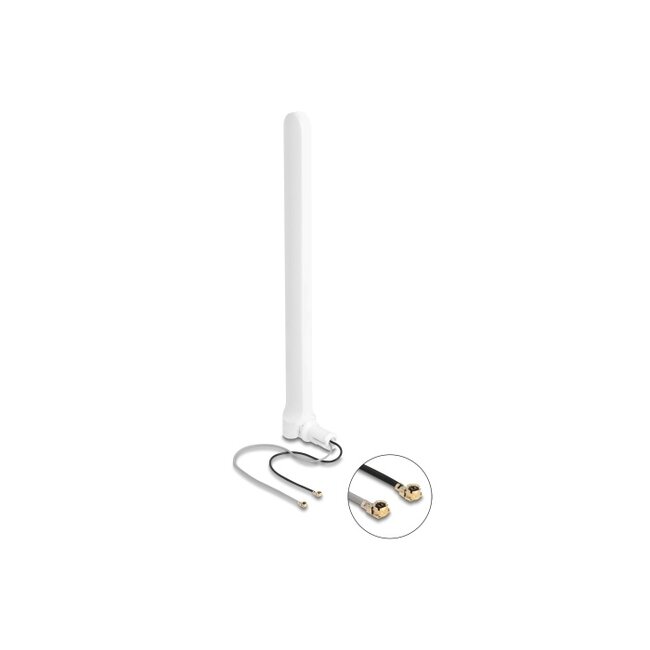

This twin antenna by Delock has two physically separated transmitting and receiving units for WiFi 6 2.4 GHz and 5 GHz. It can be connected to a device with I-PEX Inc., MHF® I interface, in order to send and receive signals indoors.
Specification• Connectors:
2 x I-PEX Inc., MHF® I plug
• Frequency range:
2400 - 2500 MHz (grey)
5150 - 5850 MHz (black)
• Antenna gain: 2 - 5 dBi
• Impedance: 50 Ohm
• VSWR: < 2.5
• Mounting type: through hole mounting
• Operating temperature: -40 °C ~ 60 °C
• Housing material: ABS
• Colour: white
• Cable type: coaxial
• Cable type: 1.13
• Cable colour: black / grey
• Cable diameter: ca. 1.13 mm
• Cable attenuation: 3.2 dB @ 2.4 GHz per meter
• Smallest bending radius: 5 mm
• Cable length incl. connectors:
grey ca. 13 cm
black ca. 10 cm
• Dimensions (LxWxH): ca. 189 x 16 x 9 mm
• Device with two free I-PEX Inc., MHF® I connectors
Package content
• Antenna
