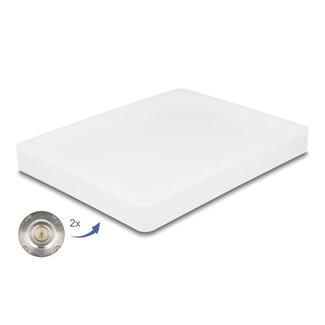

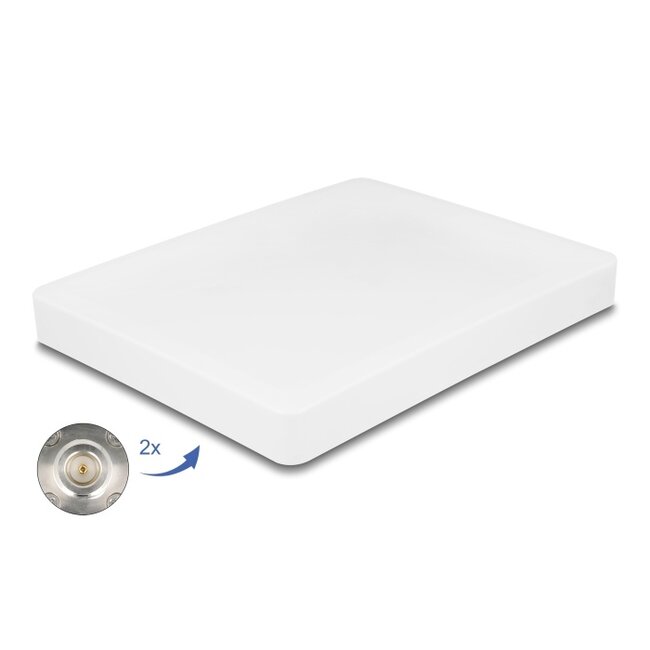

This WLAN antenna by Delock is used for transmitting and receiving signals in accordance with IEEE 802.11 ax/ac/a/h/b/g/n outdoor.

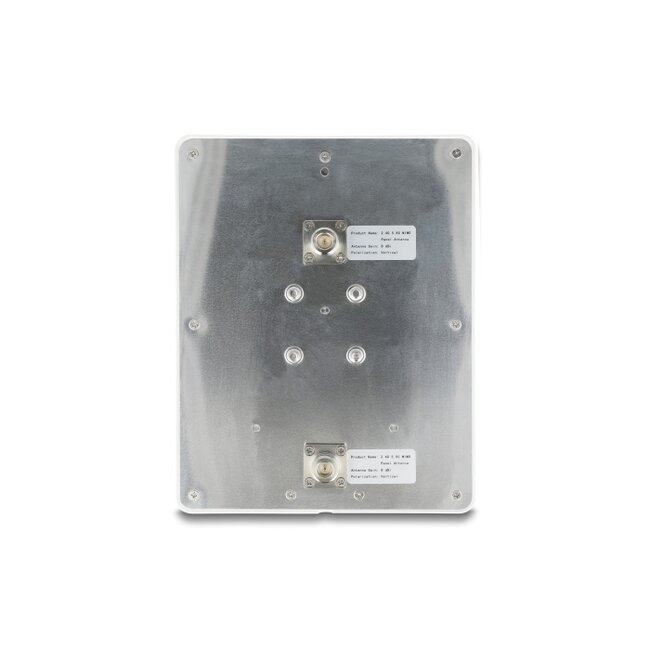

Specification• Connector: 2 x N jack
• Frequency range:
2.400 - 2.500 GHz
5.150 - 5.875 GHz
• Antenna gain: 8 dBi
• Impedance: 50 Ohm
• VSWR: < 2.0
• Horizontal beam angle: 40°
• Vertical beam angle: 38°
• Operating temperature: -40 °C ~ 55 °C
• Housing material: ABS
• Housing colour: white
• Protection class: IP65
• Pole diameter: ca. 35 - 50 mm
• Dimensions (LxWxH): ca. 217 x 173 x 25 mm
• Device with free N connectors
Package content
• WLAN antenna

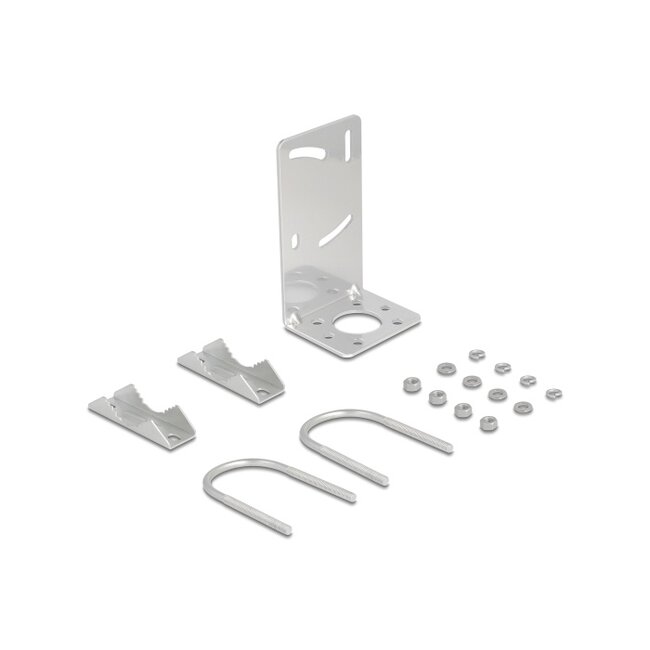

• Pole mounting kit
