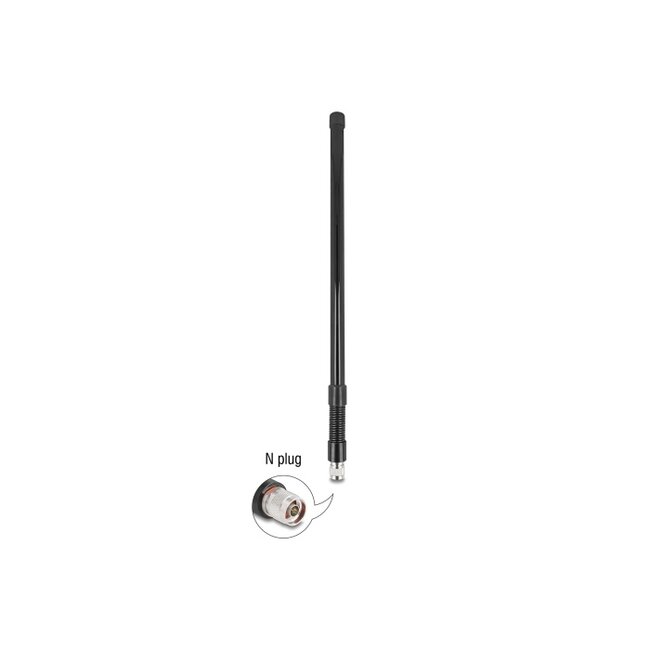

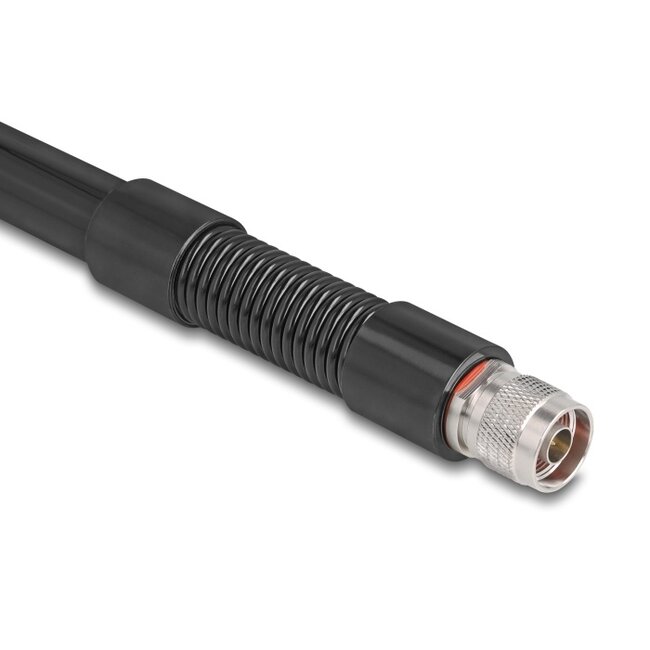

This WiFi antenna by Delock has a spring loaded base and can be connected to a device with an N jack connector to receive and send signals outside. The steel spring enables use under harsh conditions.
Specification• Connector: 1 x N plug
• Frequency range: 5.150 - 5.875 GHz
• Antenna gain: 7 dBi
• Impedance: 50 Ohm
• VSWR: < 1.8
• Horizontal beamwidth: 360°
• Vertical beamwidth: 15°
• Transmission power: max. 150 W
• Operating temperature: -40 °C ~ 80 °C
• Housing material: GFRP
• Protection class: IP66
• Maximum wind speed: 36.9 m/s
• Dimensions (LxD): ca. 510 x 20 mm
• Weight: ca. 236 g
• Device with a free N jack
Package content
• Antenna
