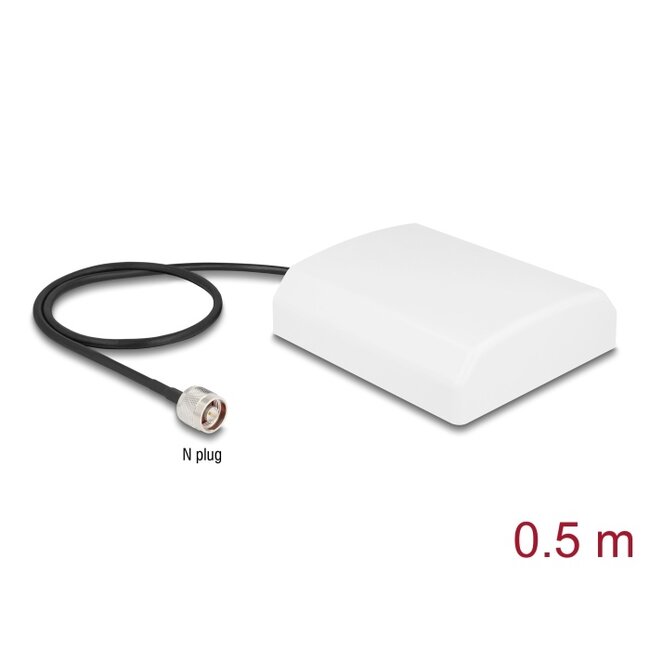

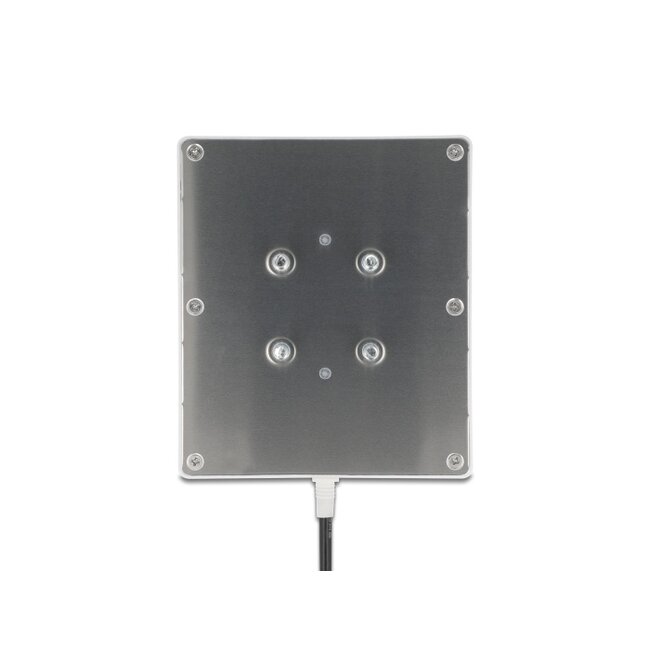

This WLAN antenna by Delock can be connected to a WLAN device with N interface, in order to send and receive signals outdoors.
Specification• Connectors: 1 x N plug
• Frequency range: 2400 MHz - 2500 MHz
• Antenna gain: 8 dBi
• Impedance: 50 Ohm
• VSWR: < 2.0
• Polarisation: vertical
• Horizontal beamwidth: 70°
• Vertical beamwidth: 65°
• Operating temperature: -40 °C ~ 55 °C
• Housing material: ABS
• Housing colour: white
• Protection class: IP65
• Cable type: RG-58
• Cable length incl. connectors: ca. 50 cm
• Pole diameter: ca. 35 - 50 mm
• Maximum wind speed: 36.9 m/s
• Dimensions (LxWxH): ca. 140 x 120 x 40 mm
• Weight: ca. 425 g
• Device with a free N port
Package content
• Antenna

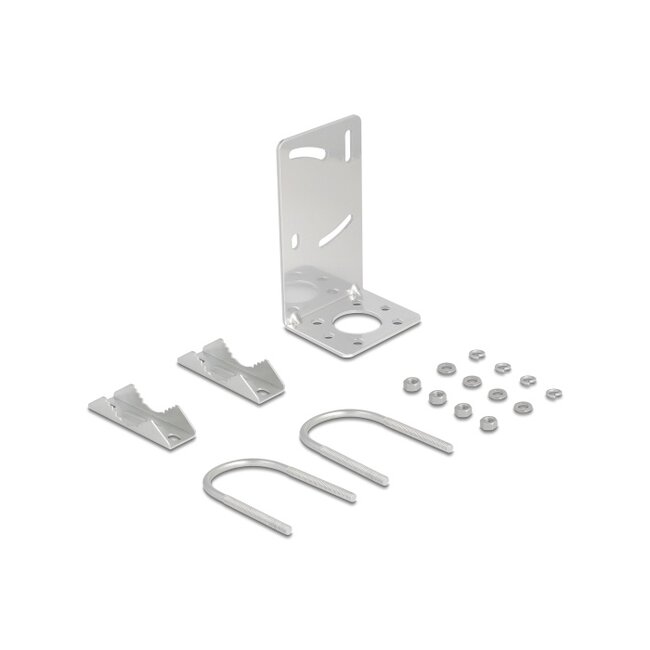

• Mounting material: nut, washer, mounting bracket and pole mounting bracket
