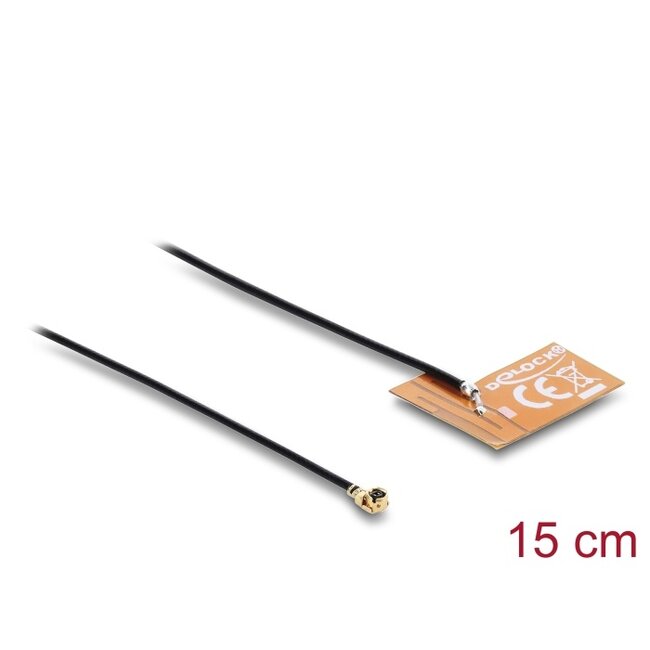

This antenna by Delock allows the usage of the 2.4 GHz band indoors.
Specification• Connector: 1 x I-PEX Inc., MHF® I plug
• Bluetooth, WLAN 2.4 GHz, ZigBee 2.4 GHz, ISM
• Frequency range: 2400 - 2500 MHz
• Antenna gain: 2 - 3 dBi
• Impedance: 50 Ohm
• VSWR: 2.0
• Polarisation: linear
• Mounting type: self-adhesive
• Operating temperature: -30 °C ~ 80 °C
• Housing material: FPC
• Cable type: coaxial
• Cable type: 1.13
• Cable colour: black
• Cable diameter: ca. 1.13 mm
• Cable attenuation: 3.2 dB @ 2.4 GHz per meter
• Smallest bending radius: 4.5 mm
• Cable length without connectors: ca. 15 cm
• Dimensions (LxWxH): ca. 22.0 x 18.0 x 0.12 mm
• Device with one free I-PEX Inc., MHF® I port
Package content
• Antenna
