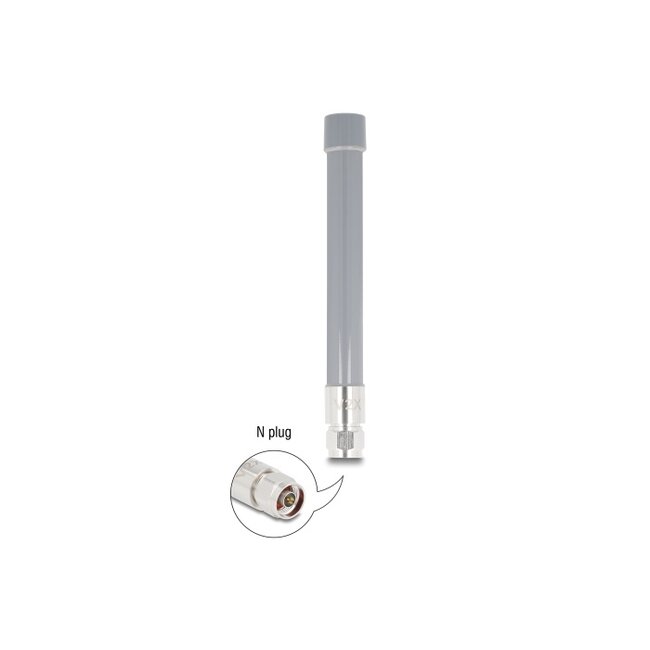

This V2X waterproof antenna by Delock allows the usage of 5.9 GHz bands outdoors.
V2X
Vehicle-to-everything (V2X) refers to wireless communication between a vehicle and any entity that can either influence the vehicle or be influenced by it.
• Connector: 1 x N plug
• Frequency range: 5905 - 5925 MHz
• Antenna gain: 6 dBi
• Impedance: 50 Ohm
• VSWR: < 1.8
• Polarisation: vertical
• Horizontal beamwidth: 360°
• Vertical beamwidth: 16°
• Transmission power: max. 50 W
• Surge protection: DC ground
• Operating temperature: -40 °C ~ 80 °C
• Housing material: GFRP
• Protection class: IP67
• Maximum wind speed: 36.9 m/s
• Dimensions (LxD): ca. 190 x 20 mm
• Weight: ca. 83 g
• Device with a free N port
Package content
• Antenna
