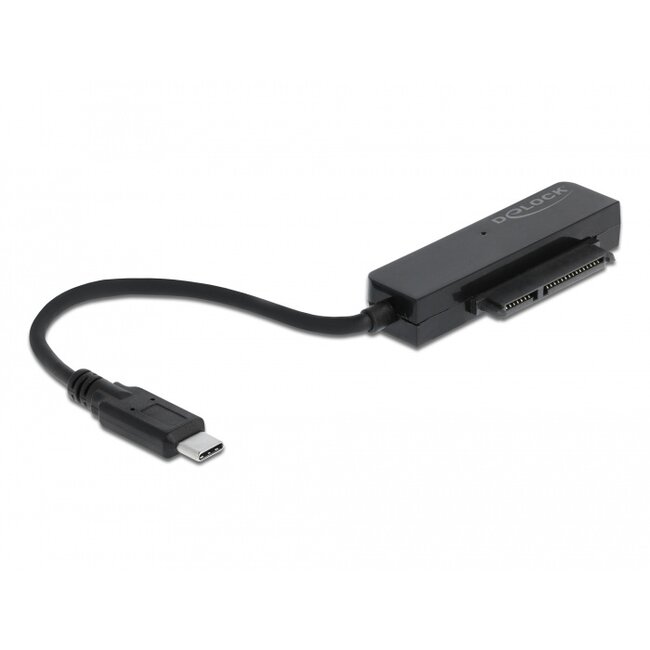

This Delock converter can be connected via USB-C™ interface to a PC or laptop. Thus a 2.5″ SATA HDD or SSD with a 22 pin SATA interface can be used.

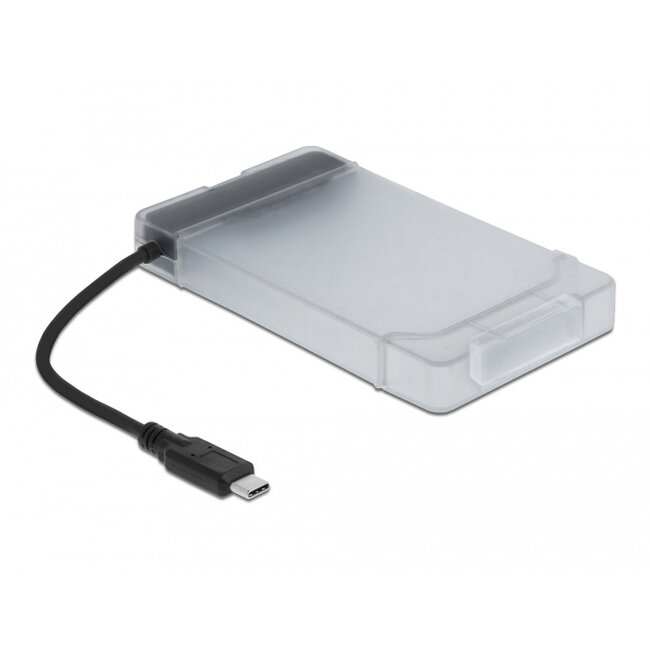

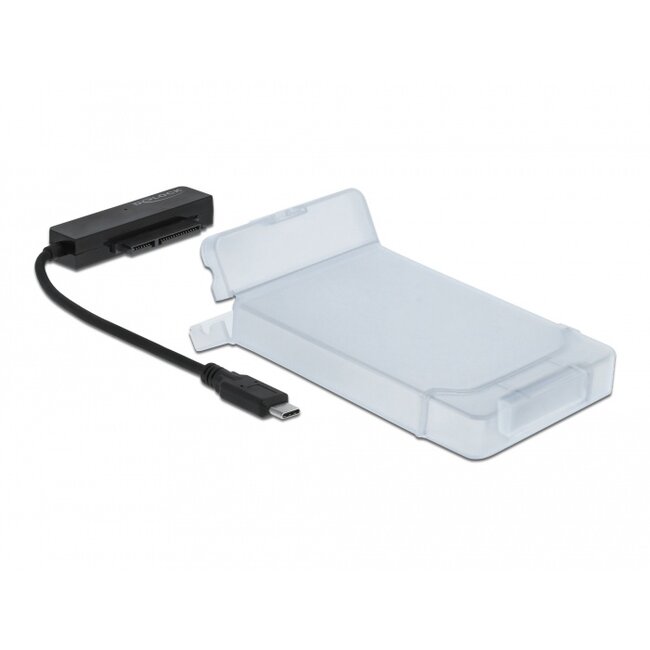

Protection cover for 2.5″ SSD / HDD
The included protection cover can be used to insert an SSD or HDD up to a height of 9.5 mm and to continue using the converter.
• Connectors:
1 x SuperSpeed USB (USB 3.2 Gen 1) USB Type-C™ male
1 x SATA 6 Gb/s 22 pin receptacle
• Chipset: VIA VL715
• Suitable for 2.5″ SATA HDD / SSD:
support 3.3 V / 5 V HDD / SSD
HDD height up to 9.5 mm
• Supports SATA 1.5 Gb/s, SATA 3 Gb/s and SATA 6 Gb/s
• Data transfer rate:
USB 3.0 up to 5 Gb/s
SATA up to 6 Gb/s
• LED indicator
• USB bus powered
• Colour:
cable: black
protection cover: white
• Cable length without connectors: ca. 15 cm
• Dimensions protection cover (LxWxH): ca. 129 x 75 x 16 mm
• Android 9.0 or above
• Chrome OS 75.0 or above
• Linux Kernel 3.3 or above
• Mac OS 10.14.5 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64
• PC or laptop with a free USB Type-C™ port
Package content
• Converter
• Protection cover
• User manual
