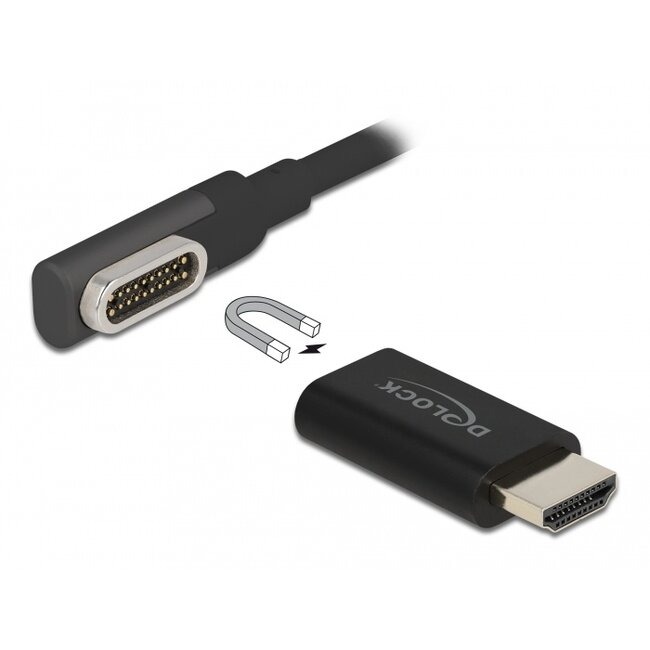

This adapter cable by Delock, consisting of a magnetic HDMI adapter and matching USB-C™ cable, can be used to connect various HDMI devices, such as TVs, projectors, displays, etc. to a system with a free Thunderbolt™ 3 or USB-C™ interface and DisplayPort alternate mode support. The adapter is designed to remain inside the port of the device and avoid the deterioration of the interface as well as act as dust protection.
Magnetic function
When using the adapter, it can be connected to the cable's interface, which is also magnetic, via the magnetic counterpart. The magnetic force supports a secure HDMI connection.
Quality

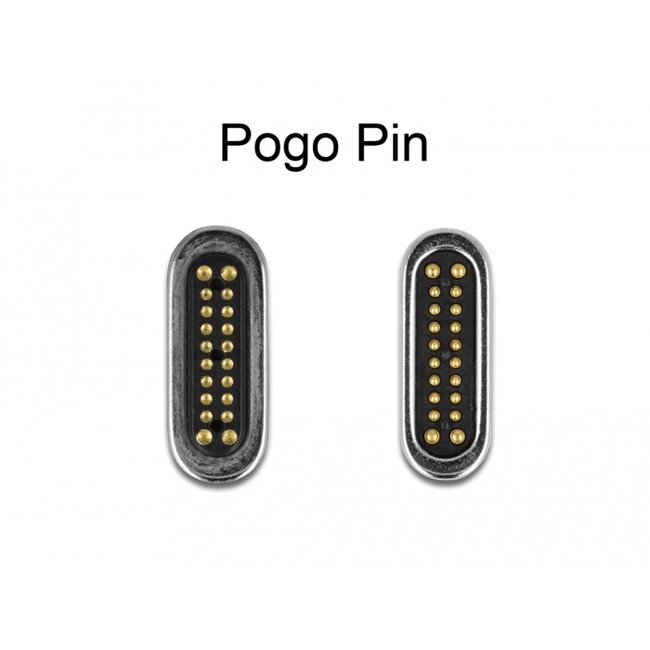

Optically and qualitatively the adapter convinces by its elegant aluminium housing, which makes it very robust, light weight and durable. The spring contacts (Pogo pins) guarantee a high functional reliability with a very high contact durability.
Note
The connection can be disconnected if the cable is subject to strong tensile stress.
• Connectors:
1 x USB Type-C™ male > 20 Pogo pin
1 x HDMI-A male > 20 Pogo pin
• Transmission of audio and video signals
• Cable gauge:
32 AWG data line
24 AWG power line
• Resolution up to 3840 x 2160 @ 60 Hz
(depending on the system and the connected hardware)
• Supports HDCP
• Cable diameter: ca. 4.5 mm
• Contacts gold-plated

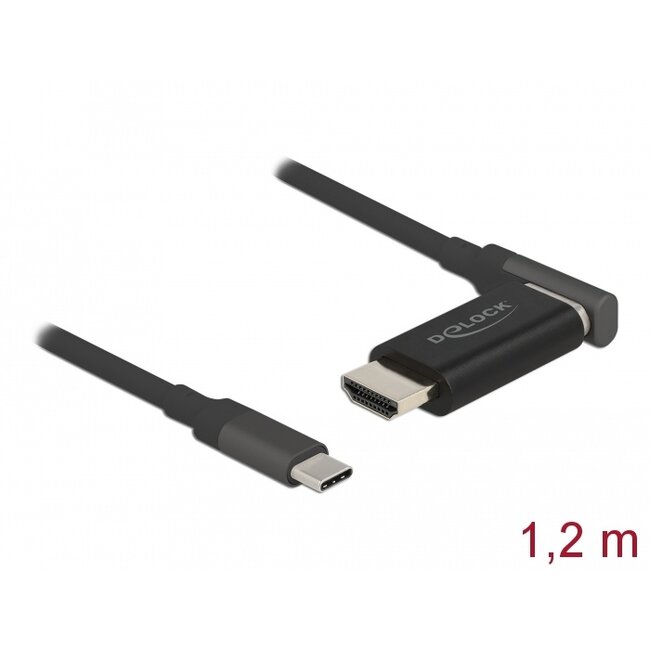

• Cable length without connectors: ca. 1.2 m
• Dimensions of the adapter (LxWxH): ca. 33 x 20 x 9 mm
• Material: aluminium
• Colour: black
• Device with a free HDMI jack
• Computer, tablet or smartphone with a free USB Type-C™ port and DisplayPort alternate
mode or
• PC or laptop with a free Thunderbolt™ 3 port
Package content
• HDMI adapter
• USB-C™ cable
