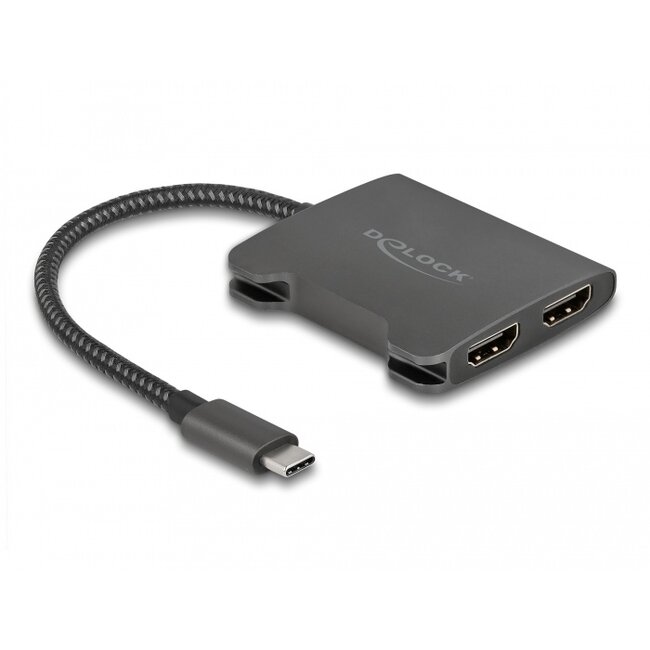

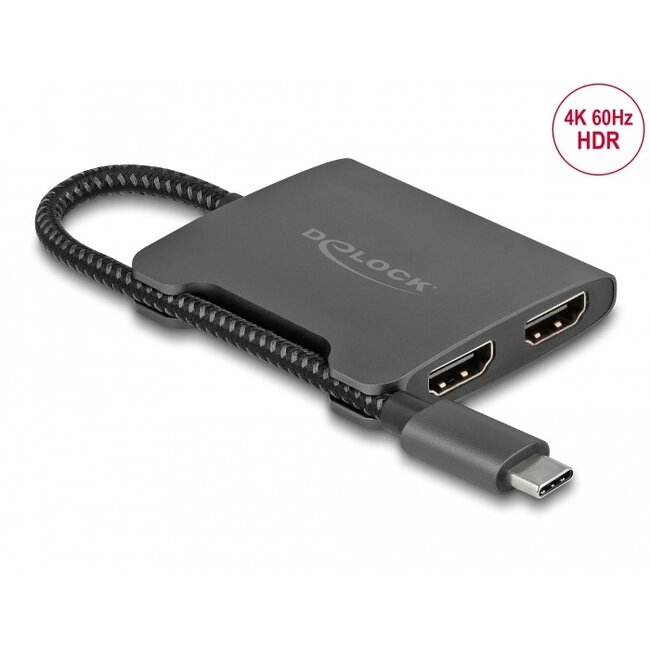

This splitter by Delock is suitable for the connection of two HDMI monitors to a computer with USB-C™ interface and DisplayPort alternate mode support. Two monitors can be operated simultaneously at the outputs.
Multi-Stream Transport (MST)
The product is a Multi-Stream Transport (MST) hub and supports the extended desktop configuration of DisplayPort. In Windows, the connected monitors are controlled individually, and can be combined into one large display.
• Connectors:
Input: 1 x USB Type-C™ male
Output: 2 x HDMI-A female
• Chipset: VMM5200
• DisplayPort 1.4 specification
• Active converter, Single- / Multi-Stream Transport Hub (SST / MST)
• Supports Display Stream Compression 1.2 (DSC)
• Supports HDR
• Supports HDCP 1.4 and 2.2
• Maximum resolution (depending on the system and the connected hardware):
DisplayPort 1.4 Multi-Stream Transport (MST):
2 displays: up to 3840 x 2160 @ 60 Hz
DisplayPort 1.2 Multi-Stream Transport (MST):
2 displays: up to 3840 x 2160 @ 30 Hz
• Functions: Mirrored or Extended (Windows only)
• Transmission of audio and video signals
• USB bus powered
• Colour: black
• Metal housing
• Cable length incl. connectors: ca. 15 cm
• Dimensions (LxWxH): ca. 60.8 x 55.0 x 11.6 mm
• Windows 8.1/8.1-64/10/10-64
• PC or laptop with a free USB Type-C™ port and DisplayPort alternate mode or
• PC or laptop with a free Thunderbolt™ 3 port
Package content
• USB-C™ Splitter (DP Alt Mode)
• User manual
