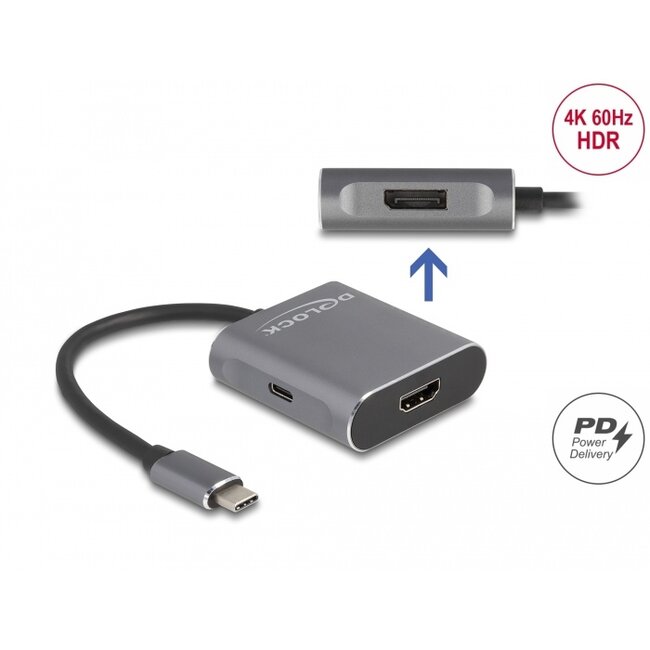

This splitter by Delock is suitable for the connection of a DisplayPort monitor and an HDMI monitor to a computer with USB-C™ interface and DisplayPort alternate mode support. Two monitors can be operated simultaneously at the outputs.
Multi-Stream Transport (MST)
The product is a Multi-Stream Transport (MST) hub and supports the extended desktop configuration of DisplayPort. In Windows, the connected monitors are controlled individually, and can be combined into one large display.
USB Power Delivery (USB PD 3.0) support up to 100 watt
Supports the USB Power Delivery 3.0 standard, which allows connected devices to be powered with up to 100 W (20 V / 5 A).
• Connectors:
Input:
1 x USB Type-C™ male
1 x USB Type-C™ female (power supply)
Output:
1 x HDMI-A female
1 x DisplayPort female
• Chipset: VMM6210
• DisplayPort 1.4 specification
• Active converter, Single- / Multi-Stream Transport Hub (SST / MST)
• Supports Display Stream Compression 1.2 (DSC)
• Supports HDR
• Supports HDCP 1.4 and 2.2
• Maximum resolution (depending on the system and the connected hardware):
DisplayPort 1.4 Multi-Stream Transport (MST):
2 displays: up to 3840 x 2160 @ 60 Hz
DisplayPort 1.2 Multi-Stream Transport (MST):
2 displays: up to 3840 x 2160 @ 30 Hz
• Functions: Mirrored or Extended (Windows only)
• Transmission of audio and video signals
• USB bus powered
• Colour: black
• Cable length incl. connectors: ca. 15 cm
• Dimensions (LxWxH): ca. 51.0 x 51.0 x 16.5 mm
• Windows 8.1/8.1-64/10/10-64/11
• PC or laptop with a free USB Type-C™ port and DisplayPort alternate mode or
• PC or laptop with a free Thunderbolt™ 3 port
Package content
• USB-C™ Splitter (DP Alt Mode)
• User manual
