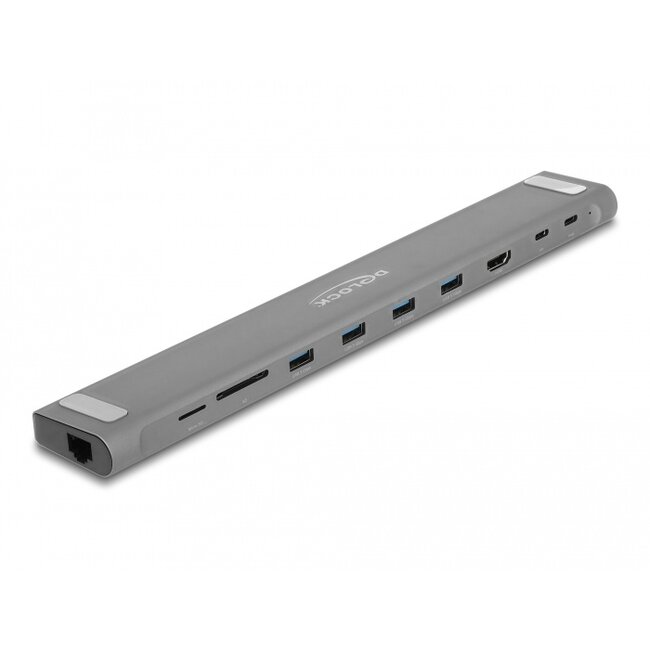

This docking station by Delock can be connected to a computer with a USB-C™ DP Alt Mode or Thunderbolt™ 3 port and provides a variety of interfaces. A monitor can be operated at the HDMI output. Four built-in USB ports allow the use of peripherals, and connections for SD and Micro SD card and Gigabit network complete the features.
USB Power Delivery (USB PD 3.0) support up to 85 watt
The docking station has a USB Type-C™ Power Delivery port. If this port is connected to the power supply of the laptop or tablet, the host device is charged with up to 85 watts during operation.

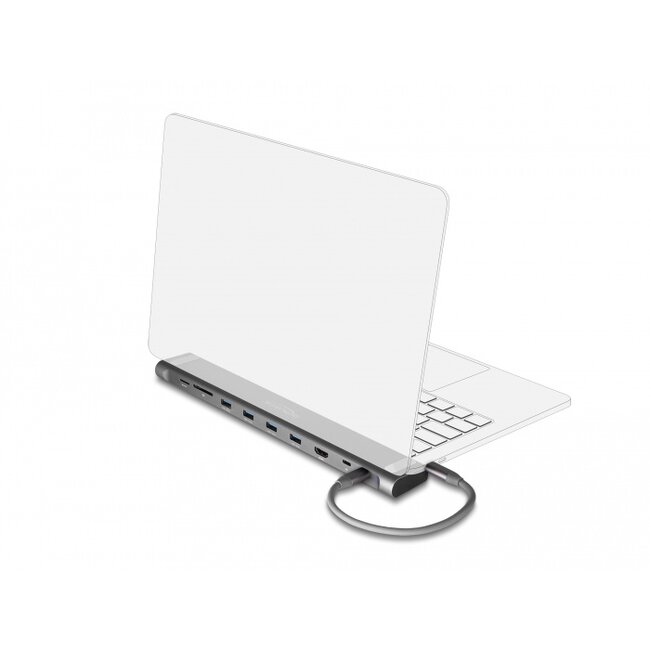

Due to its elongated shape and metal housing, the docking station is perfectly suited for use under a laptop, e.g. MacBook. The increased tilt of the laptop serves a better comfort while working, as well as a better cooling of the laptop.

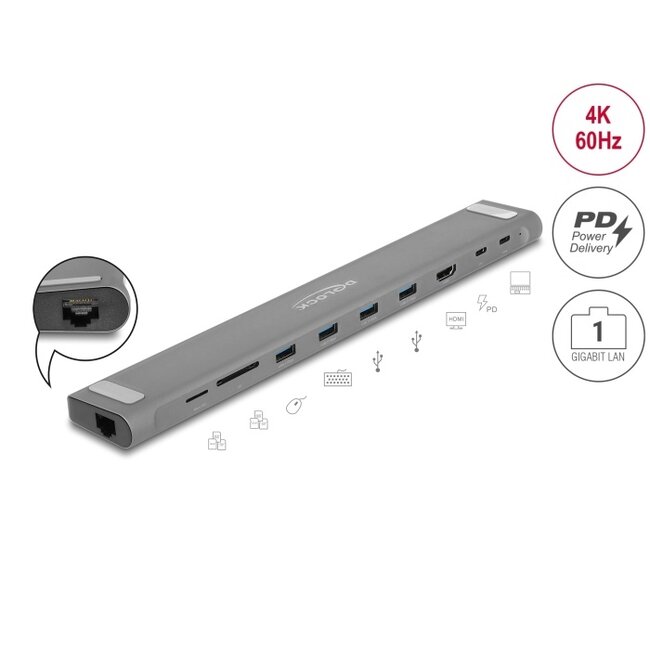

• Connectors:
1 x USB Type-C™ female
1 x USB Type-C™ female (power supply)
4 x USB 5 Gbps Type-A female
1 x HDMI female
1 x Gigabit LAN 10/100/1000 Mbps RJ45 jack
1 x SD / SDHC / SDXC / MMC slot
1 x Micro SD / SDHC / SDXC slot
• Resolution up to 3840 x 2160 @ 60 Hz
(depending on the system and the connected hardware)
• Transmission of audio and video signals
• It can be used two memory cards at the same time
• Data can be exchanged directly between two connected memory cards
• USB Power Delivery (PD) 3.0
• Supports HDCP 1.4
• Output power for host: max. 85 W
• 1 x LED indicator
• Metal housing
• Colour: grey
• Dimensions (LxWxH): ca. 282 x 41 x 16 mm
• Mac OS 12.4 or above
• Windows 8.1/8.1-64/10/10-64/11
• Device with a free USB Type-C™ port and DisplayPort alternate mode or with a free
Thunderbolt™ 3 port
Package content
• USB-C™ docking station

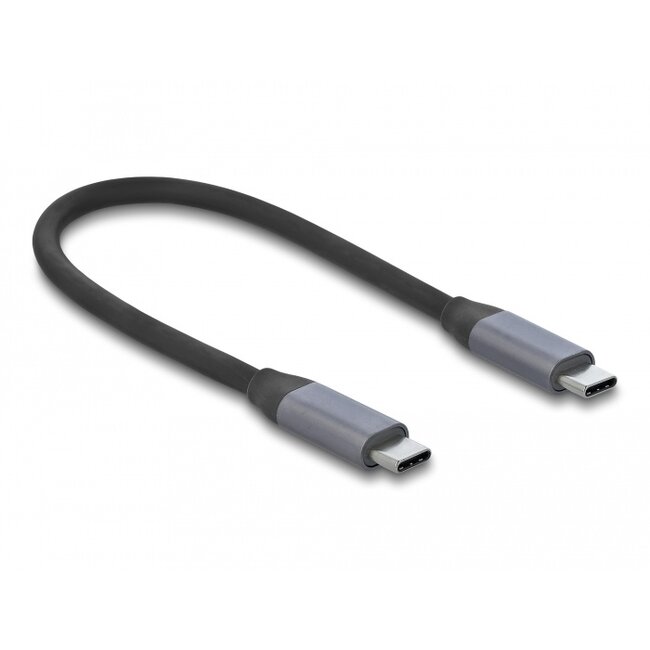

• Cable USB-C™ male to USB-C™ male, length ca. 20 cm
• User manual
