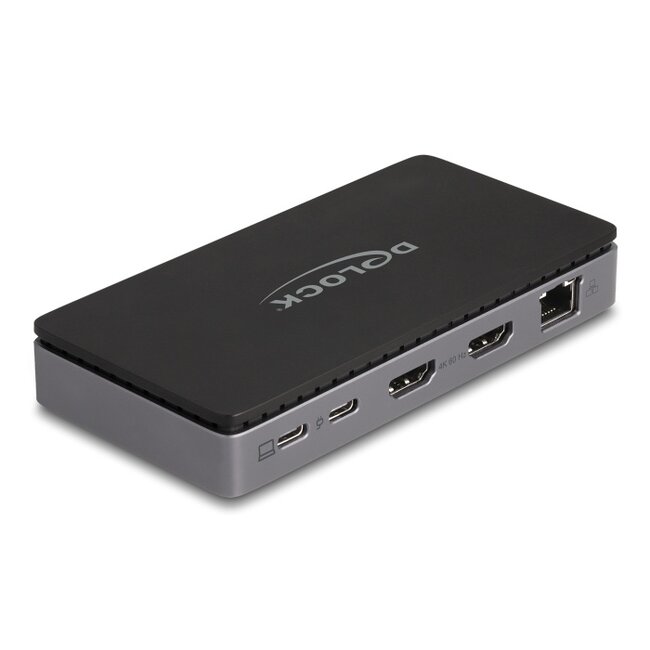

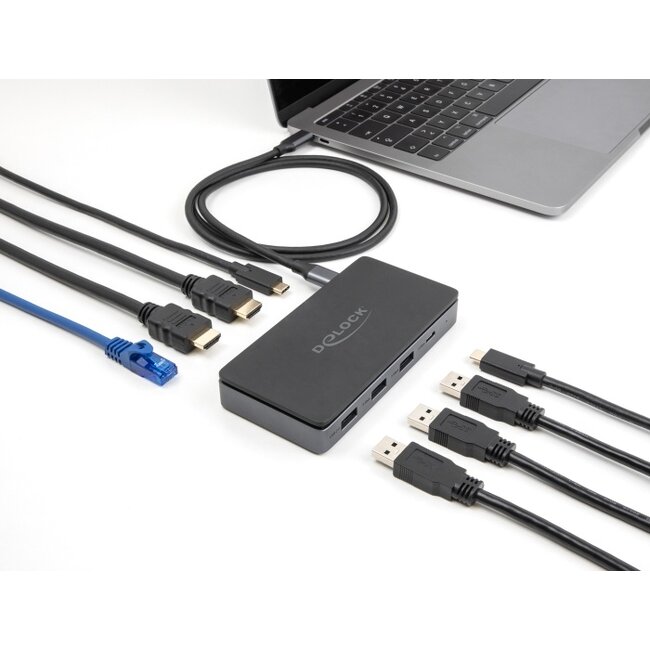

This docking station by Delock can be connected to a computer with a USB-C™ DP Alt Mode or Thunderbolt™ 3 or Thunderbolt™ 4 port and provides a variety of interfaces. Two monitors can be operated simultaneously at the HDMI output ports. Three built-in USB Type-A and one USB-C™ port allow the use of peripherals.
Multi-Stream Transport (MST)
The product is a Multi-Stream Transport (MST) hub and supports the extended desktop configuration of DisplayPort. In Windows, the connected monitors are controlled individually, and can be combined into one large display.
In addition, the docking station with integrated RJ45 Gigabit LAN connection expands a PC or laptop by a network interface.
USB Power Delivery (USB PD 3.0) support up to 85 watt
The docking station has a USB Type-C™ Power Delivery port. If this port is connected to the power supply of the laptop or tablet, the host device is charged with up to 85 watts during operation.

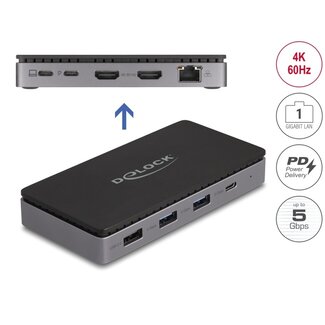

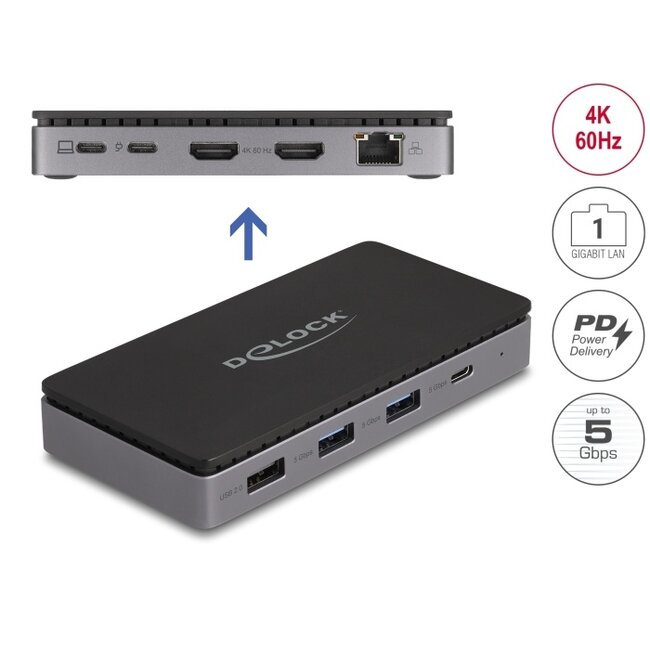

• Connectors:
1 x USB Type-C™ female
2 x HDMI-A female
2 x USB 5 Gbps Type-A female
1 x USB 5 Gbps USB Type-C™ female
1 x USB 2.0 Type-A female
1 x Gigabit LAN 10/100/1000 Mbps RJ45 jack
1 x USB Type-C™ PD female (power supply)
• Maximum resolution (depending on the system and the connected hardware):
Single display: up to 3840 x 2160 @ 60 Hz
Dual display: up to 3840 x 2160 @ 60 Hz
• Functions: Mirrored or Extended (Windows only)
• Transmission of audio and video signals
• Supports HDCP 1.4 and 2.2
• Supports HDR
• Input power PD port: 100 W, 15 W are used for the docking station
• Output power for host: max. 85 W
• Housing material: metal / plastic
• LED indicator
• Colour: black
• Dimensions (LxWxH): ca. 125 x 62 x 19 mm
• Android 13.0 or above
• Chrome OS
• Linux Kernel 5.15 or above
• Mac OS 13.1 or above
• Windows 10/10-64/11
• iPad Air (4th Generation) or above
• iPad Pro (3rd Generation) or above
• Surface Pro 7
• Device with a free USB Type-C™ port and DisplayPort alternate mode or with a free Thunderbolt™ 3 or Thunderbolt™ 4 port
Package content
• USB-C™ docking station

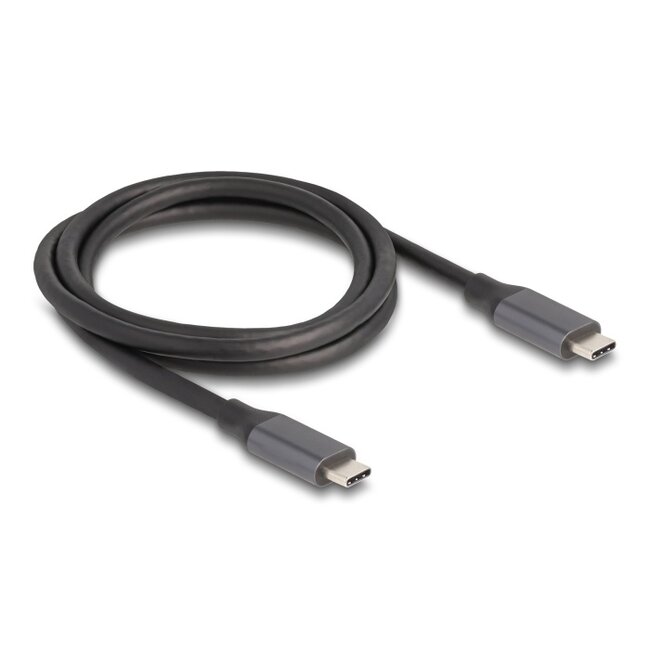

• Cable USB-C™ male to USB-C™ male, length ca. 1 m
• User manual
