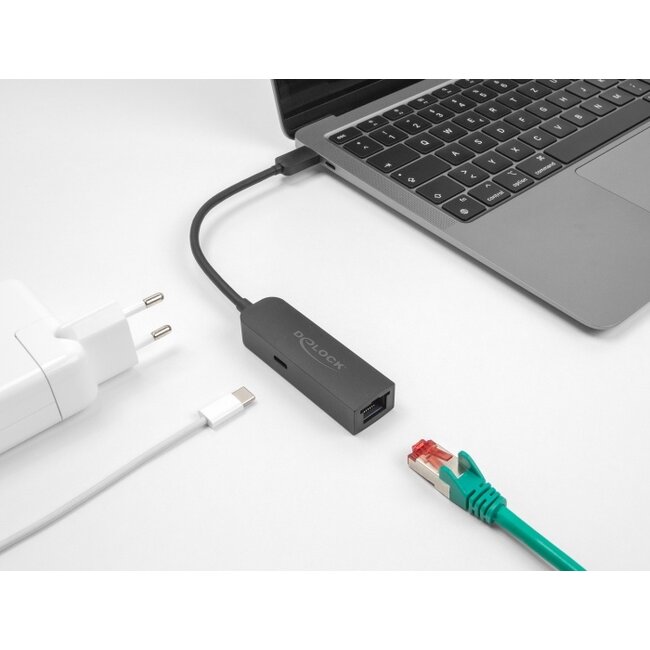

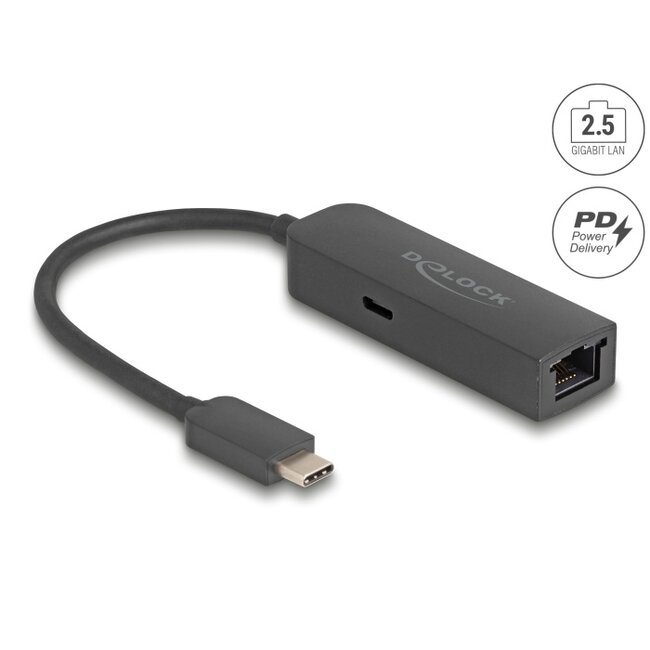

The adapter by Delock expands a PC or laptop by one network interface via the USB Type-C™ interface.
NBASE-T for higher speed
Modern services and new technologies require higher bandwidths. NBASE-T technology enables speeds of 1 Gbps and 2.5 Gbps with conventional networking cables. The best possible transmission rate is set automatically.
The adapter has a USB Type-C™ Power Delivery port to connect the power supply of the laptop or tablet to charge it. The adapter can also be used without a power supply.
• Connectors:
1 x USB 5 Gbps USB Type-C™ male
1 x 2.5 Gigabit LAN RJ45 jack
1 x USB Type-C™ Power Delivery female
• Chipset: Realtek RTL8156B
• Data transfer rate:
Ethernet up to 10 Mbps (Half/Full Duplex)
Fast Ethernet up to 100 Mbps (Half/Full Duplex)
Gigabit Ethernet up to 1000 Mbps (Half/Full Duplex)
NBASE-T with up to 2.5 Gbps (Half/Full Duplex)
• Supports Auto MDI-X (automatic detection of standard or crossover network cable)
• Supports IEEE 802.1Q Virtual LAN (VLAN)
• Supports IEEE 802.3az (Energy Efficient Ethernet)
• Support full duplex operation with IEEE 802.3x flow control and half duplex operation with back-pressure
• Supports 16k Jumbo Frames
• Output power PD for host: max. 100 W
• LED indicator for link and activity
• USB bus powered
• Colour: black
• Cable length without connectors: ca. 15 cm
• Dimensions (LxWxH): ca. 74 x 21 x 15 mm
• Android 14.0 or above
• Chrome OS
• Linux Kernel 6.2 or above
• Mac OS 13.1 or above
• Windows 10/10-64/11
• iPad Air (4th Generation) or above
• iPad Pro (3rd Generation) or above
• iPhone 15 Pro or above
• Surface Pro 7
• Device with a free USB Type-C™ port or with a free Thunderbolt™ 3 or Thunderbolt™ 4 port
Package content
• USB Type-C™ 2.5 Gigabit LAN adapter
• User manual
