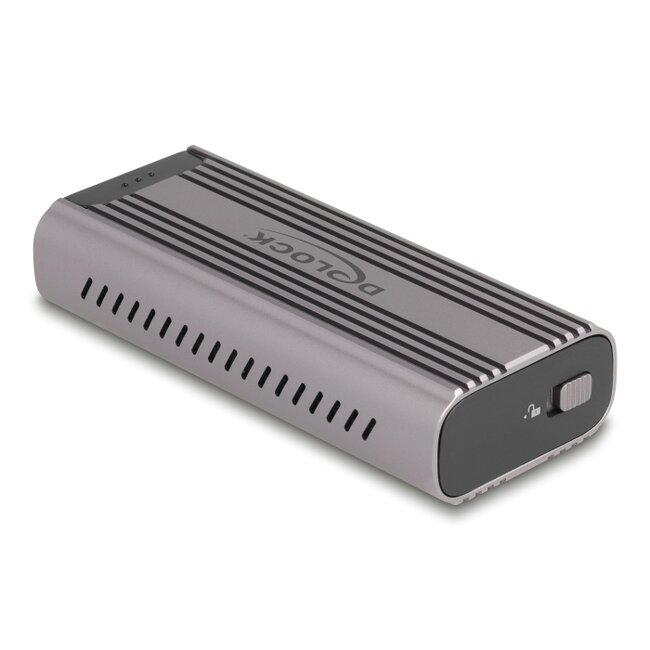

This enclosure by Delock enables the installation of an M.2 PCIe NVMe SSD in 2280, 2260 and 2242 format, it can be connected via Thunderbolt™ 3, Thunderbolt™ 4 or USB-C™ to the PC or laptop. The robust metal housing with cooling fins ensures an optimum temperature of the memory.
USB 40 Gbps
Due to USB 40 Gbps compatibility, the Delock enclosure can be connected to Thunderbolt™ 3 and 4 ports, as well as to all USB Type-C™ ports. The maximum data transfer rate depends on the host device.
• Connectors:
external: 1 x USB 40 Gbps USB Type-C™ female
internal: 1 x M.2 key M slot
• Chipset: Asmedia ASM2464PD
• Supports M.2 modules in format 2280, 2260 and 2242 with key M or key B+M based on PCIe (NVMe)
• Maximum height of the components on the module: 1.5 mm, application of double-sided assembled modules supported
• Supports NVM Express (NVMe)
• Data transfer rate up to 40 Gbps
• LED indicator for power and access
• Metal housing
• Hot Plug, Plug & Play
• Dimensions (LxWxH): ca. 107 x 47 x 24 mm
• Linux Kernel 6.2 or above
• Mac OS 12.4 or above
• Windows 10/10-64/11
• iPad Air (4th Generation) or above
• iPad Pro (3rd Generation) or above
• Surface Pro 7
• Device with a free USB Type-C™ port or with a free Thunderbolt™ 3 port or
• Device with a free Thunderbolt™ 4 port
Package content
• External enclosure M.2
• Cable USB-C™ male to USB-C™ male, length ca. 15 cm
• 1 x thermal conductive pad
• 1 x heat sink
• M.2 mounting material
• Screwdriver
• User manual
