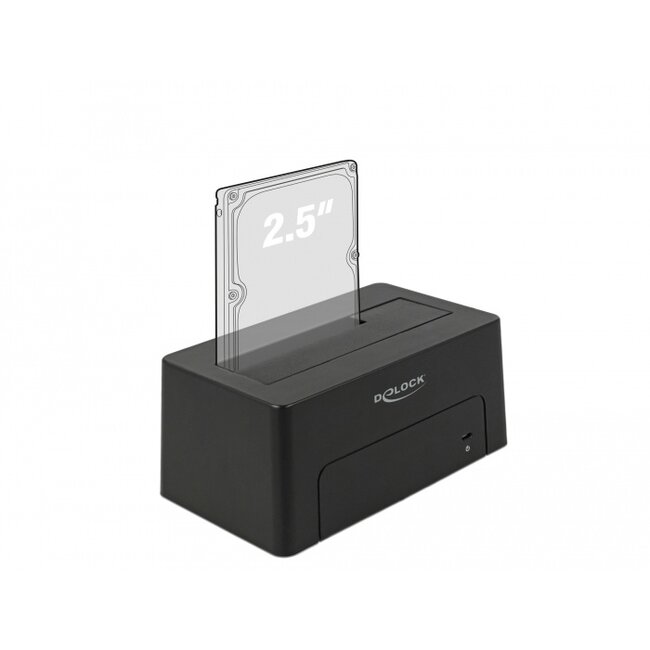

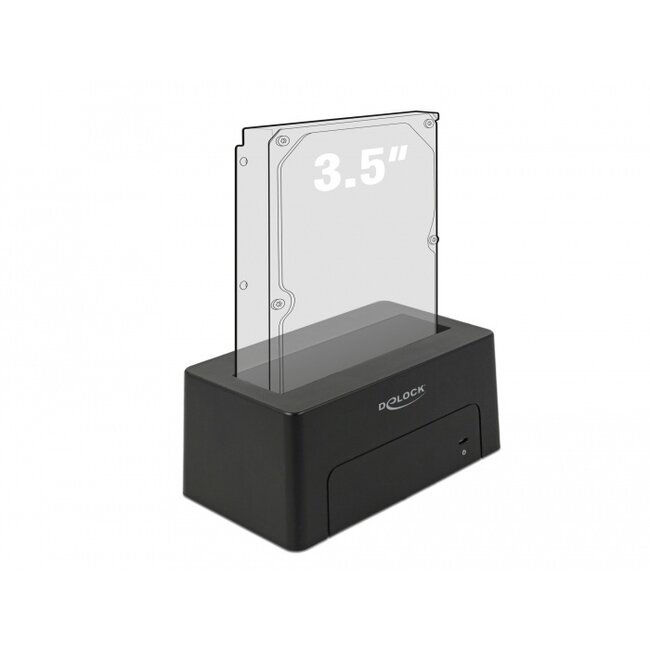

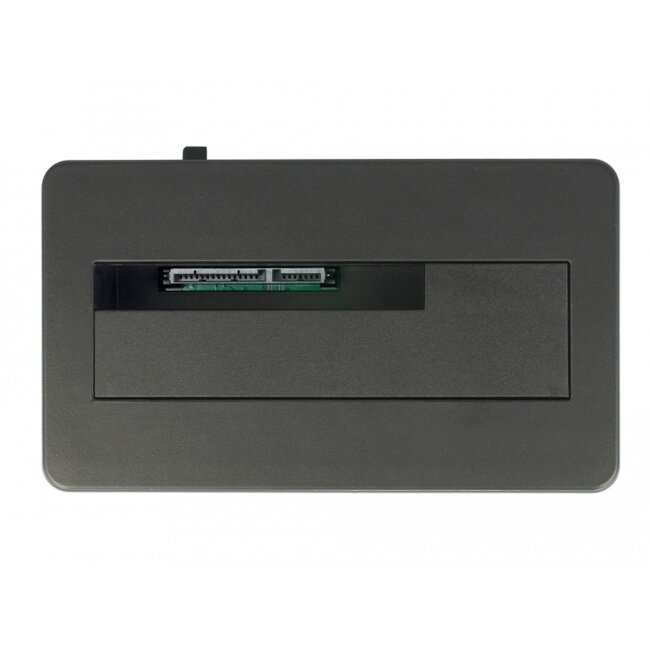

This Docking Station by Delock enables an external connection of one 2.5″ or 3.5″ SATA HDD or SSD through the USB-C™ interface. This solution does not require an external enclosure since the drive can just plug in directly into the docking station.
Specification• Connectors:
1 x SuperSpeed USB 10 Gbps (USB 3.1 Gen 2) USB Type-C™ female
1 x SATA 6 Gb/s 22 pin receptacle
1 x DC jack
• Chipset: Asmedia ASM235CM
• Function key:
1 x On / Off switch
• For 2.5″ and 3.5″ SATA HDD / SSD
• Suitable for all SATA HDDs up to SATA 6 Gb/s
• Data transfer rate up to 6 Gb/s
• LED indicator for power and access
• Dimensions (LxWxH): ca. 129 x 75 x 57 mm
• Plug & Play
Power supply specification
• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.8 A
• Output: 12 V / 2 A
• Ground outside, plus inside
• Dimensions:
inside: ø ca. 2.1 mm
outside: ø ca. 5.5 mm
length: ca. 10 mm
• Linux Kernel 4.9.4 or above
• Mac OS 10.13.3 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64
• PC or laptop with a free USB Type-C™ port
Package content
• Docking station
• Cable USB-C™ male to USB-C™ male, length ca. 80 cm
• External power supply 12 V / 2 A
• User manual
