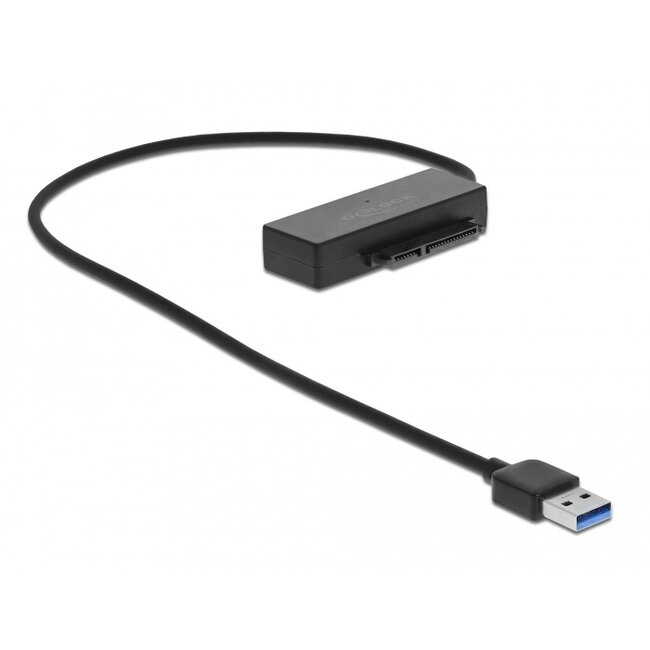

This converter by Delock can be connected via USB Type-A interface to a PC or laptop. Thus a 2.5″ or 3.5″ SATA HDD or SSD with a 22 pin SATA interface can be used.

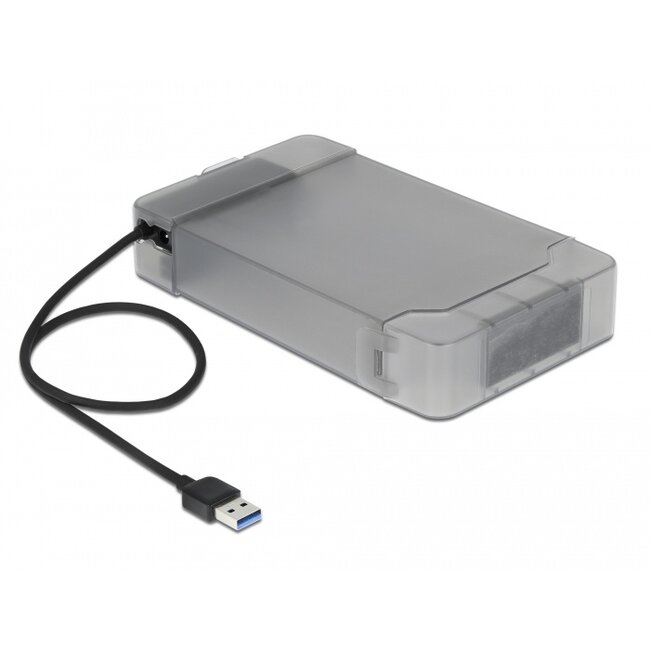

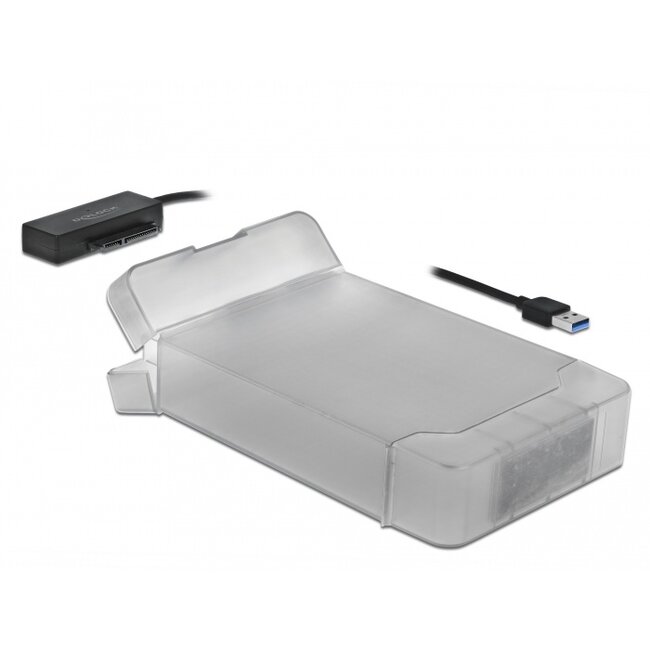

Protection cover for 3.5″ HDD

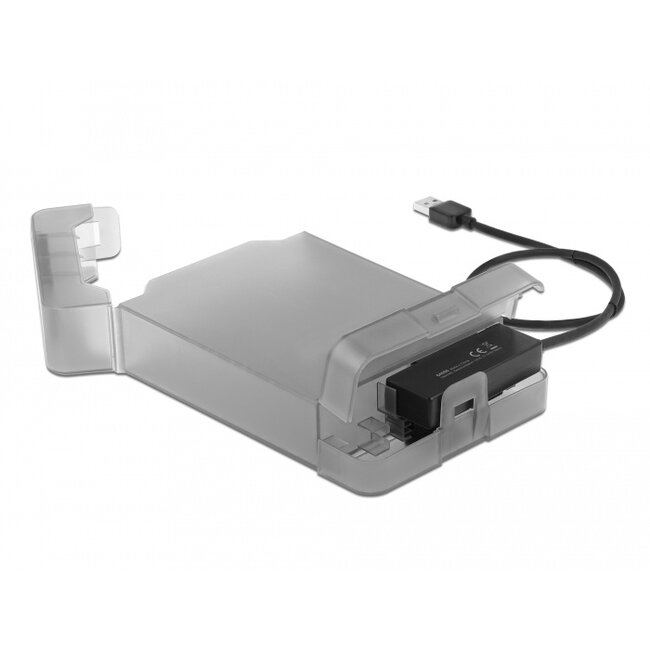

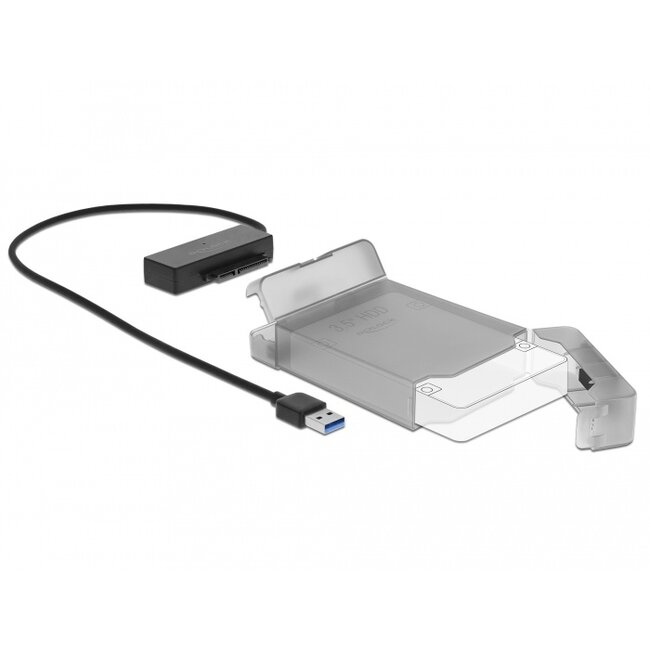

The included protection cover can be used to insert a HDD and to continue using the converter.
• Connectors:
1 x USB 3.0 Type-A male
1 x SATA 6 Gb/s 22 pin receptacle
• Chipset: JMicron JMS578
• For 2.5″ and 3.5″ SATA HDD / SSD
• Supports SATA 1.5 Gb/s, SATA 3 Gb/s and SATA 6 Gb/s
• Data transfer rate:
USB 3.0 up to 5 Gb/s
SATA up to 6 Gb/s
• LED indicator
• Colour:
cable: black
protection cover: grey
• Cable length without connectors: ca. 45 cm
• Dimensions protection cover (LxWxH): ca. 184 x 109 x 32 mm

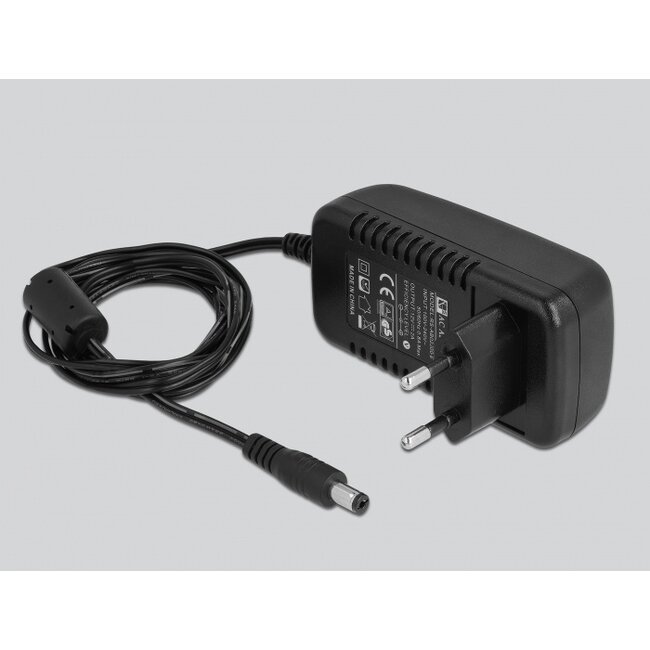

Power supply specification
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.8 A
• Output: 12 V / 2 A
• Ground outside, plus inside
• Dimensions:
inside: ø ca. 2.1 mm
outside: ø ca. 5.5 mm
length: ca. 10 mm
• Chrome OS 75.0 or above
• Linux Kernel 3.4 or above
• Mac OS 10.14.6 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64
• PC or laptop with a free USB Type-A port
Package content
• Converter
• Protection cover
• Power supply
• User manual
