Description

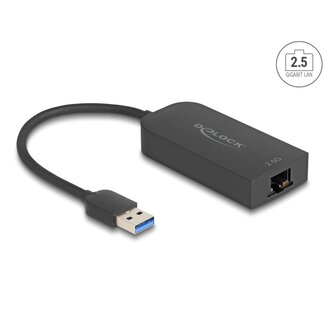

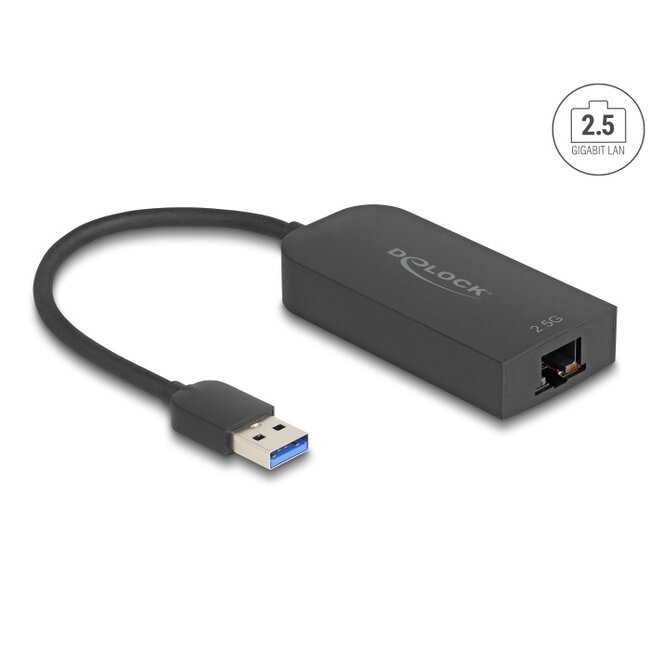

The adapter by Delock expands a PC or laptop by one network interface via the USB Type-A interface.
NBASE-T for higher speed
Modern services and new technologies require higher bandwidths. NBASE-T technology enables speeds of 1 Gbps and 2.5 Gbps with conventional networking cables. The best possible transmission rate is set automatically.
Technical details
- Connectors:
1 x USB 5 Gbps Type-A male
1 x 2.5 Gigabit LAN RJ45 jack
- Chipset: ASIX AX88279
- SuperSpeed USB - 5 Gbps specification
- Data transfer rate:
Ethernet up to 10 Mbps (Half/Full Duplex)
Fast Ethernet up to 100 Mbps (Half/Full Duplex)
Gigabit Ethernet up to 1000 Mbps (Half/Full Duplex)
NBASE-T with up to 2.5 Gbps (Half/Full Duplex)
- Supports Auto MDI-X (automatic detection of standard or crossover network cable)
- Supports IEEE 802.1Q Virtual LAN (VLAN)
- Supports IEEE 802.3az (Energy Efficient Ethernet)
- Support full duplex operation with IEEE 802.3x flow control and half duplex operation with back-pressure
- Supports 9k Jumbo Frames
- Supports MAC Address Passthrough
- LED indicator for link and activity
- USB bus powered
- Colour: black
- Cable length without connectors: ca. 15 cm
- Dimensions (LxWxH): ca. 75 x 35 x 15 mm
System requirements
- Android 11.0 or above
- Chrome OS 113.0 or above
- Linux Kernel 3.10 or above
- Mac OS 10.6 or above
- Windows 10/10-64/11
- PC or laptop with a free USB Type-A port
Package content
- USB Type-A 2.5 Gigabit LAN adapter
- User manual
