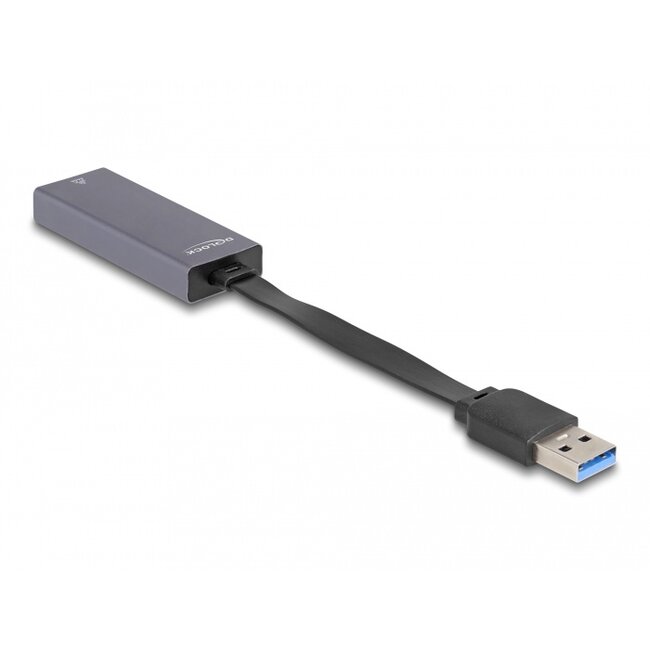

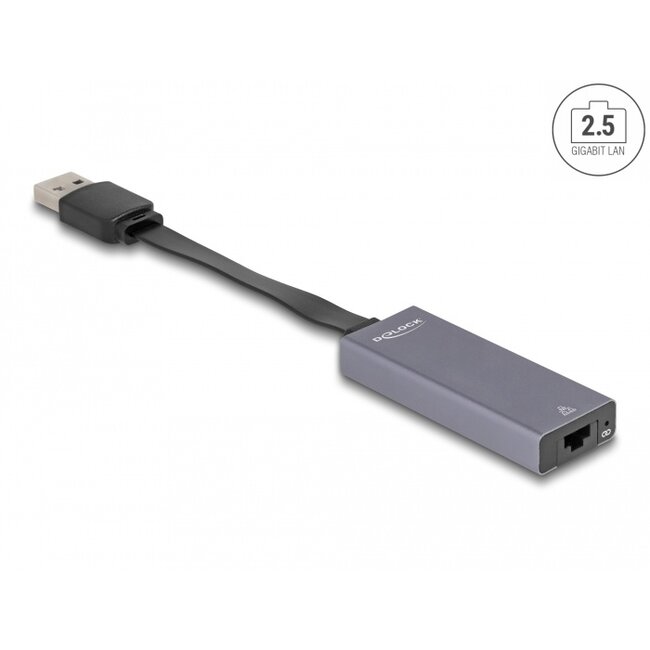

The adapter by Delock expands a PC or laptop by one network interface via the USB Type-A interface.

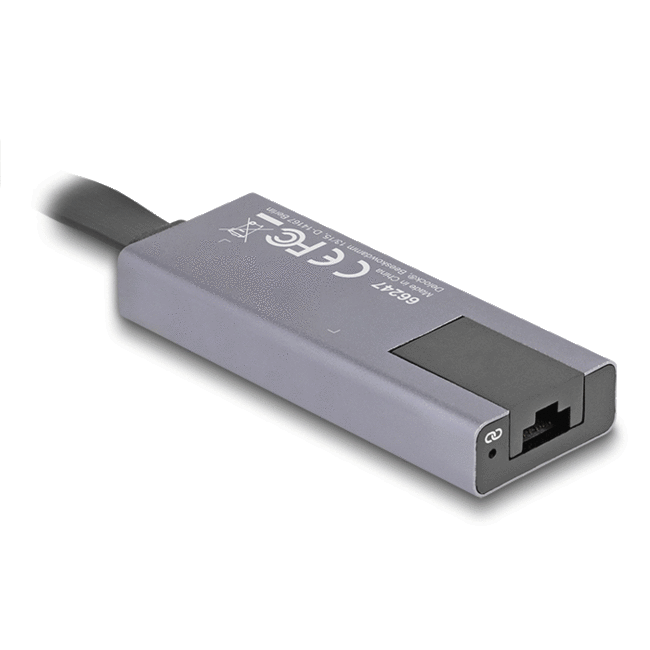

Fold-out RJ45 jack
The RJ45 jack can be folded out to insert the networking cable. This allows for a particularly slim design. With the small dimensions, the adapter is space-saving to transport and can be used practically everywhere.
NBASE-T for higher speed
Modern services and new technologies require higher bandwidths. NBASE-T technology enables speeds of 1 Gbps and 2.5 Gbps with conventional networking cables. The best possible transmission rate is set automatically.
• Connectors:
1 x USB 5 Gbps Type-A male
1 x 2.5 Gigabit LAN RJ45 jack
• Chipset: Realtek RTL8156B
• SuperSpeed USB - 5 Gbps specification
• Data transfer rate:
Ethernet up to 10 Mbps (Half/Full Duplex)
Fast Ethernet up to 100 Mbps (Half/Full Duplex)
Gigabit Ethernet up to 1000 Mbps (Half/Full Duplex)
NBASE-T with up to 2.5 Gbps (Half/Full Duplex)
• Supports Auto MDI-X (automatic detection of standard or crossover network cable)
• Supports IEEE 802.1Q Virtual LAN (VLAN)
• Supports IEEE 802.3az (Energy Efficient Ethernet)
• Support full duplex operation with IEEE 802.3x flow control and half duplex operation with back-pressure
• Supports 16k Jumbo Frames
• LED indicator for link and activity
• USB bus powered
• Colour: anthracite
• Cable length without connectors: ca. 9 cm
• Dimensions (LxWxH): ca. 59 x 23 x 10 mm
• Windows 10/10-64/11
• PC or laptop with a free USB Type-A port
Package content
• USB Type-A 2.5 Gigabit LAN adapter
• User manual
