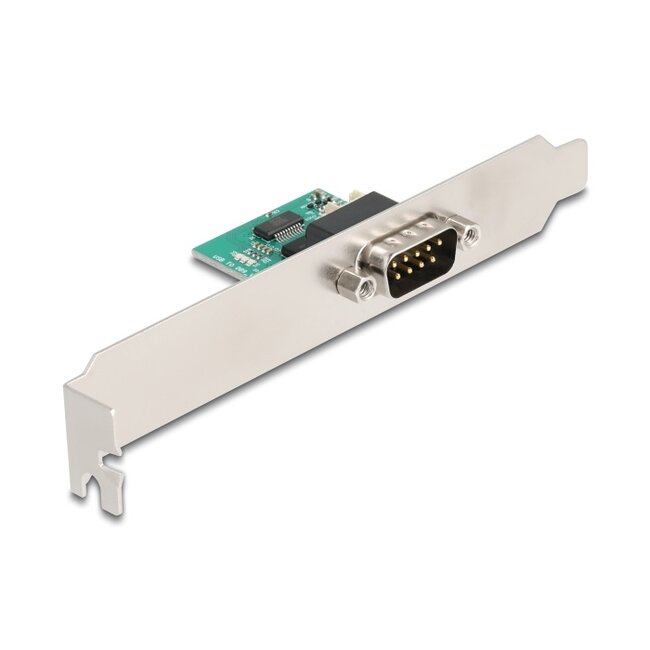

The USB 2.0 to RS-232 converter by Delock expands the computer via an internal USB port by a serial RS-232 standard interface. The small adapter board is ideal for mounting in housings or on slot brackets.
Flexibility with RS-232
The data transmission can be easily and flexibly adapted to serial devices and PC applications. The converter also provides functions such as remote wake-up, power management, modem and extensive compatibility.
• Connectors:
1 x USB 2.0 pin header male 4 pin
1 x serial RS-232 D-Sub 9 male with nuts

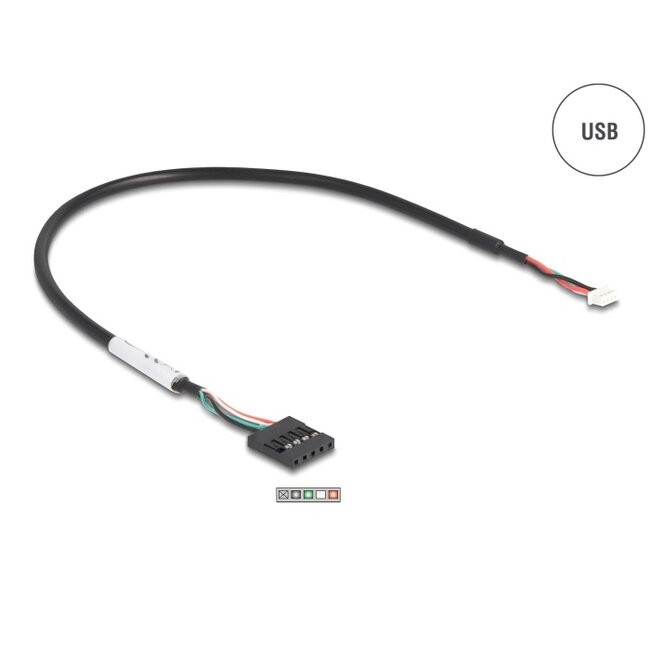

Cable:
1 x USB 2.0 Pin header female 4 pin
1 x USB 2.0 Pin header female 5 pin
• Chipset: FTDI FT231XS
• Supports: UHCI / OHCI / EHCI
• Data transfer rate up to 921.6 Kbps
• FIFO: 512 Byte - RX
• FIFO: 512 Byte - TX
• Databits: 7, 8
• Stop bits: 1, 2
• Parity: even, odd, none, mark, space
• Flow control: none, RTS / CTS, DSR / DTR, XON / XOFF

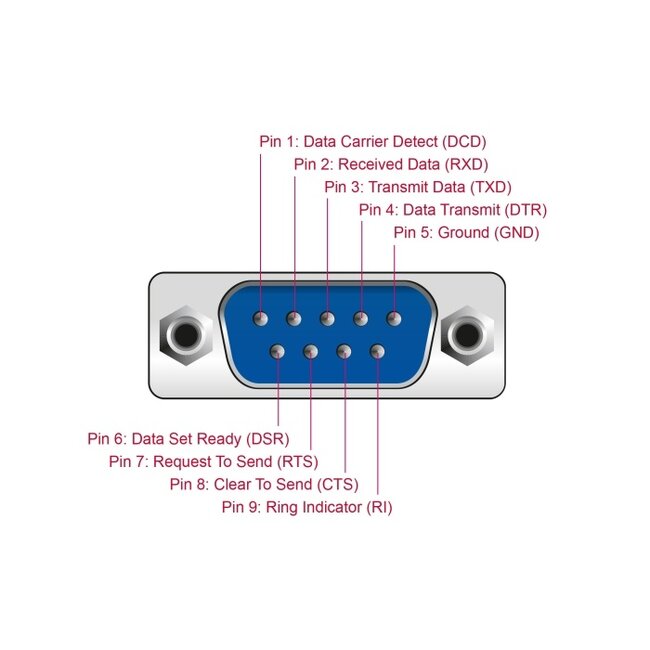

• Signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND

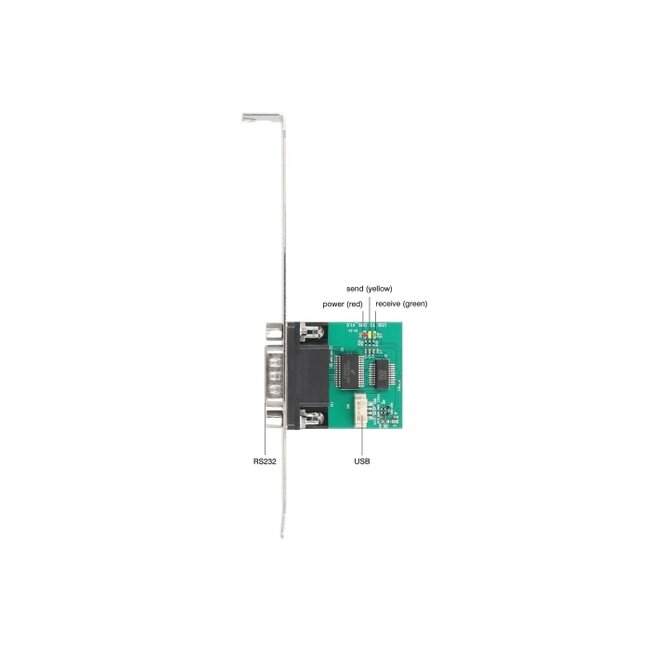

• 3 x LED indicator
• ±15 kV ESD protection for all serial signals
• Operating temperature: -40 °C ~ 85 °C
• Dimensions (LxWxH): ca. 35 x 31 x 15 mm
• Plug & Play
• Cable length without connectors: ca. 30 cm
• Linux Kernel 2.6 or above
• Windows 10/10-64/11
• Motherboard with a free 4 / 5 pin USB 2.0 pin header male
Package content
• USB 2.0 UART converter
• USB connection cables

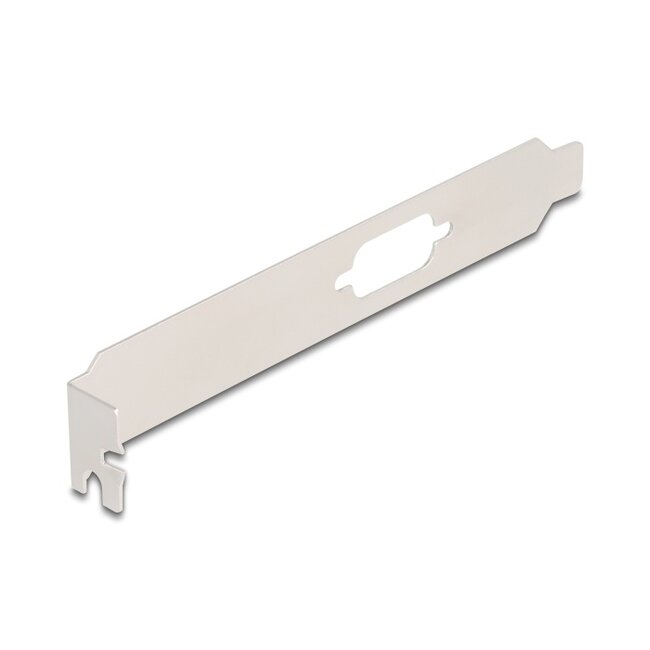

• 1 x standard bracket
