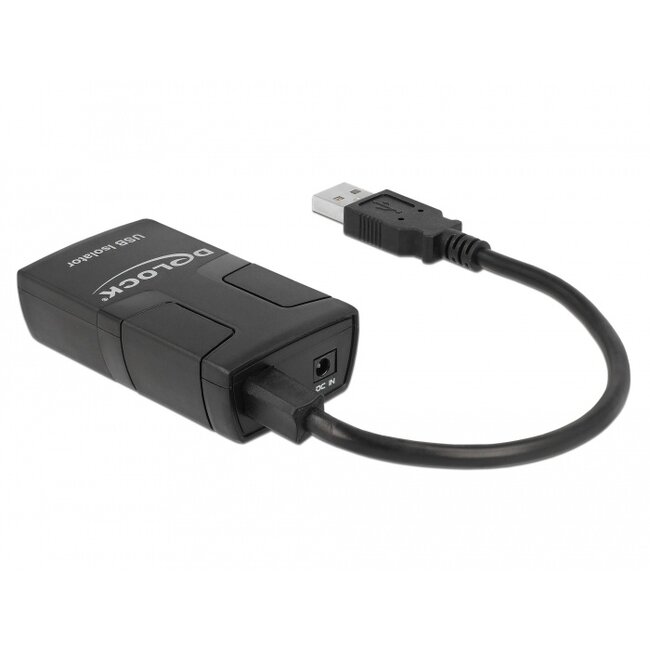

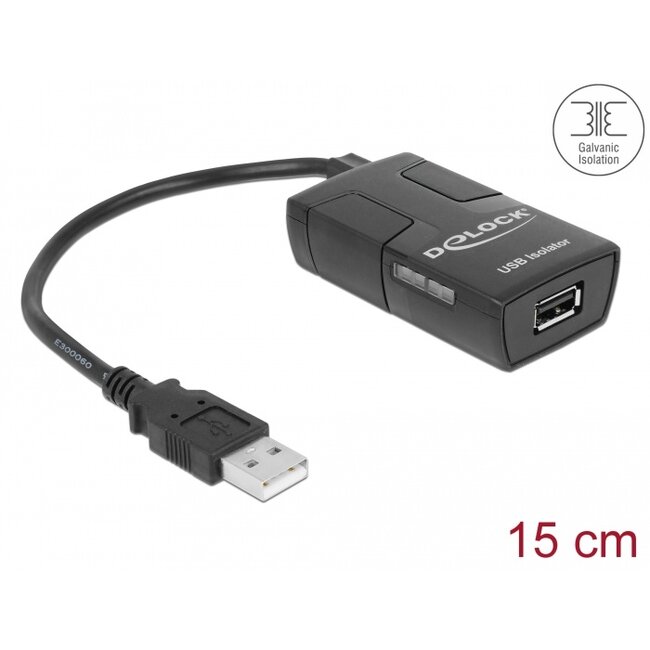

The Delock USB converter separates the electrical connection between Host-PC and USB device. The galvanic isolation avoids the disturbing noises in the audio field and inexact measuring results in the laboratory field. The compact device supports the USB 1.1 specification with Low- and Full-Speed.
Specification• Connector:
1 x USB 1.1 type-A male (host)
1 x USB 1.1 type-A female (device)
1 x DC jack
• Data transfer rate up to Full-Speed 12 Mb/s
• LED indicator for power
• 5 kV optical isolation for data
• 3 kV optical isolation for power
• Power supply: Bus-powered or Self-powered, Bus-powered up to 320 mA
• Operating temperature: -20 °C ~ 50 °C
• Housing material: plastic
• Dimensions (LxWxH): ca. 66 x 39 x 20 mm
• Cable length: ca. 15 cm
• OS independent, no driver installation necessary
Specification of power connector
• 5 V, ground outside, plus inside
• Dimensions:
inside: ø ca. 1.35 mm
outside: ø ca. 3.5 mm
length: ca. 9.5 mm
• PC or notebook with a free USB port
Package content
• Isloator
