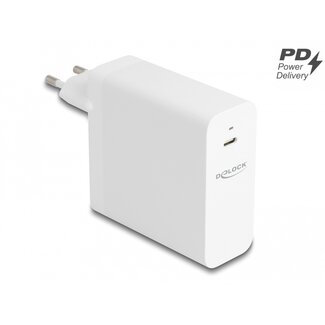

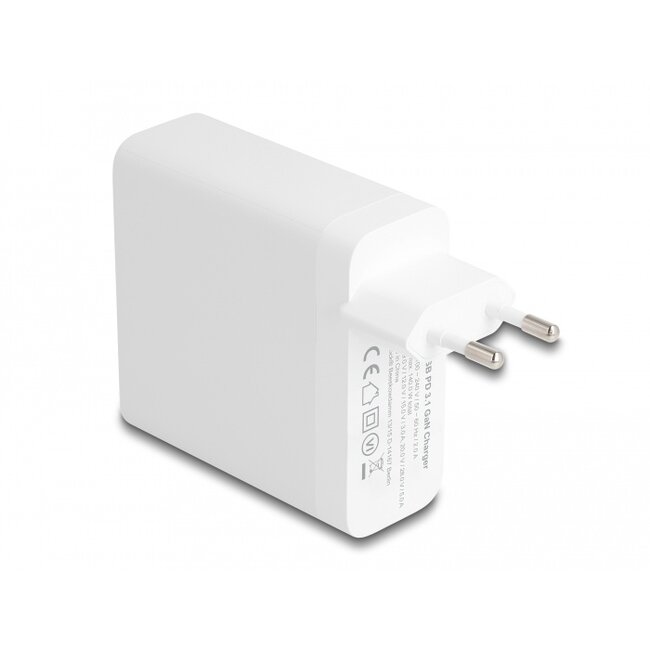

This USB charger by Delock can be used to charge a USB devices. The port is equipped with a USB Type-C™ Power Delivery (PD 3.1), thereby supported devices can be charged with up to 140 watt.
USB-PD Version 3.1
The USB PD 3.1 specification defines the voltage levels 28, 36 and 48 volts with support for Extended Power Range (EPR) with 5 amps each. Due to a calculated maximum power of 240 W (48 V / 5 A), other device classes can be supplied with power in addition to powerful laptops and desktop PCs. The Delock charger features an output power of 28 V and 5 A.
The use of GaN (gallium nitride) transistors increases efficiency compared to conventional silicon technology. Even with very compact dimensions a high output power can be achieved.
Note
For the EPR mode (28, 36, 48 V / 5 A), a USB cable with a corresponding E-marker is mandatory. If this E-marker is not available, max. 3 A are transmitted.
Corresponding cables by Delock are optionally available.
• Connectors:
1 x USB Type-C™ female
1 x plug CEE 7/16
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 2.0 A
• Output:
PD 3.1: 5.0 V / 9.0 V / 12.0 V / 15.0 V / 3.0 A, 20.0 V / 28.0 V / 5.0 A
• Output power: max. 140.0 W total
• Average active efficiency 89.75 %
• Efficiency at low load (10 %) 87.28 %
• No-load power consumption 0.182 W
• USB Power Delivery (PD) 3.1
• Overload protection
• Over current protection
• Overheating protection
• Short circuit protection
• Colour: white
• Dimensions without plug (LxWxH): ca. 113 x 75 x 35 mm
• USB charger
• USB Type-C™ to USB Type-C™ cable, length ca. 1 m
• User manual
