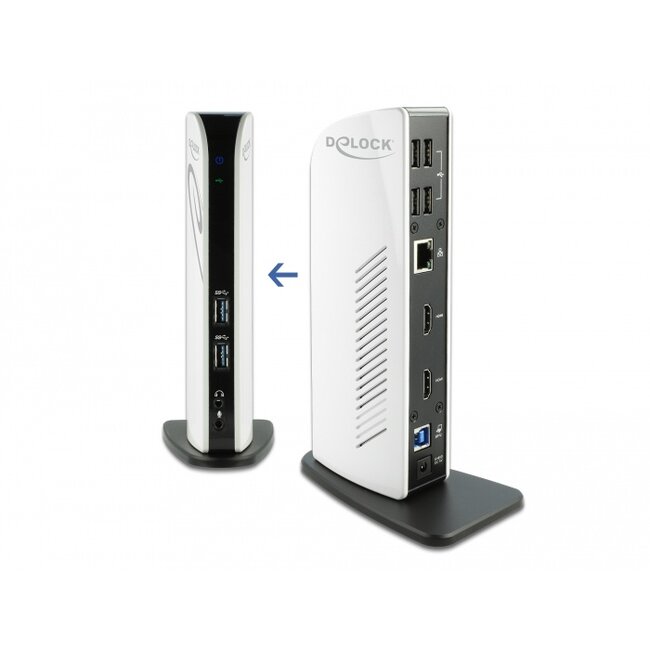

This docking station by Delock can be connected to a computer with a USB-C™ or USB Type-A port and provides a variety of interfaces. Two monitors can be operated simultaneously at the HDMI output ports. Four built-in USB 2.0 ports and two USB 3.2 Gen 1 ports allow the use of peripherals, and connections for microphone and speaker and Gigabit network complete the features.
Full-HD resolution
Full-HD (1080p) resolution is possible when using only one monitor and also when using both HDMI outputs at the same time.
Extended screen by Displaylink
Due to the Displaylink graphics chipset it is possible to use mirrored and extended screen functions on Windows and Mac OS operating systems.

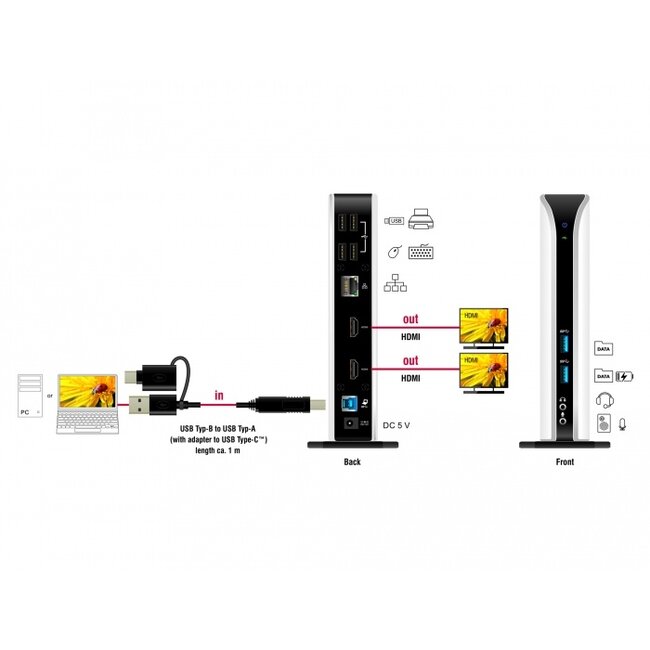

• Connectors:
front side:
1 x SuperSpeed USB (USB 3.2 Gen 1) Type-A female
1 x SuperSpeed USB (USB 3.2 Gen 1) Type-A female - Battery Charging specification
BC1.2
1 x microphone 3.5 mm stereo jack
1 x speaker 3.5 mm stereo jack
back side:
1 x SuperSpeed USB (USB 3.2 Gen 1) Type-B female
1 x DC 5 V power connector
2 x HDMI-A female
1 x Gigabit LAN 10/100/1000 Mbps RJ45 jack
4 x USB 2.0 Type-A female
• Maximum resolution (depending on the system and the connected hardware):
Single display: up to 2560 x 1440 @ 50 Hz
Dual display: up to 2048 x 1152 @ 60 Hz
• Transmission of audio and video signals
• Functions: Mirrored or Extended (under Windows only one display can be mirrored,
the second one is extended)
• Colour: black / white
• Dimensions without stand (LxWxH): ca. 190 x 78 x 38 mm
Power supply specification
• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.8 A
• Output: 5 V / 4 A
• Ground outside, plus inside
• Dimensions:
inside: ø ca. 1.7 mm
outside: ø ca. 4.75 mm
length: ca. 9.5 mm
• Mac OS 10.15.5 or above
• Windows 8.1/8.1-64/10/10-64/11
• PC or laptop with a free USB Type-A port or
• PC or laptop with a free USB Type-C™ port
Package content
• USB docking station
• Cable USB Type-B male to USB Type-A male (with adapter to USB Type-C™ male),
length ca. 1 m
• Power supply
• User manual
