This docking station by Delock can be connected to a computer with a USB-C™ or USB Type-A port and provides a variety of interfaces. Two monitors can be operated simultaneously at the DisplayPort output ports. Six built-in USB 3.2 Gen 1 ports allow the use of peripherals, and connections for microphone and speaker and Gigabit network complete the features.
4K 60 Hz UHD resolution
Ultra-HD (4K) resolution is possible when using only one monitor and also when using both DisplayPort outputs at the same time. There is no DisplayPort Alternate Mode support required.
Extended screen by Displaylink
Due to the Displaylink graphics chipset it is possible to use mirrored and extended screen functions on Windows and Mac OS operating systems.
• Connectors:

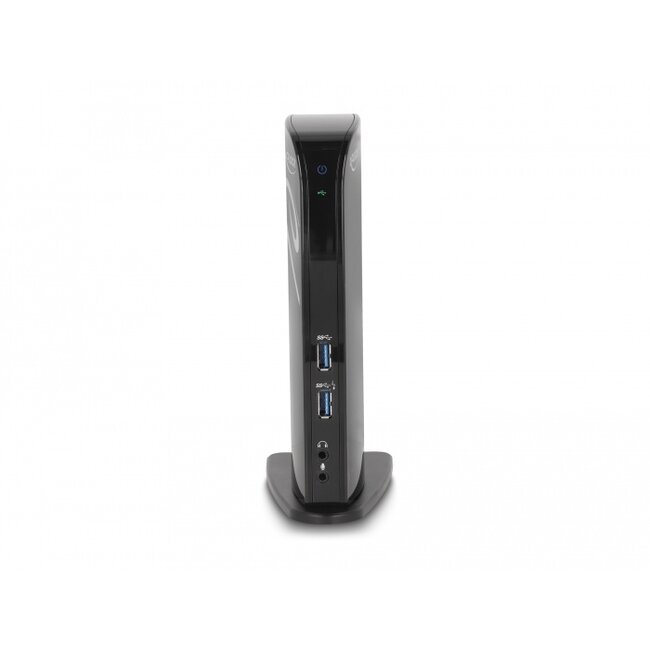

front side:
1 x SuperSpeed USB 5 Gbps (USB 3.2 Gen 1) Type-A female
1 x SuperSpeed USB 5 Gbps (USB 3.2 Gen 1) Type-A female - Battery Charging
specification BC1.2
1 x microphone 3.5 mm stereo jack
1 x speaker 3.5 mm stereo jack

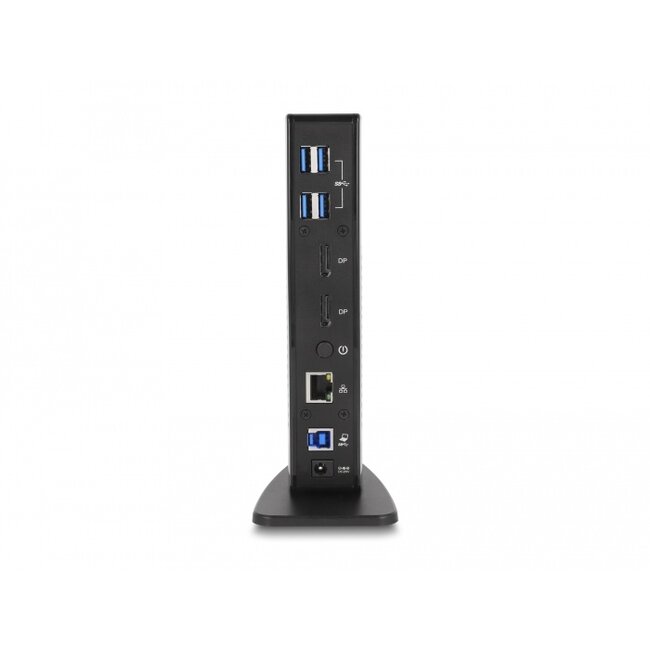

back side:
4 x SuperSpeed USB 5 Gbps (USB 3.2 Gen 1) Type-A female
2 x DisplayPort female
1 x Gigabit LAN 10/100/1000 Mbps RJ45 jack
1 x SuperSpeed USB 5 Gbps (USB 3.2 Gen 1) Type-B female
1 x DC 20 V power connector
• Maximum resolution (depending on the system and the connected hardware):
Single display: up to 3840 x 2160 @ 60 Hz
Dual display: up to 3840 x 2160 @ 60 Hz
• Transmission of audio and video signals
• Functions: Mirrored or Extended
• 1 x On / Off switch
• Colour: black
• Dimensions without stand (LxWxH): ca. 190 x 78 x 38 mm
Power supply specification
• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 1.3 A
• Output: 20 V / 2.25 A
• Ground outside, plus inside
• Dimensions:
inside: ø ca. 1.7 mm
outside: ø ca. 4.75 mm
length: ca. 9.5 mm
• Mac OS 12.0.1 or above
• Windows 8.1/8.1-64/10/10-64/11
• PC or laptop with a free USB Type-A port or
• PC or laptop with a free USB Type-C™ or Thunderbolt™ 3 port

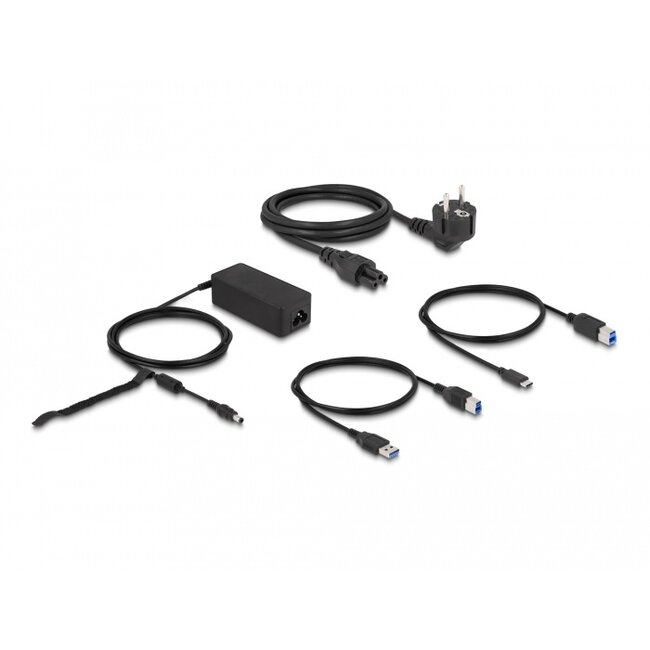

Package content
• USB docking station
• Cable USB Type-A male to Type-B male, length ca. 1 m
• Cable USB-C™ male to USB Type-B male, length ca. 1 m
• Power supply
• User manual
