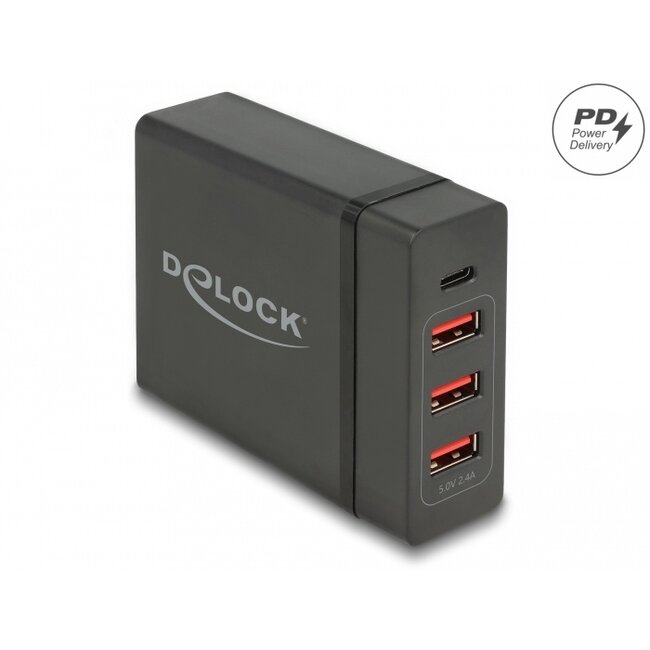

This USB Power Delivery (PD) charger by Delock can be used to charge laptops with USB Type-C™ connector. It provides various voltages from 5 V to 20 V and power up to 60 Watt. In addition, 3 USB Type-A 5 V connectors with intelligent charging technology are available for conventional devices.

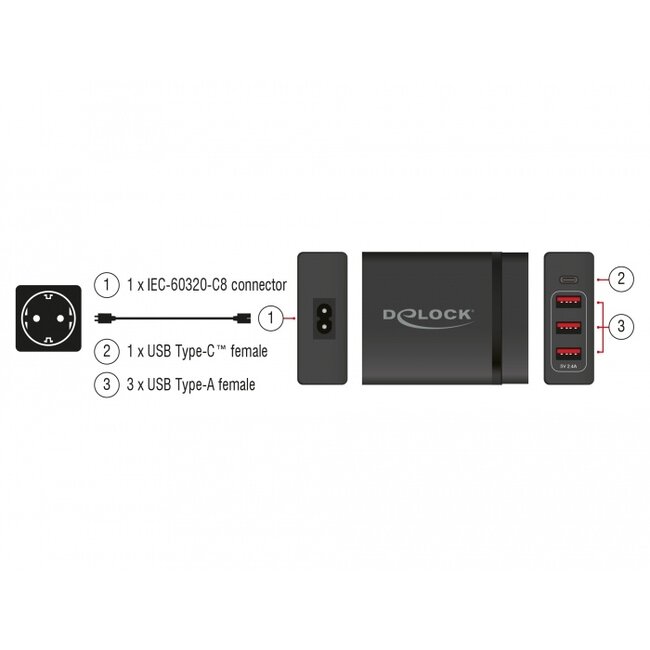

Specification• Connectors:
1 x USB Type-C™ female
3 x USB Type-A female

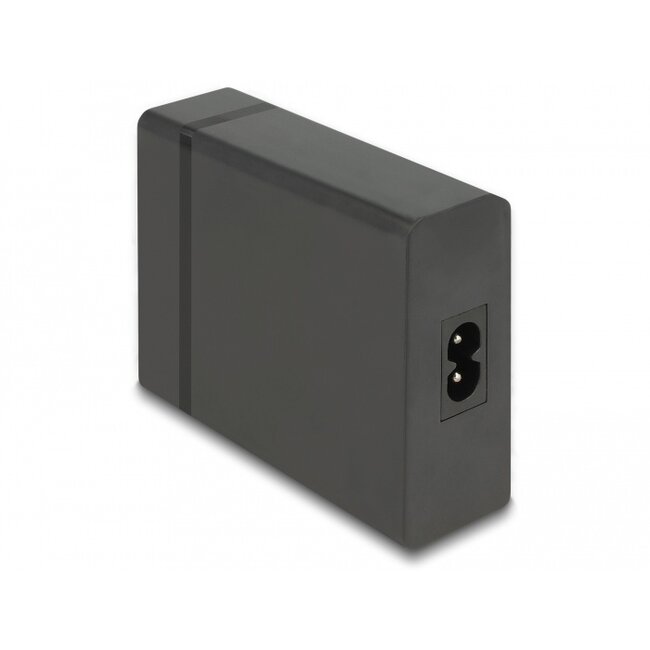

1 x IEC-60320-C8 connector
• Input:
AC 100 ~ 240 V / 50 ~ 60 Hz / 1.5 A
• Output:
USB Type-C™ 5.0 V / 9.0 V / 12.0 V / 15.0 V / 20.0 V 3.0 A (max. 60.0 W)
USB Type-A 5.0 V / 2.4 A (max. 12.0 W)
• Output power: max. 72.0 W total
• Average active efficiency 84.49 % (5.0 V / 3.0 A + 5.0 V / 2.4 A)
• Average active efficiency 88.57 % (20.0 V / 3.0 A + 5.0 V / 2.4 A)
• Efficiency at low load (10 %) 78.99 % (5.0 V / 3.0 A + 5.0 V / 2.4 A)
• Efficiency at low load (10 %) 80.53 % (20.0 V / 3.0 A + 5.0 V / 2.4 A)
• No-load power consumption 0.187 W
• USB Power Delivery (PD) 3.0
• Overload protection
• Over current protection
• Overheating protection
• Short circuit protection
• Operating temperature: 0 °C ~ 40 °C
• Storage temperature: -20 °C ~ 80 °C
• Colour: black
• Dimensions (LxWxH): ca. 91.0 x 75.0 x 27.5 mm
• Device with a free USB port
• Connection cables
Package content
• USB charging station

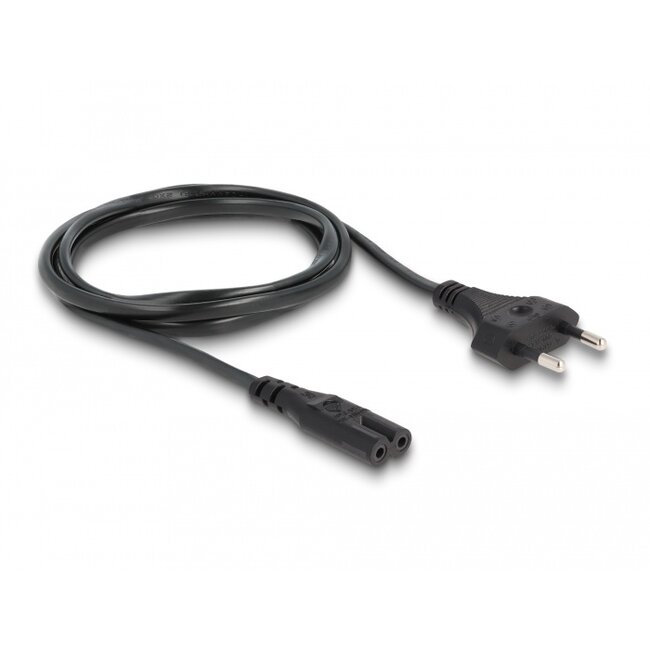

• Power cord, length ca. 1.2 m
• User manual
