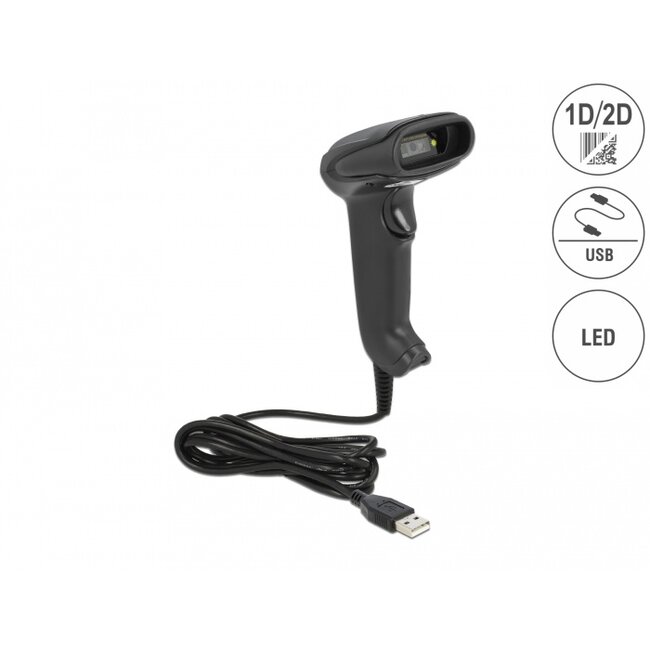

This barcode scanner by Delock can be connected directly to a PC or laptop. Alternatively, an adapter can be used to connect the scanner to a mobile phone or tablet. All common 1D and 2D barcode types can be precisely captured even at long distances. Additionally, the scanner recognizes barcodes displayed on displays and monitors.
Automatic adaptation to ambient brightness
The scanner automatically adapts to the ambient brightness and captures up to 30 scans per second under optimal lighting conditions.

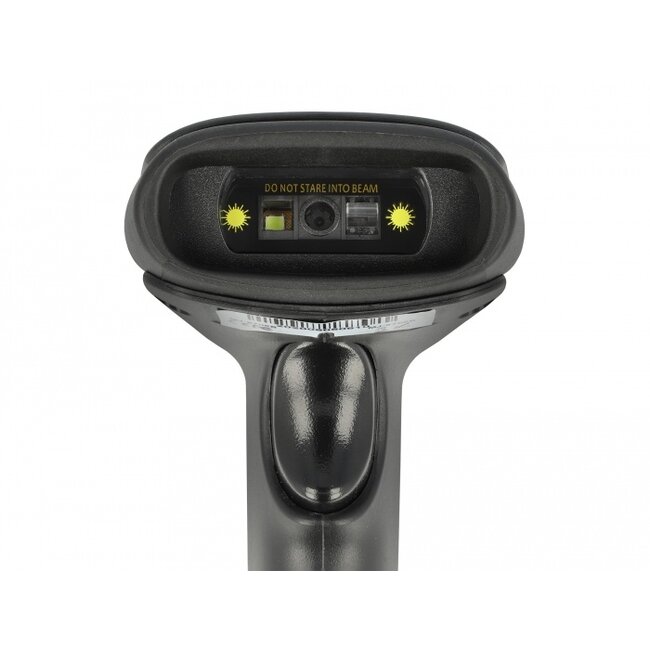

In low ambient brightness, the barcode is illuminated by an additional white LED and can therefore also be used in poor lighting conditions.
Transmission via USB
The data transfer of the scanned barcodes is done via the included USB cable.
Fixed connection

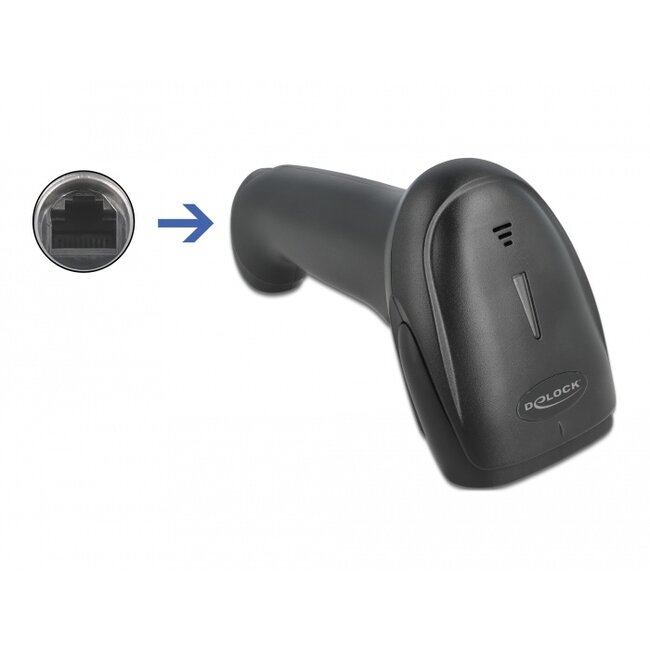

The USB cable will be connected to the scanner via RJ50 plug. The connection is flush, so that the cable can only be removed using with the included ejection tool. Thus there is always a firm connection between the scanner and the system.
Note
This scanner is intended exclusively for the output of the German keyboard.
• Connector: 1 x RJ50 jack
• Decoding chip: ARM Cortex 32 Bit
• Resolution: max. 640 x 480
• Trigger: scan button
• Reading distance: ca. 30 mm to 350 mm
• Reading accuracy: 4 mil
• Light colour: visible LED red
• Compensation light: LED white
• Sensor: CMOS image sensor
• Scan rate: up to 30 scans per second
• Scan angle: 44°
• Surrounding brightness: max. 100000 Lux
• Input voltage: 5 V
• Current consumption:
operation: max. 262 mA
standby: max. 75 mA
• Operating temperature: -20 °C ~ 60 °C
• Storage temperature: -30 °C ~ 70 °C
• Relative humidity: 5 - 95 % (non condensing)
• Colour: black
• Weight: ca. 150 g
• Dimensions (LxWxH): ca. 160 x 90 x 65 mm
• Cable length incl. connector: ca. 1.5 m
• Scancodes:
Code 128
Code 39
Interleaved 2 of 5
EAN-8 / EAN-13
ISBN - 13
Data Matrix
Micro QR
PDF417
QR Code
• Android 9.0 or above
• iPad Pro (2018)
• Linux Kernel 5.4 or above
• Mac OS 10.15.5 or above
• Windows 8.1/8.1-64/10/10-64
• PC or laptop with a free USB Type-A port
Package content
• Barcode scanner

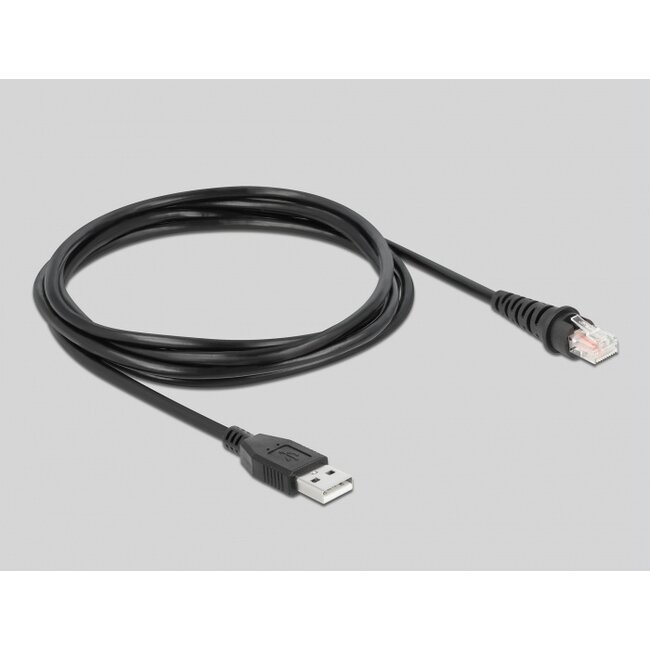

• USB Type-A to RJ50 cable, length ca. 1.5 m
• Ejection tool
• User manual
