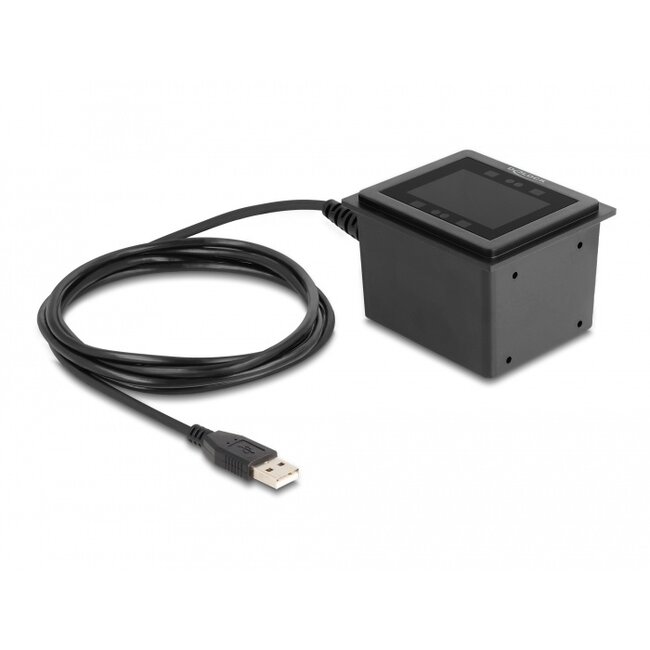

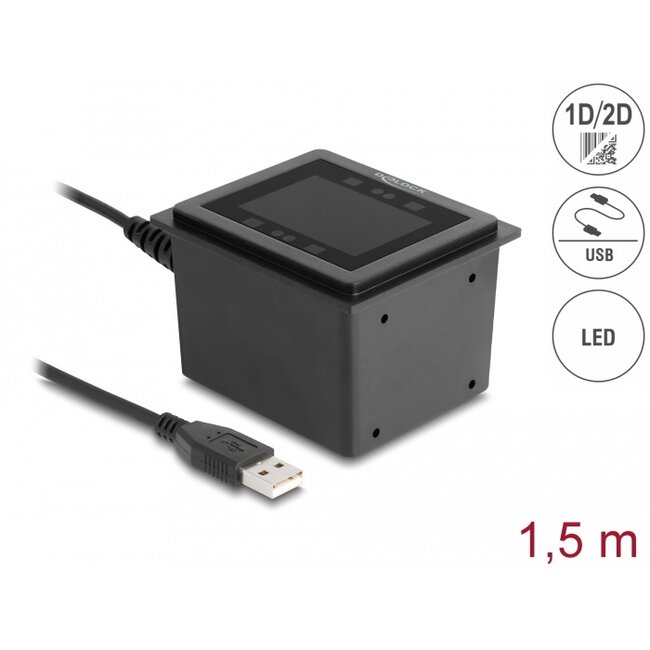

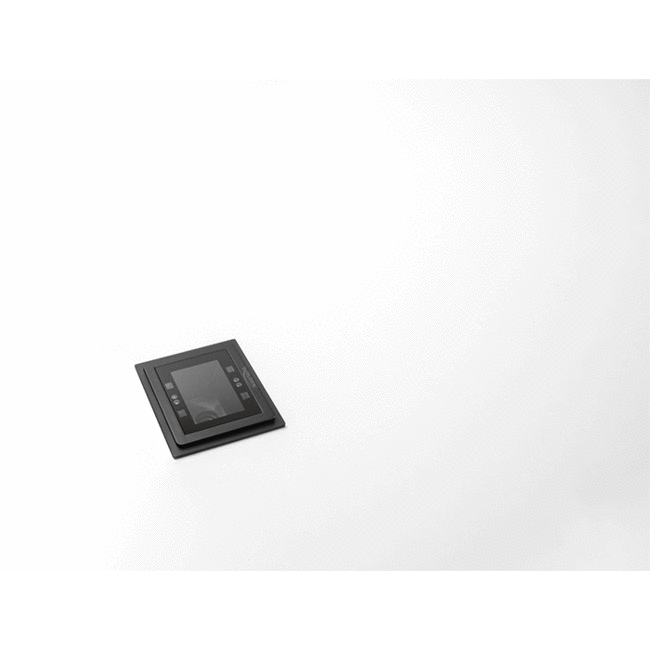

This stationary barcode scanner by Delock is ideal for space-saving installation in a table top and connection to the system. It is also ideal for use in access control, for example in a digitalised turnstile. All common 1D and 2D barcode types can also be precisely captured from the smartphone.
Automatic adaptation to ambient brightness
The scanner automatically adapts to the ambient brightness and captures up to 60 scans per second under optimal lighting conditions.
In low ambient brightness, the barcode is illuminated by an additional white LED and can therefore also be used in poor lighting conditions.
Transmission via USB
The data transfer of the scanned barcodes is done via the included USB cable.
Note
This scanner is intended exclusively for the output of the German keyboard.

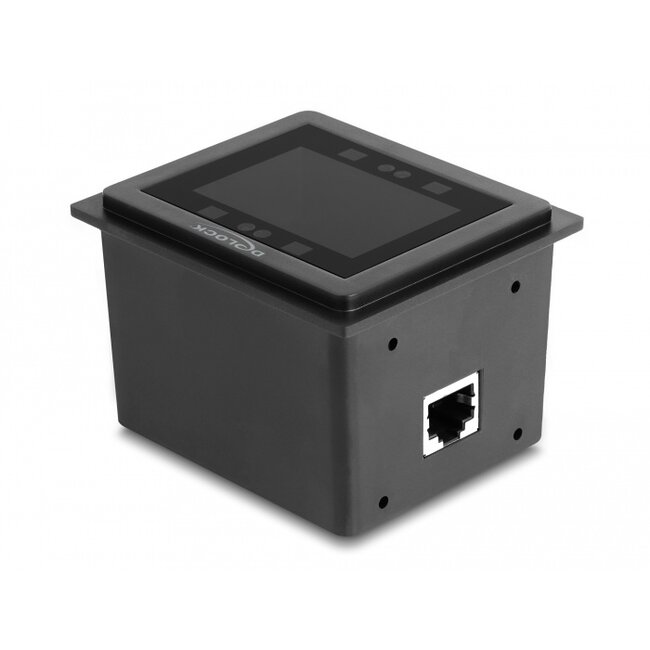

• Connector: 1 x RJ50 jack
• Decoding chip: ARM Cortex 32 Bit
• Resolution: 752 x 480
• Trigger: presentation mode
• Reading distance: ca. 50 mm to 250 mm
• Reading accuracy: 5 mil

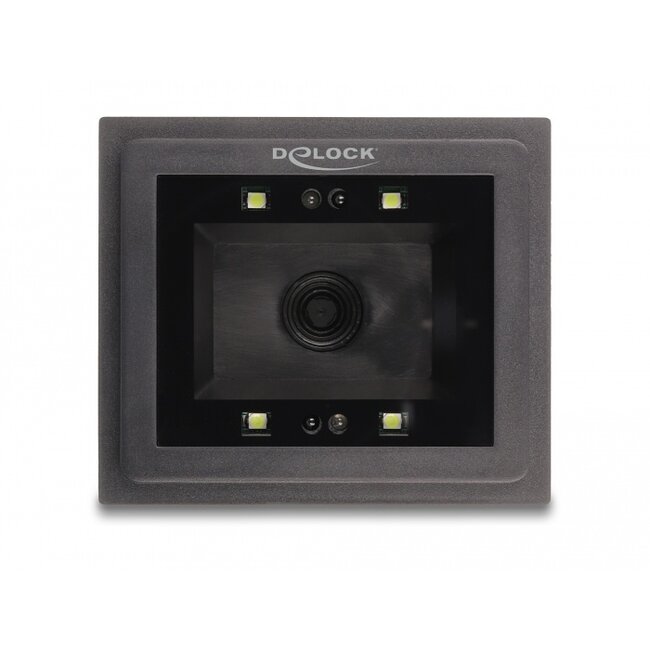

• Compensation light: LED white
• Sensor: CMOS image sensor
• Scan rate: up to 60 scans per second
• Surrounding brightness: max. 100000 Lux
• Input voltage: 5 V
• Current consumption:
operation: max. 100 mA
standby: max. 30 mA
• Operating temperature: -10 °C ~ 50 °C
• Storage temperature: -10 °C ~ 50 °C
• Relative humidity: 5 - 95 % (non condensing)
• Colour: black
• Weight: ca. 173 g
• Dimensions (LxWxH): ca. 78 x 67 x 52 mm
• Cable length without connectors: ca. 1.5 m
• 2.4 GHz
• Scancodes:
Code 128
Code 39
EAN-8 / EAN-13
ISBN - 13
Data Matrix
Micro QR
PDF417
QR Code
• Mac OS 12.4 or above
• Windows 8.1/8.1-64/10/10-64/11
• PC or laptop with a free USB Type-A port
Package content
• Barcode scanner

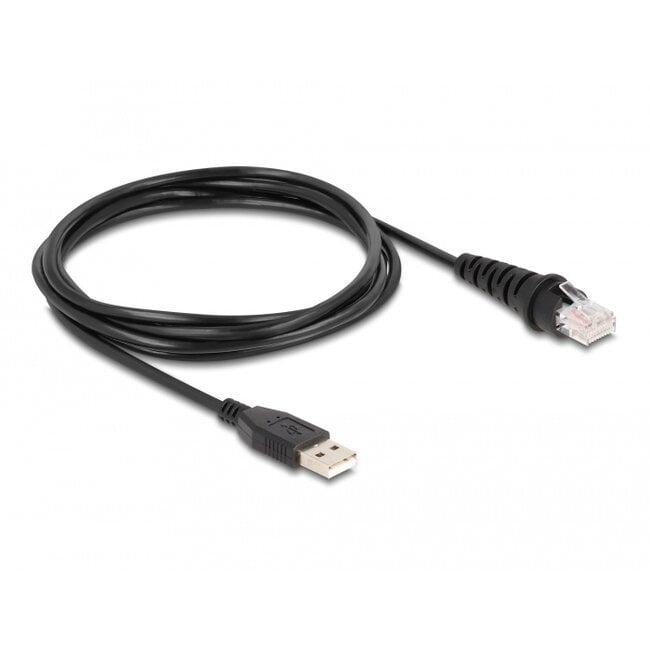

• USB data cable
• User manual
