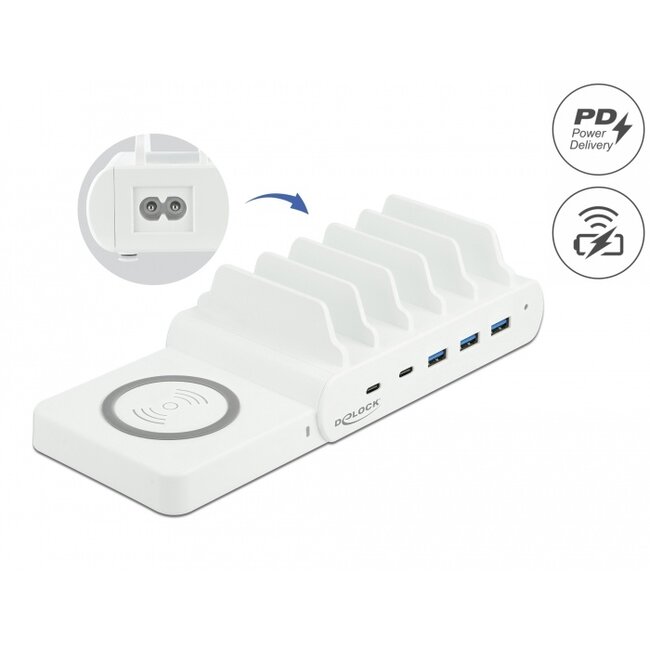

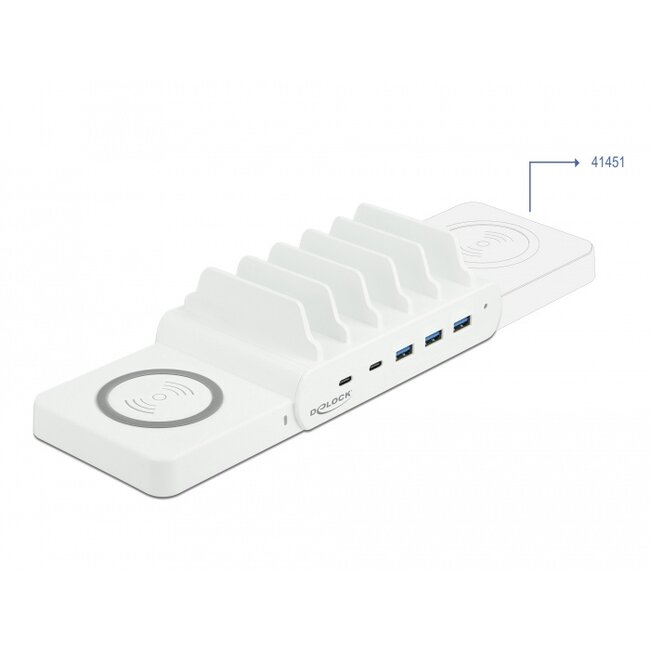

This USB Power Delivery (PD) charger by Delock can be used to charge laptops with USB Type-C™ connector. It provides various voltages from 5 V to 20 V and power up to 100 watt. In addition, three USB Type-A connectors with fast charging technology are available for smartphones.

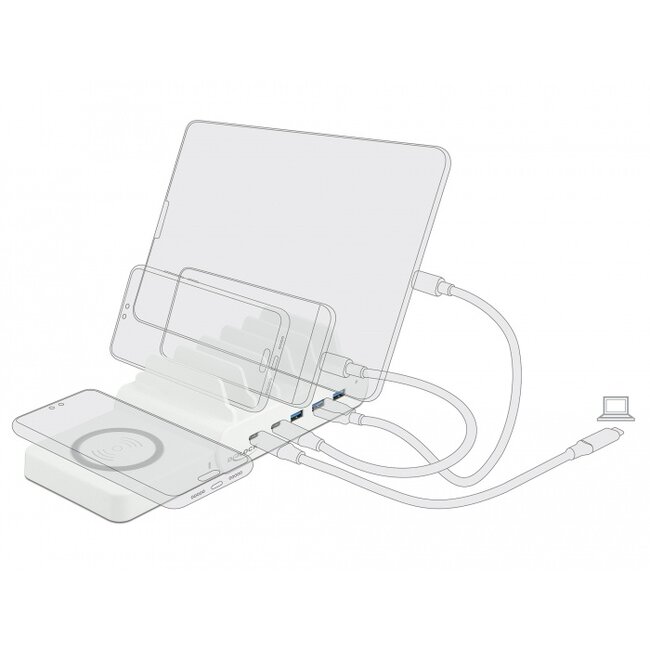

Integrated holders
The holders allow several devices, such as smartphones or tablets, to be placed on the charging station to save space.
Wireless fast charging
The charger supports fast charging of up to 15 W with appropriately equipped smartphones.
Note
For charging with 100 W a suitable USB-C PD cable with 5 A is required.
• Connectors:
2 x USB Type-C™ female
3 x USB Type-A female

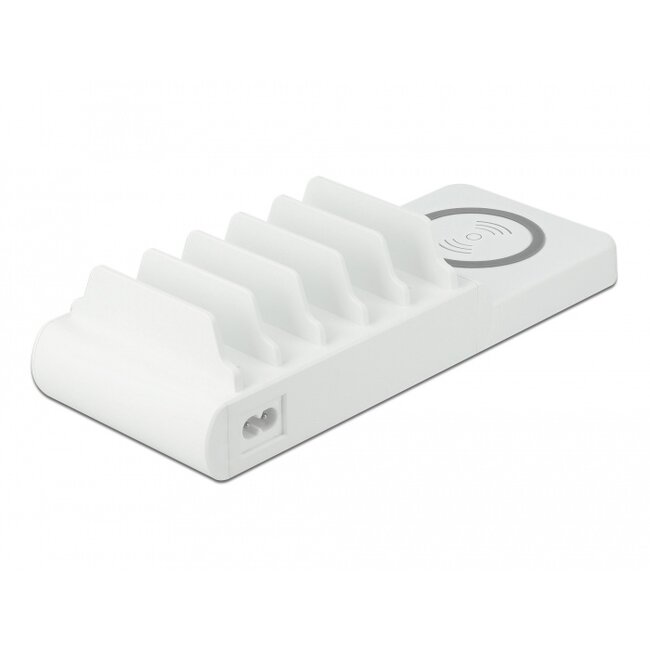

1 x IEC-60320-C8 connector
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 2.4 A
• Output:
USB-C™ 5.0 V / 9.0 V / 12.0 V / 15.0 V 3.0 A, 20.0 V 5.0 A (max. 100.0 W)
USB-A 3.6 - 15.0 V 3.0 A, 16.0 V - 20.0 V 3.5 A (max. 70.0 W)
• Output power: max. 110.0 W total
• Wireless charging: 5.0 W / 7.5 W / 10.0 W / 15.0 W
• Frequency range: 110 - 205 kHz
• Transmission power: max. 15 W
• Average active efficiency 86.69 %
• Efficiency at low load (10 %) 84.94 %
• No-load power consumption 0.24 W
• Overload protection
• Over current protection
• Overheating protection
• Short circuit protection
• Colour: white
• Dimensions (LxWxH): ca. 236 x 95 x 56 mm
• USB charging station
• Wireless charging module

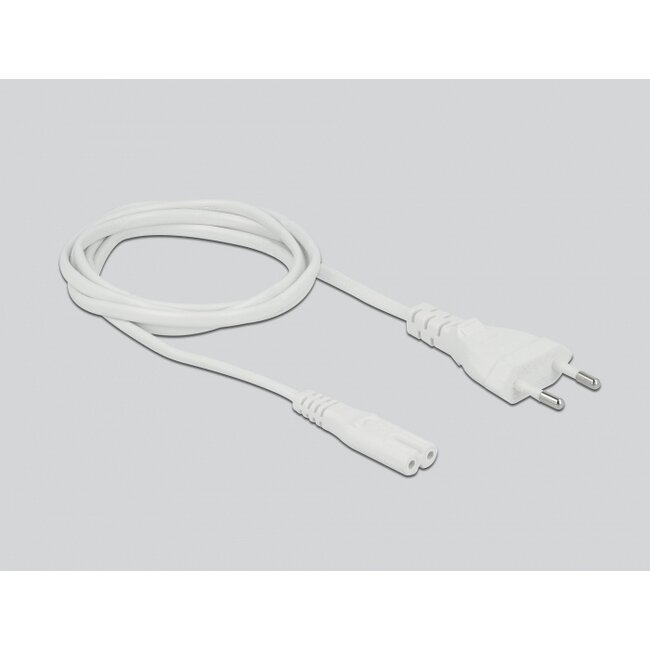

• Power cord, length ca. 1.5 m
• User manual
