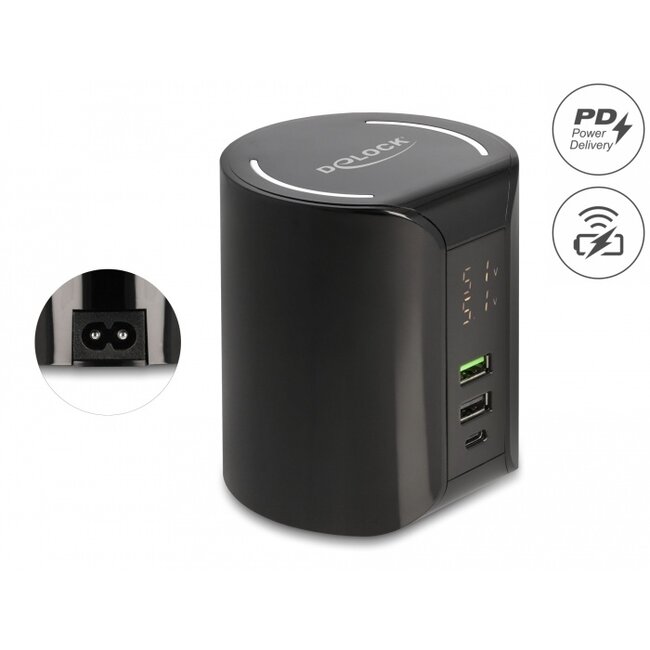

This USB Power Delivery (PD) charger by Delock can be used to charge smartphones and tablets. It provides various voltages from 5 V to 12 V on the USB Type-C™ port and power up to 58 watt. In addition, one USB Type-A port with fast charging technology and one USB Type-A port with 2.4 A are available.

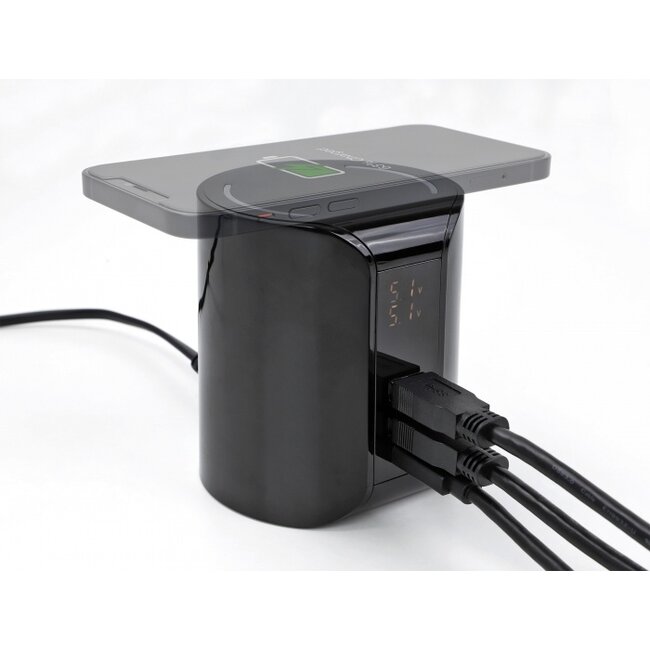

Wireless fast charging
The charger supports fast charging up to 10 W with appropriately equipped smartphones. For this purpose, the smartphone can be placed on top of the charging station’s charging area.
Simultaneous charging of multiple devices
All charging ports, as well as the wireless charging unit, can be used at the same time. This allows up to four devices to be supplied with power at the same time.

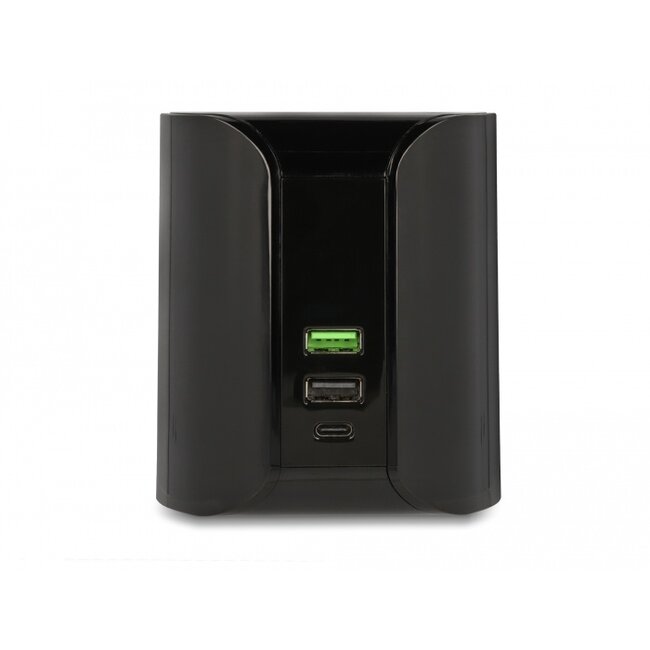

• Connectors:
1 x USB Type-C™ female
2 x USB Type-A female

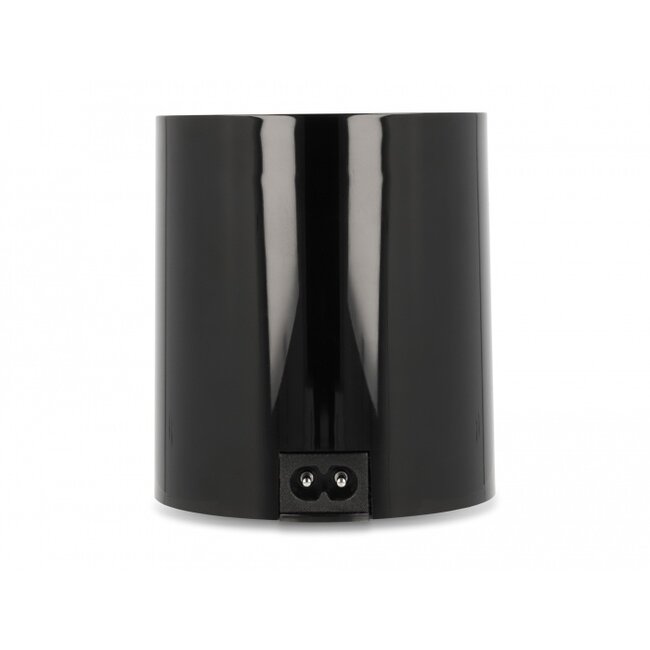

1 x IEC-60320-C8 connector
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.5 A
• Output:
USB-A (above) 5.0 V / 9.0 V / 12.0 V (max. 18.0 W)
USB-A (middle) 5.0 V / 2.4 A (max. 12.0 W)
USB-C™ 5.0 V / 9.0 V / 12.0 V (max. 18.0 W)
• Wireless charging: 5.0 W / 7.5 W / 10.0 W
• Output power: max. 58.0 W total
• Average active efficiency 79.22 % (5.0 V / 3.0 A)
• Average active efficiency 82.32 % (5.0 V / 2.4 A)
• Average active efficiency 85.18 % (9.0 V / 2.0 A)
• Average active efficiency 85.82 % (12.0 V / 1.5 A)
• Efficiency at low load (10 %) 78.97 % (5.0 V / 3.0 A)
• Efficiency at low load (10 %) 80.65 % (5.0 V / 2.4 A)
• Efficiency at low load (10 %) 75.41 % (9.0 V / 2.0 A)
• Efficiency at low load (10 %) 72.44 % (12.0 V / 1.5 A)
• No-load power consumption 0.1 W
• Short circuit protection

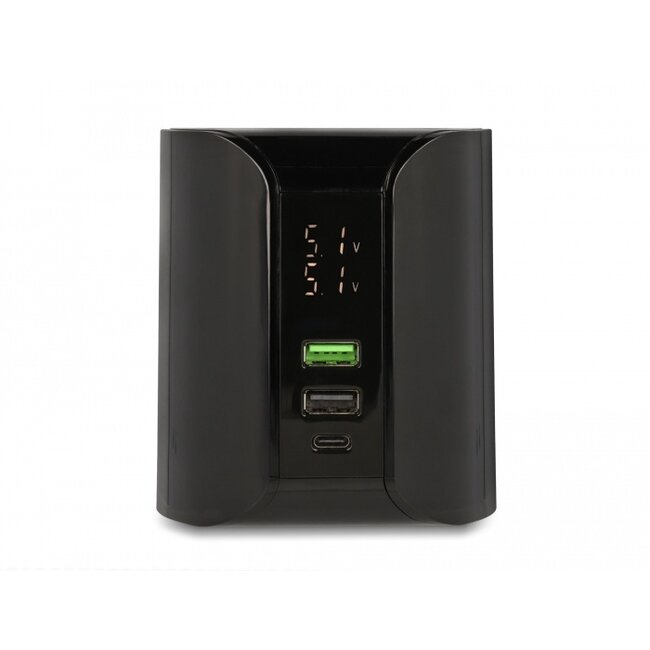

• 2 x LED indicator
• LED illumination on the top
• Colour: black
• Dimensions (LxWxH): ca. 86 x 83 x 100 mm
• USB charging station
• Power cord, length ca. 1.2 m
• User manual
