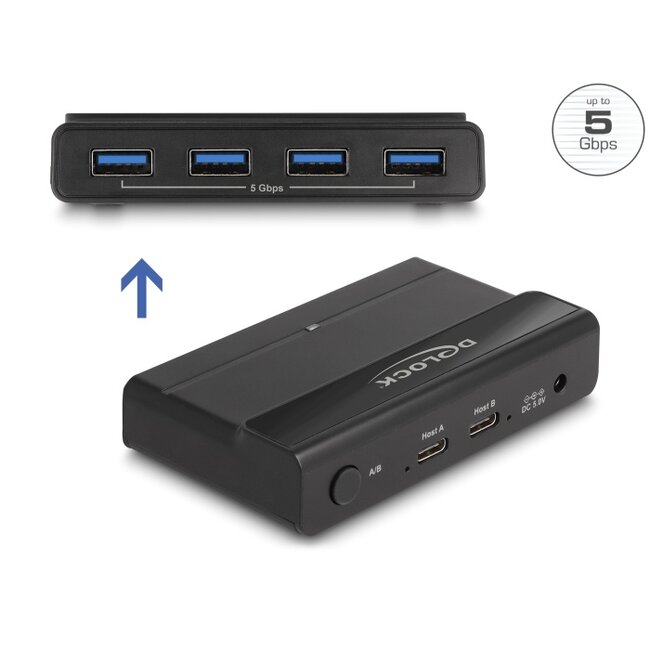

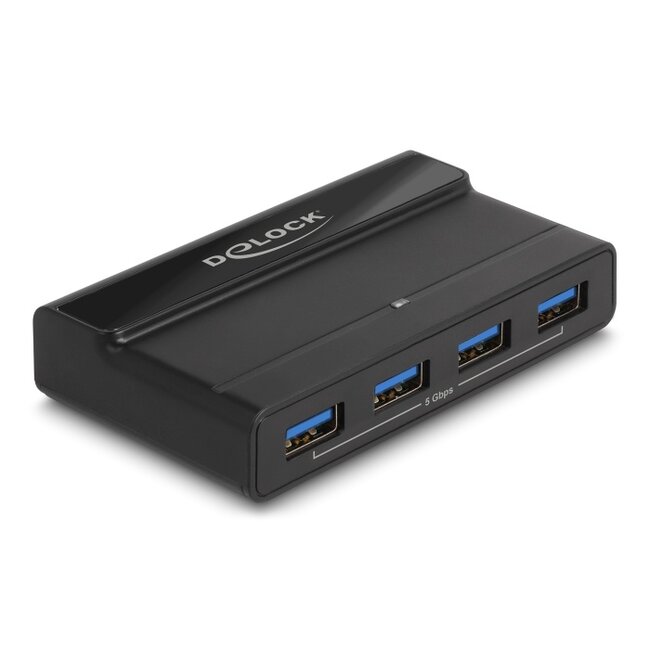

This USB switch by Delock can be used with two computers to access four USB devices. For example, if a printer is connected, it can be selected by the button on the switch, which of the computers is connected to the printer. This connection can be switched at any time.
Connecting cable in package content
The cables to connect to the two computers are included in the package. There is an adapter on the host side of the cable, so a connection to a USB-C™ or USB-A port is possible.
Furthermore, a power cable for optional power supply is included in the package. This is necessary if a power supply via the host devices is insufficient.

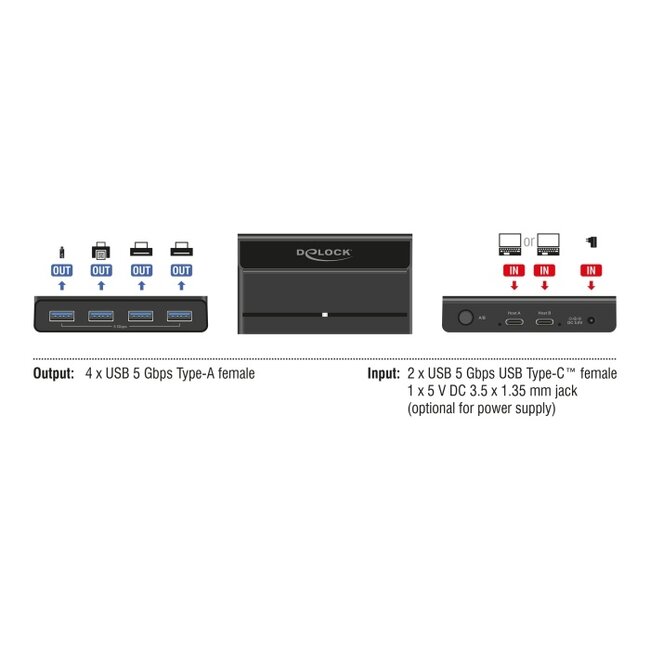

• Connectors:
Input:
2 x USB 5 Gbps USB Type-C™ female
1 x 5 V DC 3.5 x 1.35 mm jack (optional for power supply)
Output:
4 x USB 5 Gbps Type-A female
• 1 x button
• 3 x LED indicator
• Data transfer rate up to 5 Gbps
• Downwards compatible to USB 2.0
• Bootable
• Plug & Play
• Colour: black
• Dimensions (LxWxH): ca. 92 x 54 x 19 mm
• Android 11.0 or above
• Chrome OS
• Linux Kernel 5.15 or above
• Mac OS 13.1 or above
• Windows 10/10-64/11
• iPad Air (4th Generation) or above
• iPad Pro (3rd Generation) or above
• Surface Pro 7
• A free USB Type-A female port or
• A free USB Type-C™ female port
Package content
• USB 5 Gbps Switch
• 2 x Cable USB-C™ male to USB-C™ male (with adapter to USB Type-A male), length ca. 1 m
• 1 x Cable DC male to USB Type-A male, length ca. 1.5 m
• User manual
