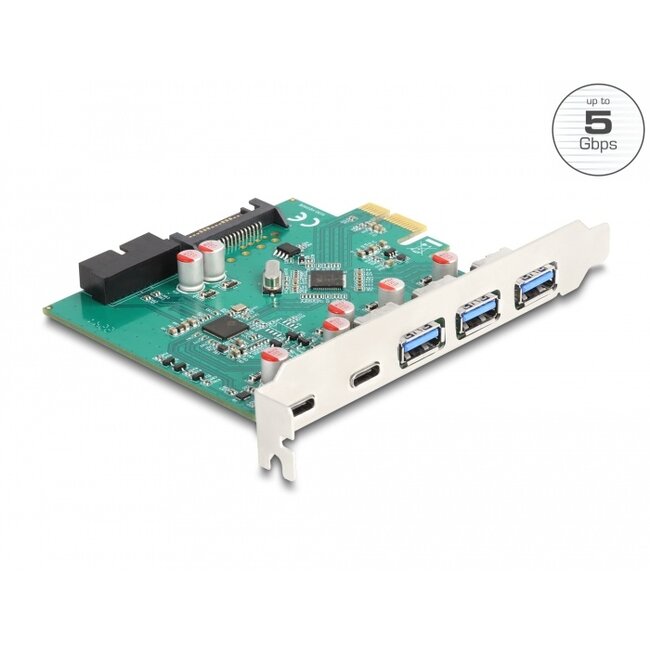

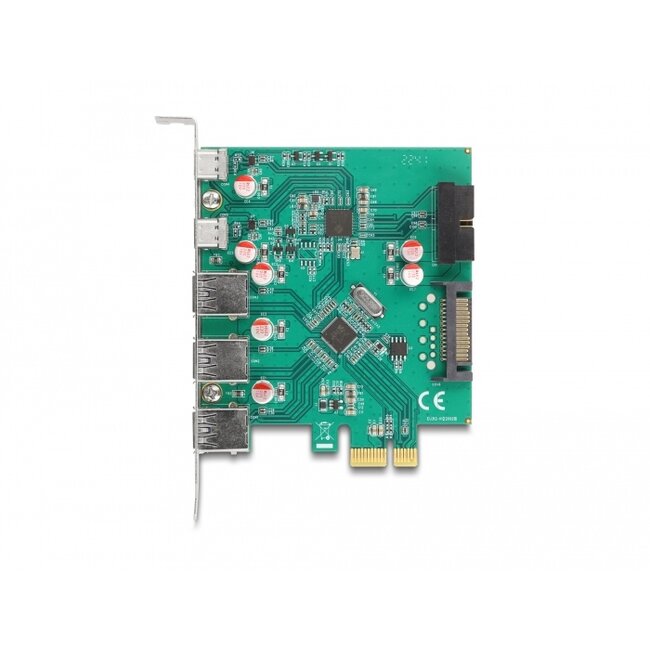

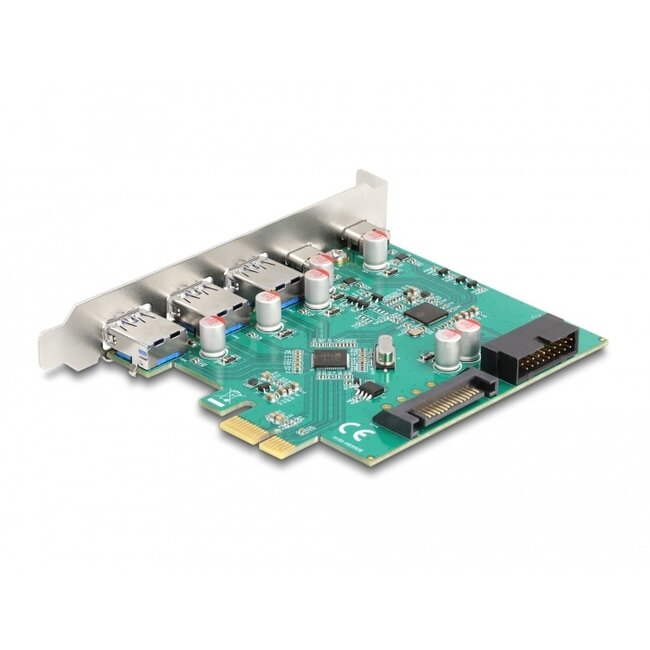

This PCI Express card by Delock expands the PC by three external Type-A and two external USB Type-C™ ports as well as one internal 19 pin USB pin header male port. Different USB devices such as USB flash memory, card reader, external enclosure etc. can be connected. A maximum data transfer rate of up to 5 Gbps can be reached.
Specification• Connectors:
external:
3 x USB 5 Gbps Type-A female
2 x USB 5 Gbps USB Type-C™ female
internal:
1 x 19 pin USB 5 Gbps pin header male
1 x SATA 15 pin power connector
1 x PCI Express x1, V2.0
• Chipset: VIA VL805, Genesys Logic GL3510
• Data transfer rate up to 5 Gbps
• Power supply via SATA power connector
• Electrical power per port: max. 4.5 watt (5 V / 900 mA)
• Supports eXtensible Host Controller Interface (xHCI) specification 1.1
• Supports UASP
• Supports Multiple INs
• Bootable
• Linux Kernel 5.15 or above
• Windows 10/10-64/11
• PC with one free PCI Express slot
• Power supply with a free SATA power connector
Package content
• PCI Express card USB 5 Gbps
• User manual
