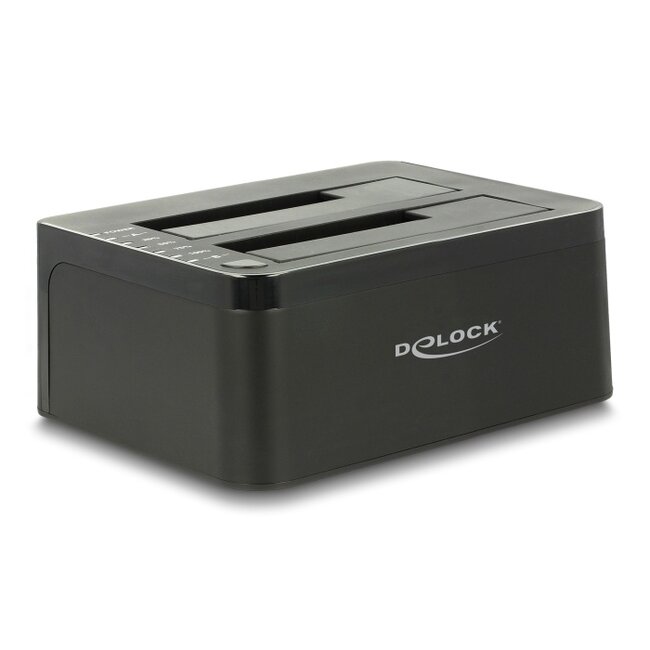

This HDD / SSD docking station by Delock enables an external connection of two 2.5″ or 3.5″ SATA HDDs / SSDs through the USB interface. This solution does not requires an external enclosure since the HDD / SSD will be plugged into the docking station directly. Furthermore the clone function enables to copy the content of one HDD to another without using a PC.

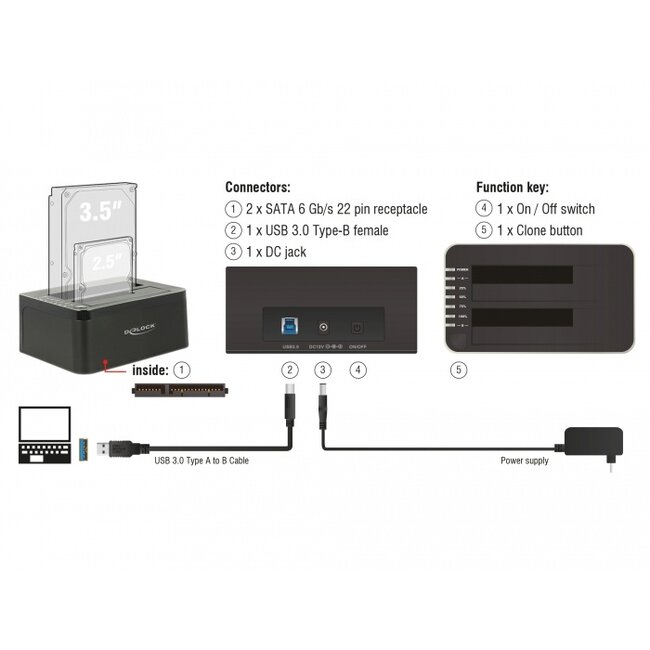

Specification• Connectors:
2 x SATA 6 Gb/s 22 pin receptacle

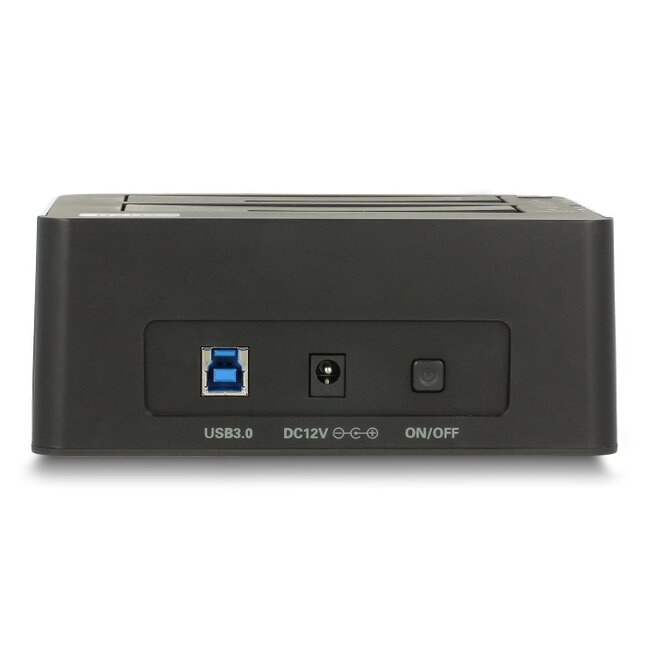

1 x USB 5 Gbps Type-B female
1 x DC jack
• Function key:
1 x Clone button
1 x On / Off switch
• For 2.5″ and 3.5″ SATA HDD / SSD
• Suitable for all SATA HDDs / SSDs up to SATA 6 Gb/s
• Data transfer rate up to 5 Gbps
• LED indicator for power, access and copy status
• Dimensions (LxWxH): ca. 149 x 114 x 61 mm
• Plug & Play

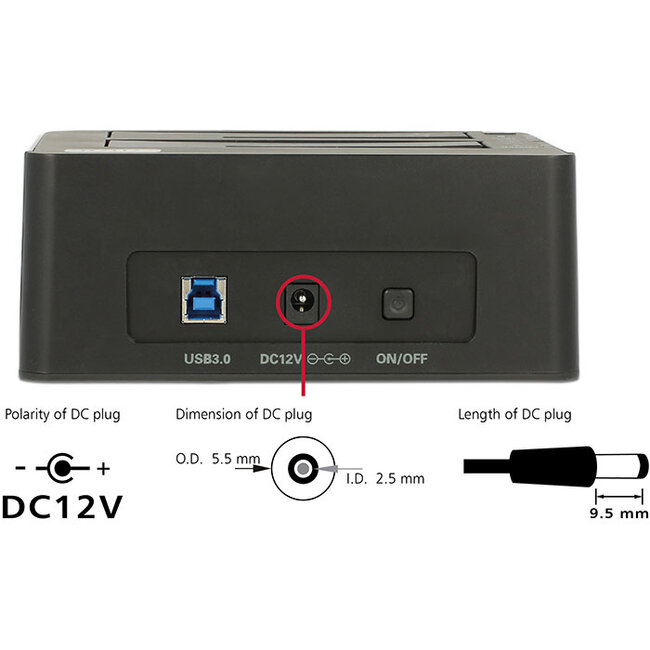

Power supply specification
• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 1.5 A
• Output: 12 V / 3 A
• Ground outside, plus inside
• Dimensions:
inside: ø ca. 2.5 mm
outside: ø ca. 5.5 mm
length: ca. 9.5 mm
• Linux Kernel 3.7 or above
• Mac OS 10.7 or above
• Windows Vista/Vista-64/7/7-64/8.1/8.1-64/10/10-64/11
• PC or laptop with a free USB Type-A port

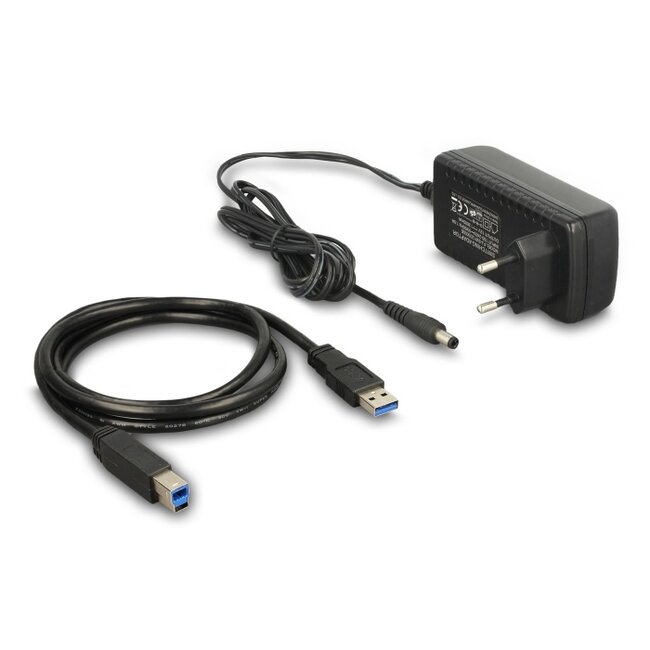

Package content
• Dual Docking Station
• USB 5 Gbps cable
• External power supply 12 V / 3 A
• User manual
