This HDD / SSD docking station by Delock enables an external connection of up to five 2.5″ SATA HDDs / SSDs through the USB interface, as well as the simple exchange of the drives by Hot Swap. This solution does not requires an external enclosure since the HDD / SSD will be plugged into the docking station directly.

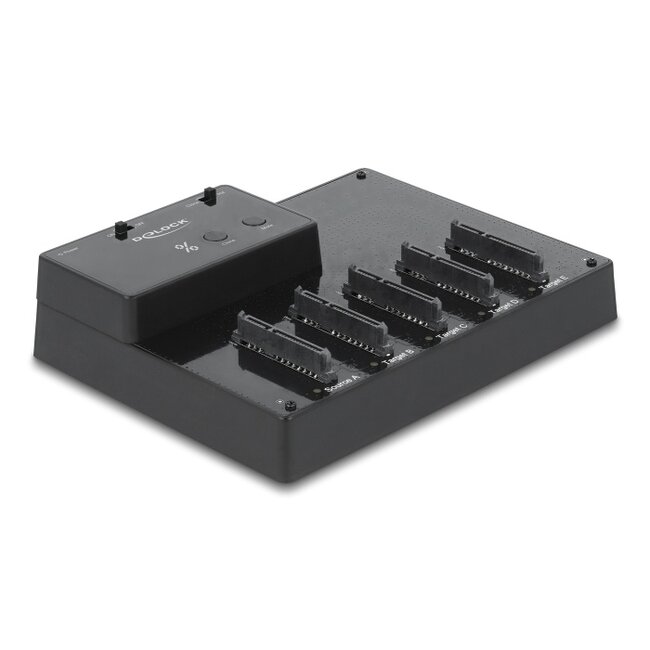

Five ports for 2.5″ HDD / SSD
Up to five HDDs or SSDs can be inserted and accessed simultaneously.

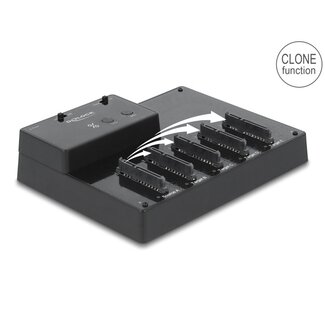

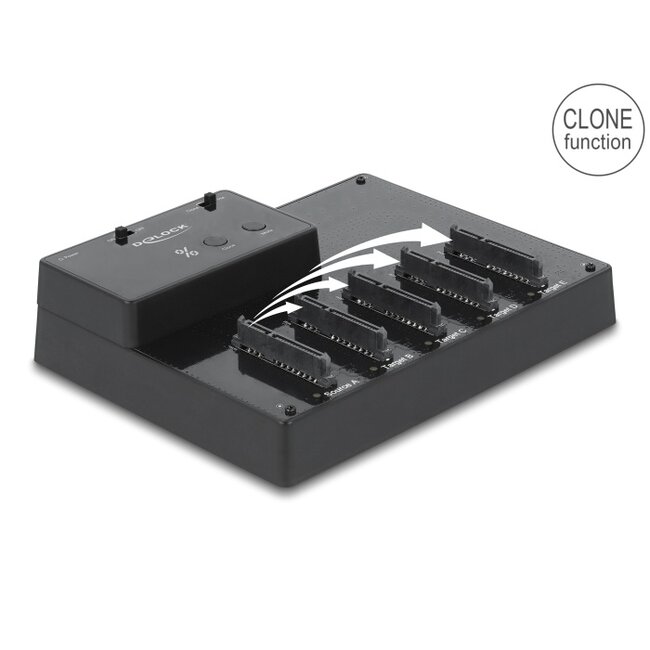

Clone function 1 to 4
The clone function enables to copy the content of one HDD / SSD to one or more (up to four) others without using a PC.
USB connection and separate power supply
Due to the USB port and the included USB cable, the docking station can easily be connected to the computer. In addition, the power supply included in the delivery content ensures a power supply for the used storage devices.
Accessory

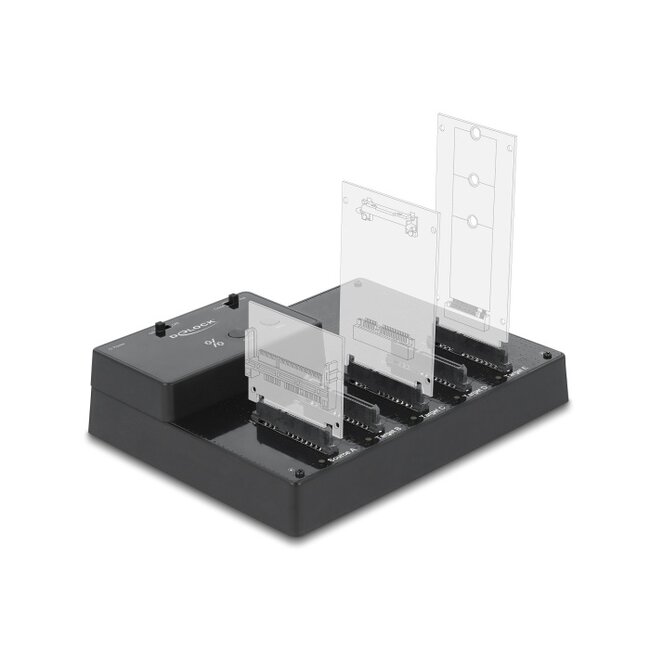

By the help of the optional accessory it is also possible to connect mSATA, M.2 (key B – SATA) or CFast memories to the Delock docking and clone station.
• Connectors:
5 x SATA 6 Gb/s 22 pin receptacle

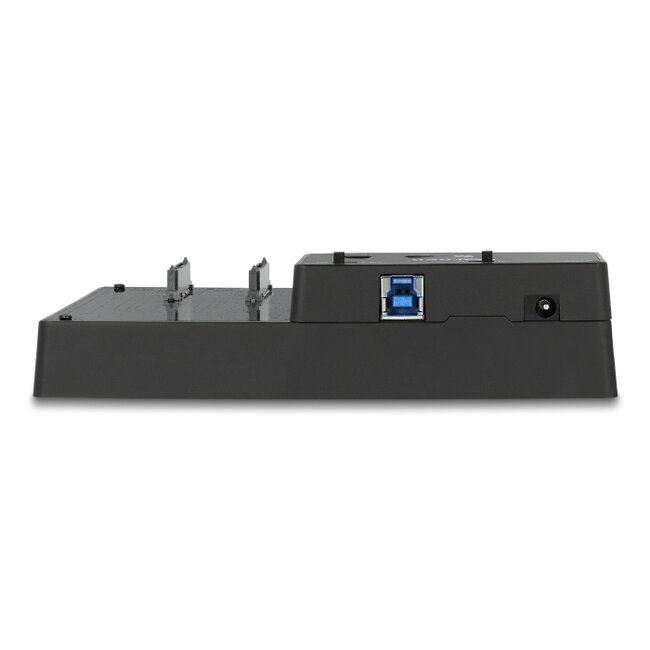

1 x USB 5 Gbps Type-B female
1 x DC jack
• Chipset: JMicron JMS578, JMB391
• Function key:
1 x Clone button
1 x Mute button
1 x On / Off switch
1 x switch for mode
• Suitable for 2.5″ SATA HDD / SSD
• Suitable for all SATA HDDs / SSDs up to SATA 6 Gb/s
• Data transfer rate up to 5 Gbps
• 6 x LED indicator
• LED indicator for power, access and copy status
• Bootable
• Dimensions (LxWxH): ca. 169 x 125 x 37 mm
• Hot Swap, Plug & Play
Power supply specification
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 1.5 A
• Output: 12 V / 4 A
• Ground outside, plus inside
• Dimensions:
inside: ø ca. 2.1 mm
outside: ø ca. 5.5 mm
length: ca. 10 mm
• Linux Kernel 3.3 or above
• Mac OS 10.14.6 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64
• PC or laptop with a free USB Type-A port

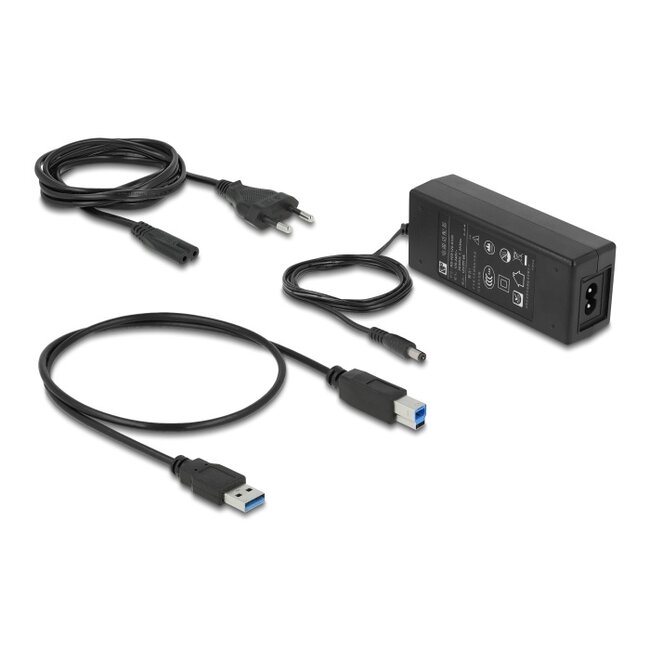

Package content
• Docking station
• 1 x cable USB 5 Gbps A male to USB 5 Gbps B male, length ca. 75 cm
• External power supply
• User manual
