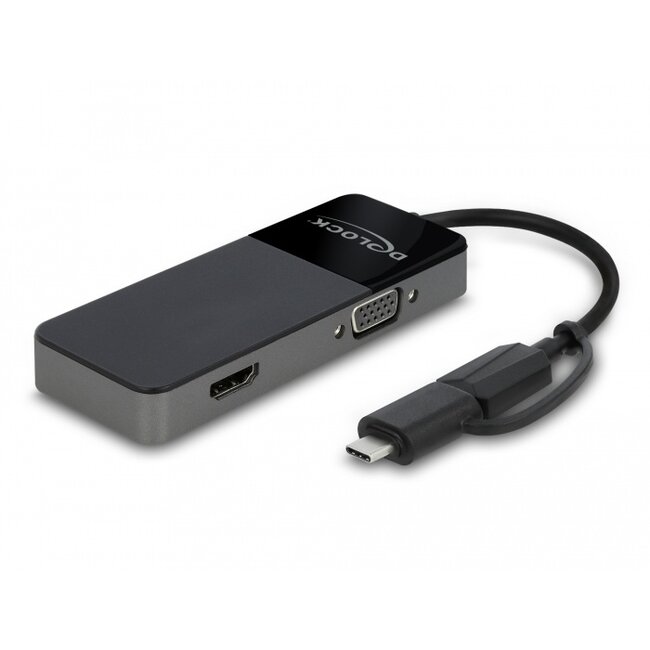

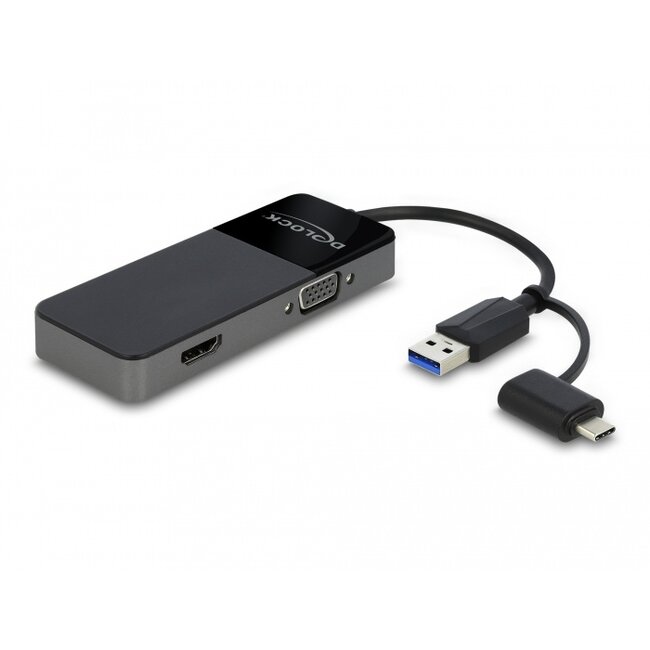

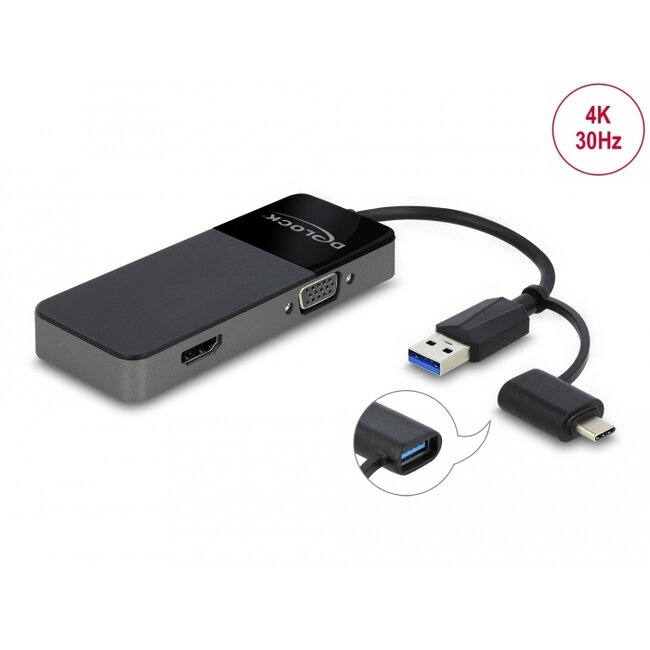

This adapter by Delock enables the connection of an additional HDMI and VGA monitor, projector etc. to a PC or laptop via USB Type-A connector. There is no DisplayPort Alternate Mode support required, this allows the operation on older computers. The adapter attached to the cable also allows connection to the USB Type-C™ port. Two monitors can be operated simultaneously, e.g. to extend the desktop.
UHD and Full HD resolution
At the HDMI port a resolution up to 4K 30 Hz is possible, at the VGA port up to 1080p at 60 Hz. This also applies if both video outputs are operated simultaneously.
Mirror and extend
If only one additional video output is used, the desktop can optionally be extended or mirrored. If both video outputs are used additionally, both can be extended, or one monitor can be extended and the other mirrored.
• Connectors:
On device:
1 x SuperSpeed USB 5 Gbps (USB 3.2 Gen 1) Type-A male
1 x HDMI-A female
1 x VGA female
On adapter:
1 x SuperSpeed USB 5 Gbps (USB 3.2 Gen 1) Type-A female
1 x SuperSpeed USB 5 Gbps (USB 3.2 Gen 1) USB Type-C™ male
• Chipset: Silicon Motion
• Resolution:
HDMI up to 3840 x 2160 @ 30 Hz
(depending on the system and the connected hardware)
VGA up to 1920 x 1080 @ 60 Hz
(depending on the system and the connected hardware)
• Supports HDCP 1.4
• Downwards compatible to USB 2.0
• Transmission of audio and video signals
• Features: mirror and extend
• Cable length without connectors: ca. 12 cm
• Colour: black
• Mac OS 10.12.6 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64/11
• PC or laptop with a free USB Type-A port or
• PC or laptop with a free USB Type-C™ port
Package content
• USB to HDMI + VGA adapter
• Adapter USB Type-A female to USB-C™ male
• User manual
