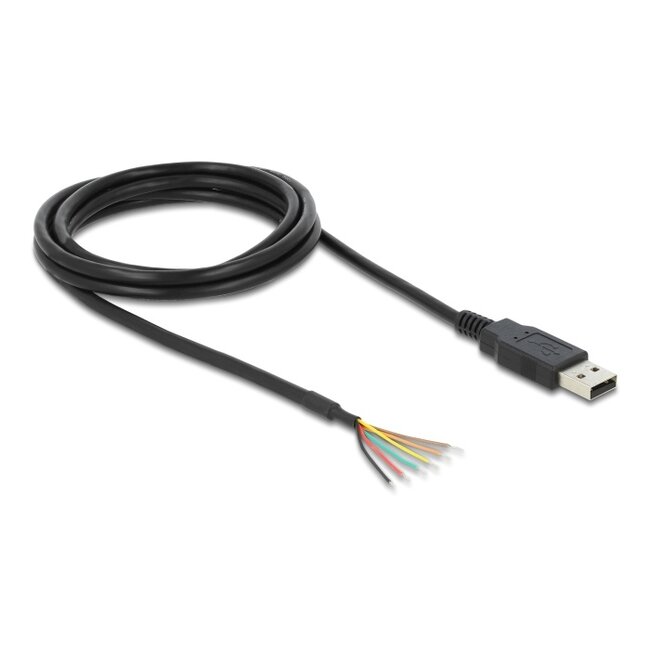

The USB 2.0 UART converter by Delock expands the computer by four serial RS-232 LVTTL data lines and an additional output voltage. The converter is suitable for programming, I/O control and data transfer.
Specification• Connectors:
1 x USB 2.0 Type-A male
4 x LVTTL 3.3 V open wires
1 x 3,3 V open wires
• Chipset: FTDI FT232RL
• Compatible to UHCI / OHCI / EHCI controller

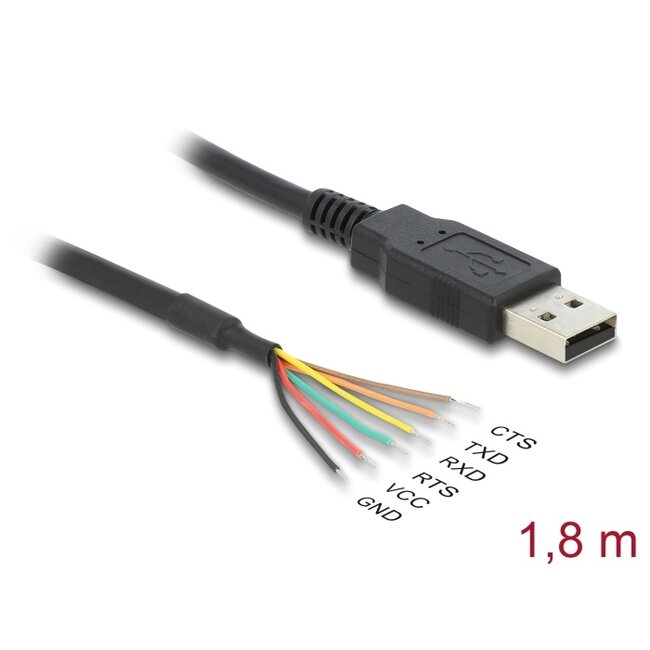

• Signals: CTS, RTS, RXD, TXD, GND, VCC
• Data transfer rate up to 3 Mbps
• Databits: 7 or 8
• Stop bits: 1 or 2
• Parity: none, space, even, odd, mark
• Flow control: none, hardware RTS / CTS, software XON / XOFF
• FIFO:
128 Byte - RX
256 Byte - TX
• Cable gauge: 26 AWG
• Cable length incl. connectors: ca. 1.8 m
• Operating temperature: -20 °C ~ 80 °C
• Linux Kernel 2.6 or above
• Mac OS 10.5 or above
• Windows CE 4.2/5.0/6.0
• Windows XP/XP-64/Vista/Vista-64/7/7-64/8.1/8.1-64/10/10-64/11
• PC or laptop with a free USB Type-A port
Package content
• USB 2.0 UART converter
• User manual
