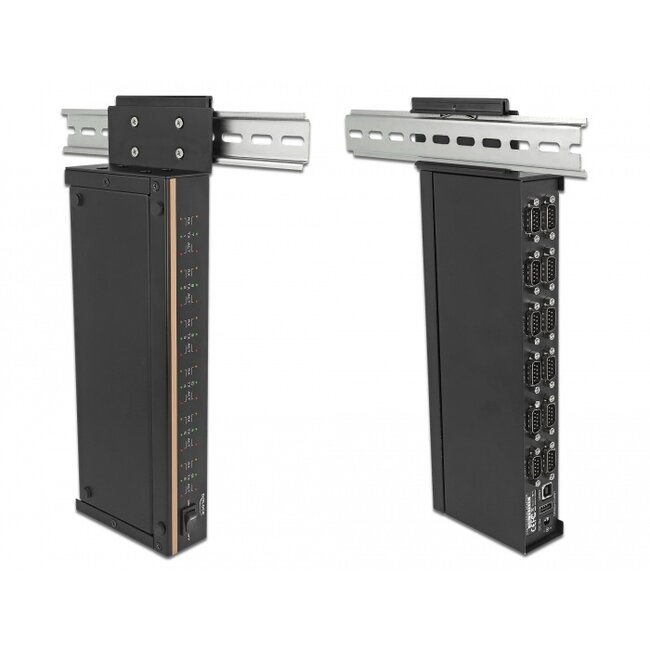

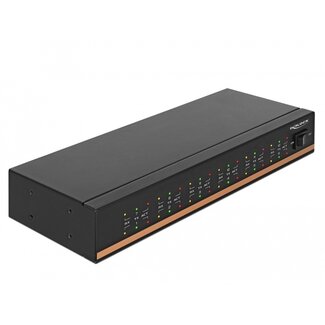

This compact RS-232 hub with High Speed USB 2.0 to 12 x RS-232 serial by Delock supports connections for printers, controllers, measuring devices etc. Up to four of these hubs can be cascaded (series connection), thus up to 48 RS-232 ports are provided on one USB 2.0 port. The LEDs on each single port indicate the current RS-232 status. A Windows application supports centralized control of the serial COM ports. The hub is suitable as a desktop device and for wall or DIN rail mounting.
Specification• Connectors:
1 x USB 2.0 Type-A female (cascading)
1 x USB 2.0 Type-B female
12 x serial RS-232 DB9 male with nuts
1 x 5 V DC jack 5.5 x 2.1 mm
• Chipset: FTDI FT231XS
• RS-232 serial:
Data transfer rate up to 12 x 460.8 Kbps
Databits: 7, 8
Stop bits: 1, 2
Parity: even, odd, none, mark, space
Buffer: FIFO 1 KB

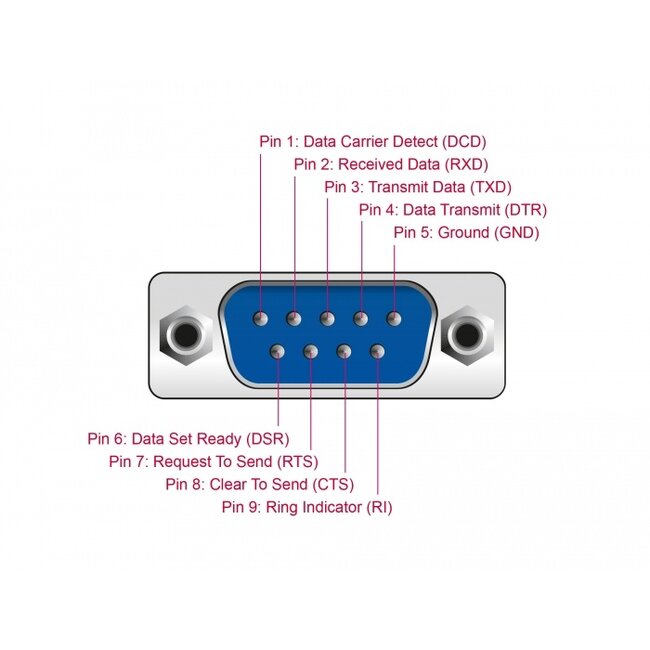

Signals: DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI
• Plug & Play
• ESD Protection (electrostatic discharge):
±15 kV ESD IEC 61000-4-2 air discharge
±8 kV ESD IEC 61000-4-2 contact discharge
• Surge Protection: 250 W peak pulse (TVS)

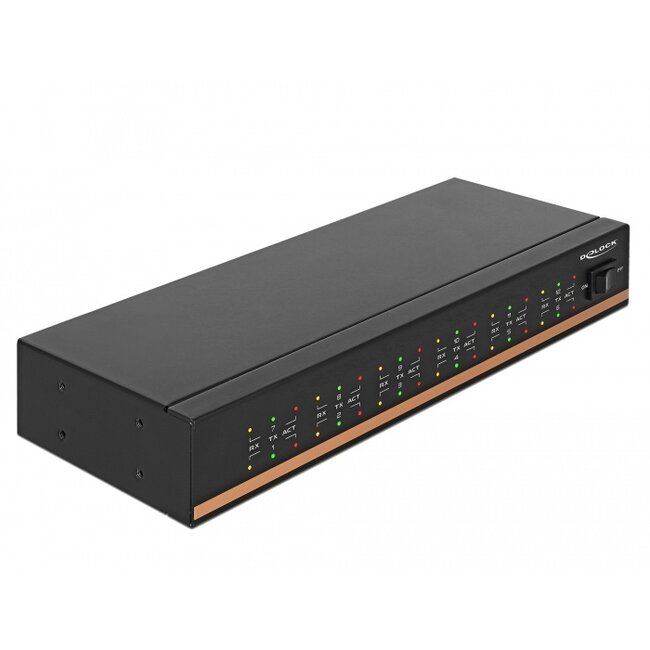

• Status LEDs: TX, RX, ACT
• Operating voltage: 5 V DC
• Housing: metal
• Colour: black
• Operating temperature: -40 °C ~ 85 °C
• Relative humidity: 0 - 80 % (non condensing)
• Weight: ca. 1033 g
• Dimensions (LxWxH): ca. 268 x 102 x 40 mm
Power supply specification
• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.2 A
• Output: 5 V / 1 A
• Ground outside, plus inside
• Cable length: ca. 1.2 m
• Dimensions:
inside: ø ca. 2.1 mm
outside: ø ca. 5.5 mm
length: ca. 9.3 mm
• Linux Kernel 4.1 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64/11
• PC or laptop with a free USB Type-A port

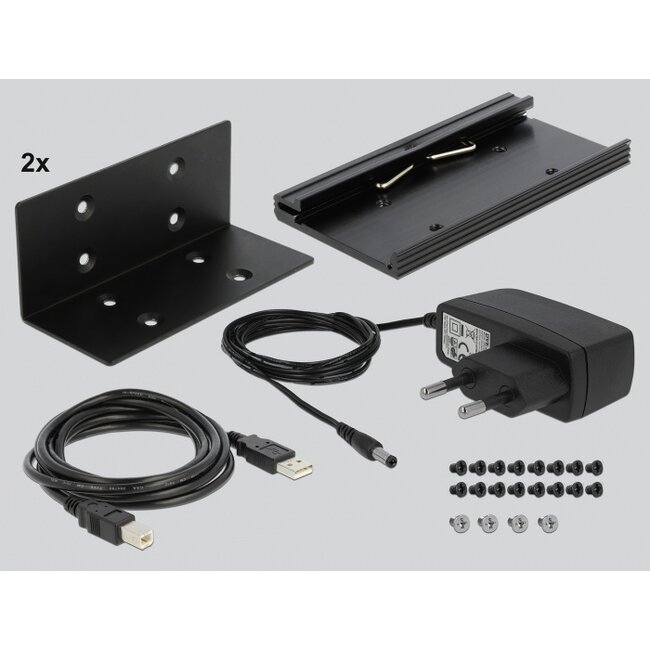

Package content
• RS-232 hub
• Cable USB Type-A male to Type-B male, length ca. 1.8 m
• Wall mounting brackets
• Mounting for 35 mm DIN rail
• 12 x mounting screws
• Power supply
• User manual
